Rear

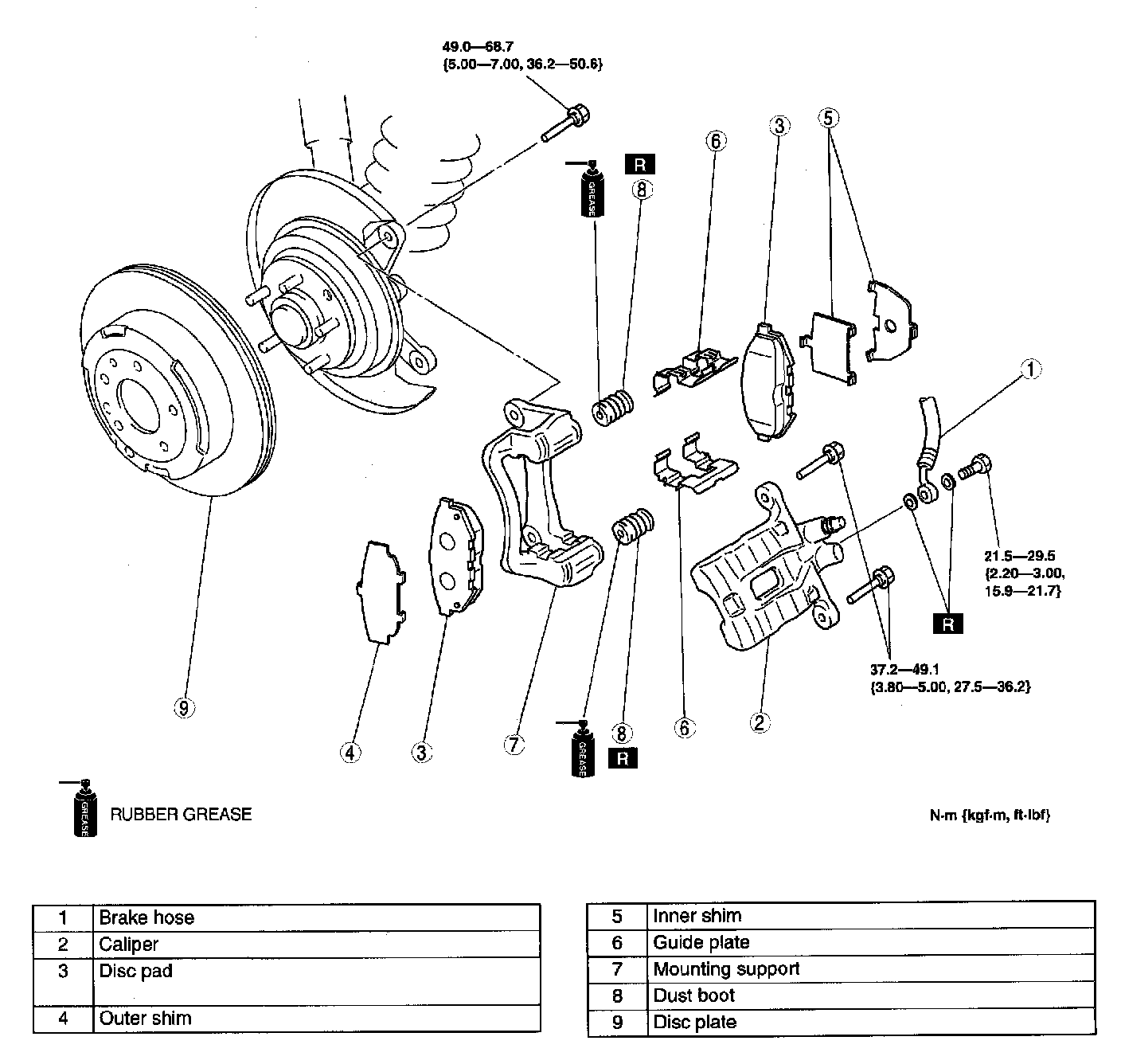

REAR BRAKE (DISC) REMOVAL/INSTALLATION
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, do the following.
1 Depress the brake pedal a few times. Then verify that the brakes do not drag.
2 Inspect the pedal-to-floor clearance.

3 Inspect the parking brake lever stroke.

Disc Pad Installation Note

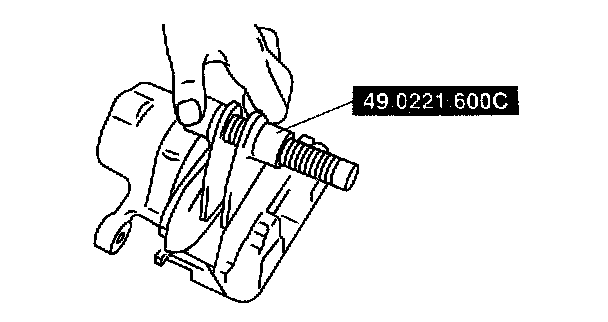

1. Push the piston fully inward using the SST.

2. Install the disc pad.
