Hydraulic System Junction Block: Service and Repair

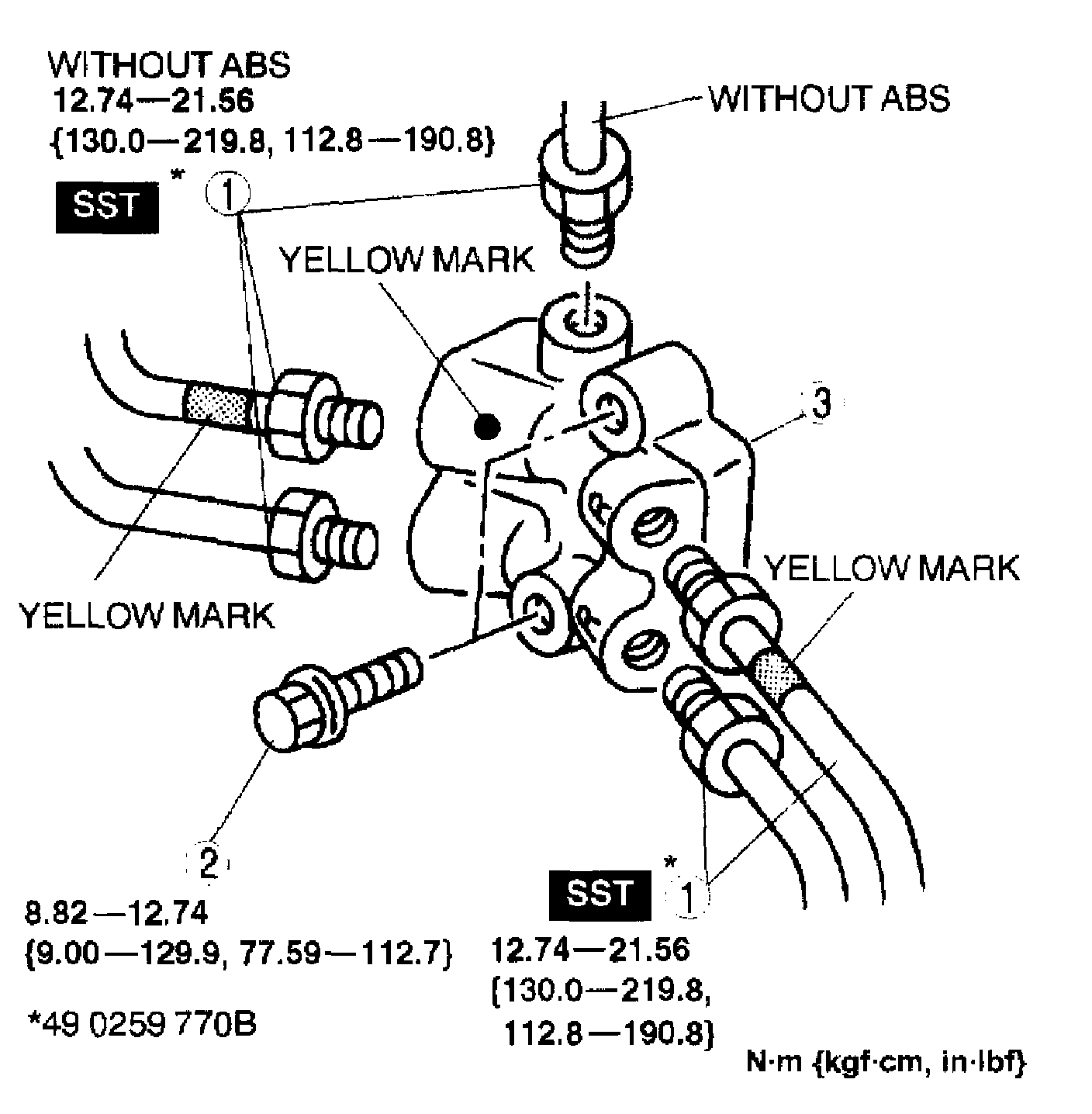

DUAL PROPORTIONING VALVE (WITHOUT ABS) AND BRAKE PIPE JOINT (WITH ABS) REPLACEMENT
1. Remove the dynamic chamber.

Part 1:

Part 2:

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

Dual Proportioning Valve (Without ABS) or Brake Pine Joint With ABS] Installation Note

1. Install the dual proportioning valve so that the R mark faces the left side of the vehicle.
