Variable Tumble Control System

Variable Tumble Control System (VTCS) Operation Inspection

1. Connect the WDS or equivalent to the DLC-2
2. Access ECT PID
3. Verify ECT PID is 65 °C {149 °F} or less.
4. Start the engine.




5. Verify that the rod of VTCS shutter valve actuator is pulled
- If the rod is not pulled, inspect the following
- VTCS shutter valve actuator
- VTCS check valve (one-way)
- Vacuum hose
- VTCS solenoid valve
- Wiring harness and connectors (Main relay - VTCS solenoid valve - PCM terminal 2N)

6. Access RPM PID

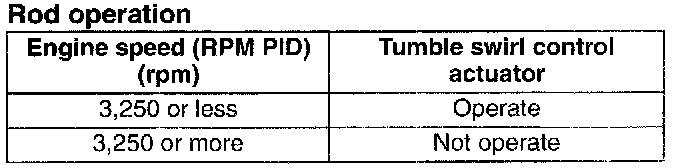

7. Inspect the rod operation under the following condition
- If the rod operation is not as specified, inspect the following
- VTCS shutter valve actuator
- Delay valve
- Vacuum chamber
- Vacuum hose
- VTCS solenoid valve
- Wiring harness and connectors (Main relay - VTCS solenoid valve - PCM terminal 2N)
