Overhaul

FRONT BUMPER DISASSEMBLY/ASSEMBLY

1. To disassemble the front bumper, remove the following parts:
1. Front fog lights (Vehicles with the front fog lights)
2. Headlight cleaner hose (Vehicles with the headlight cleaner)
3. Headlight cleaner nozzles (Vehicles with the headlight cleaner)
4. Headlight cleaner actuator (Vehicles with the headlight cleaner)

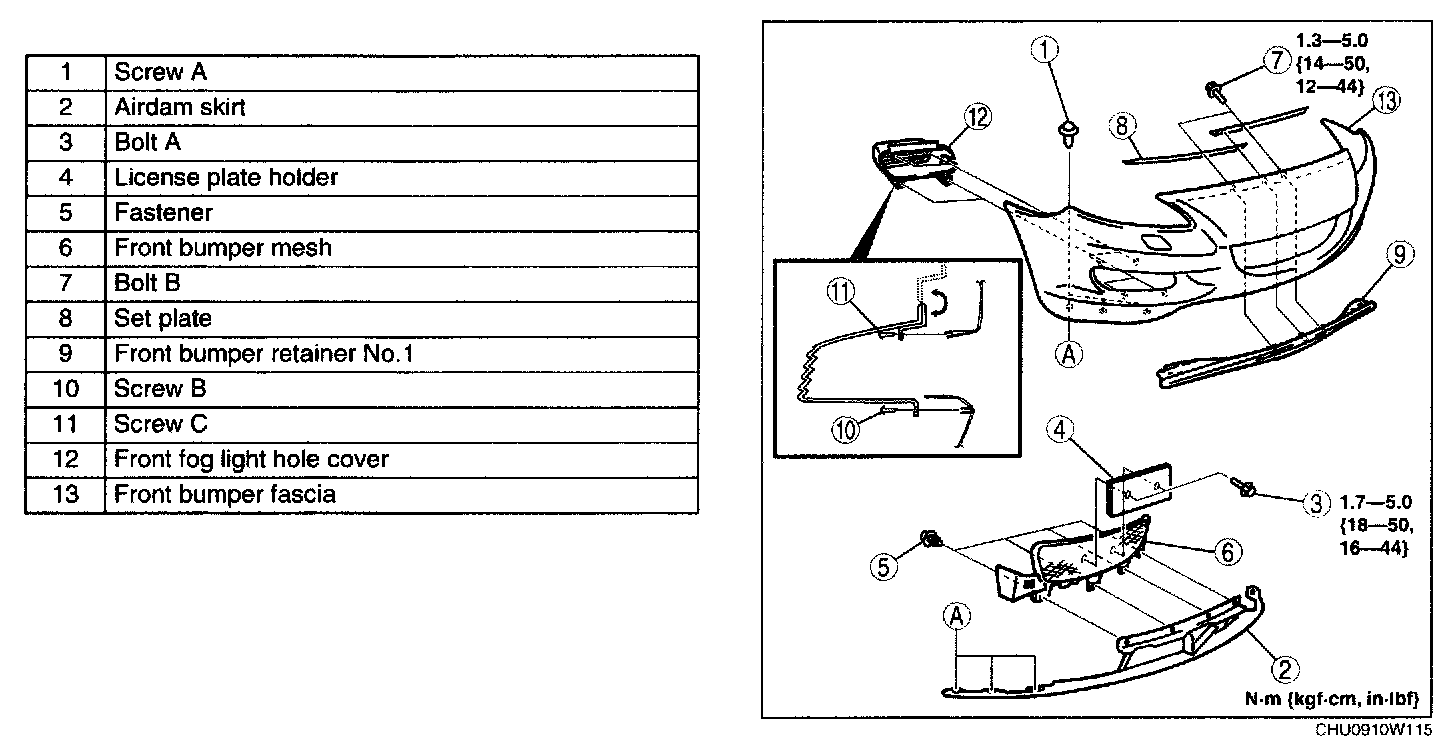

2. Disassemble in the order indicated in the table.






3. Assemble in the reverse order of disassembly.
