Power Seat Switch: Testing and Inspection

POWER SEAT SWITCH INSPECTION

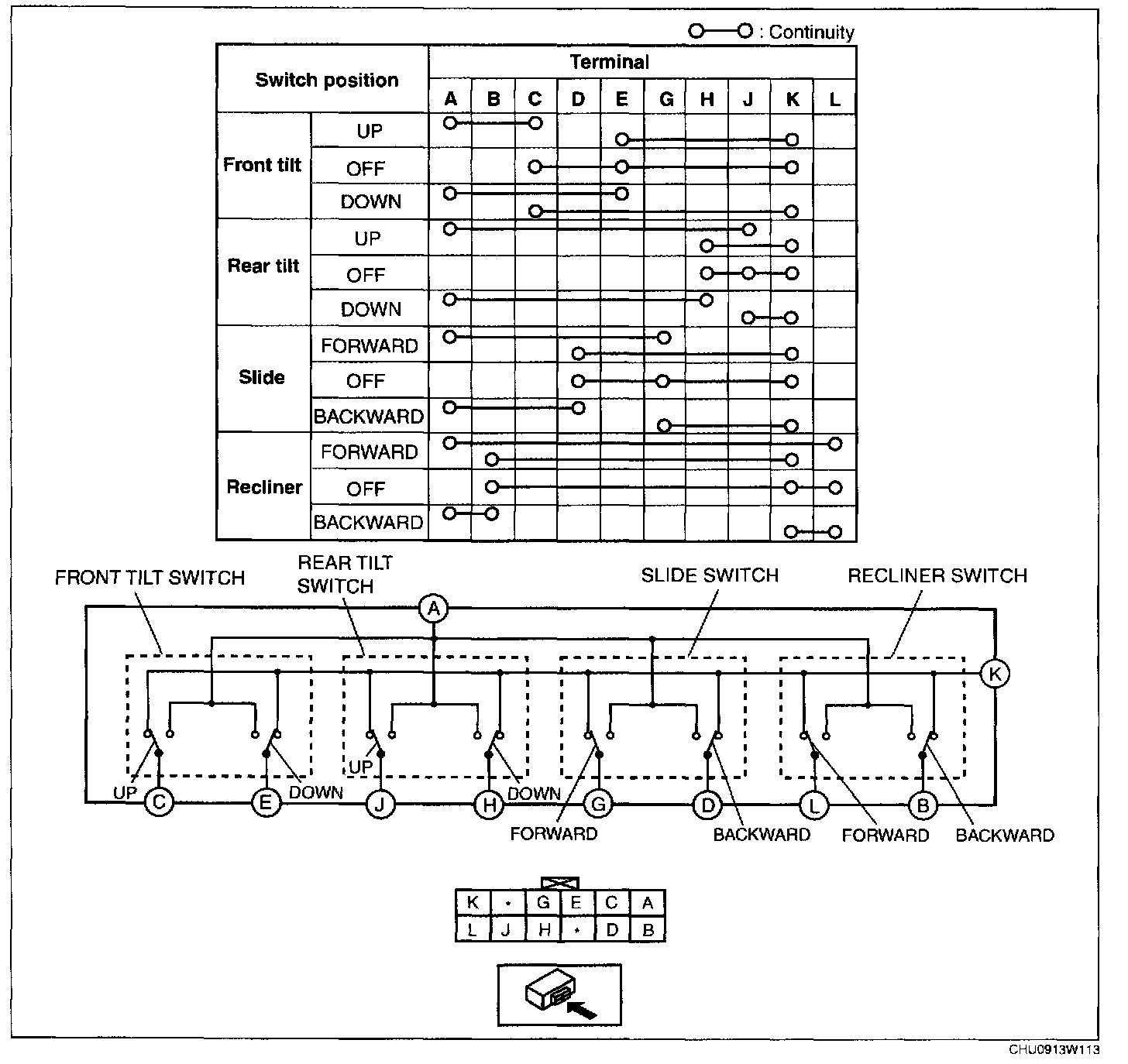

Power Seat Switch
1. Disconnect the power seat switch connector.
2. Verify that the continuity between the power seat switch terminals is as indicated in the table.
- If not as indicated in the table, replace the power seat switch.






Lumbar Support Switch
1. Disconnect the lumbar support switch connector.
2. Verify that the continuity between the lumbar support switch terminals is as indicated in the table.
- If not as indicated in the table, replace the lumbar support switch.
