Control Module Pinout Values - ABS
ABS HU/CM INSPECTION 1.
Disconnect the ABS HU/CM connector.
2.
Connect the negative battery cable.
3.

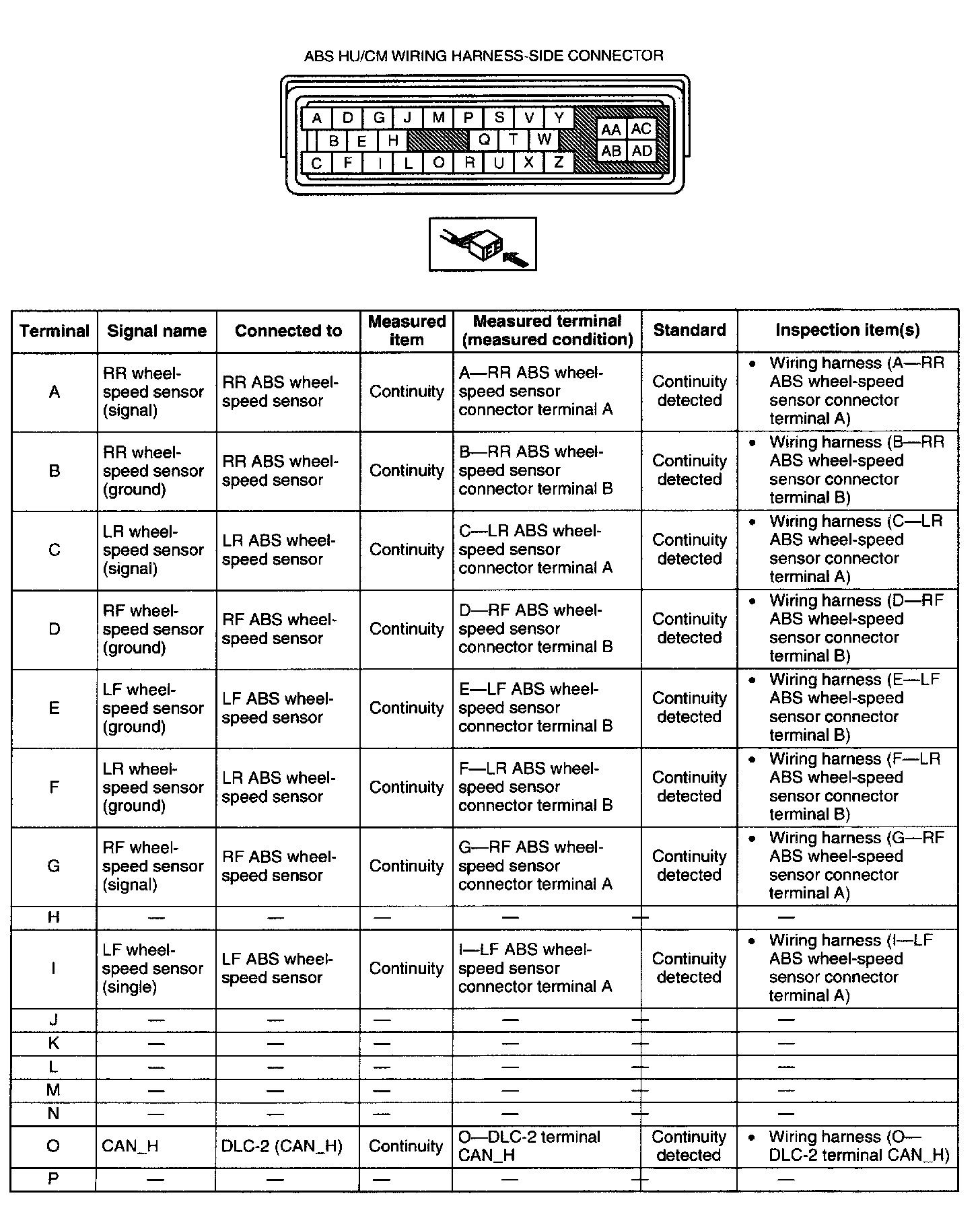

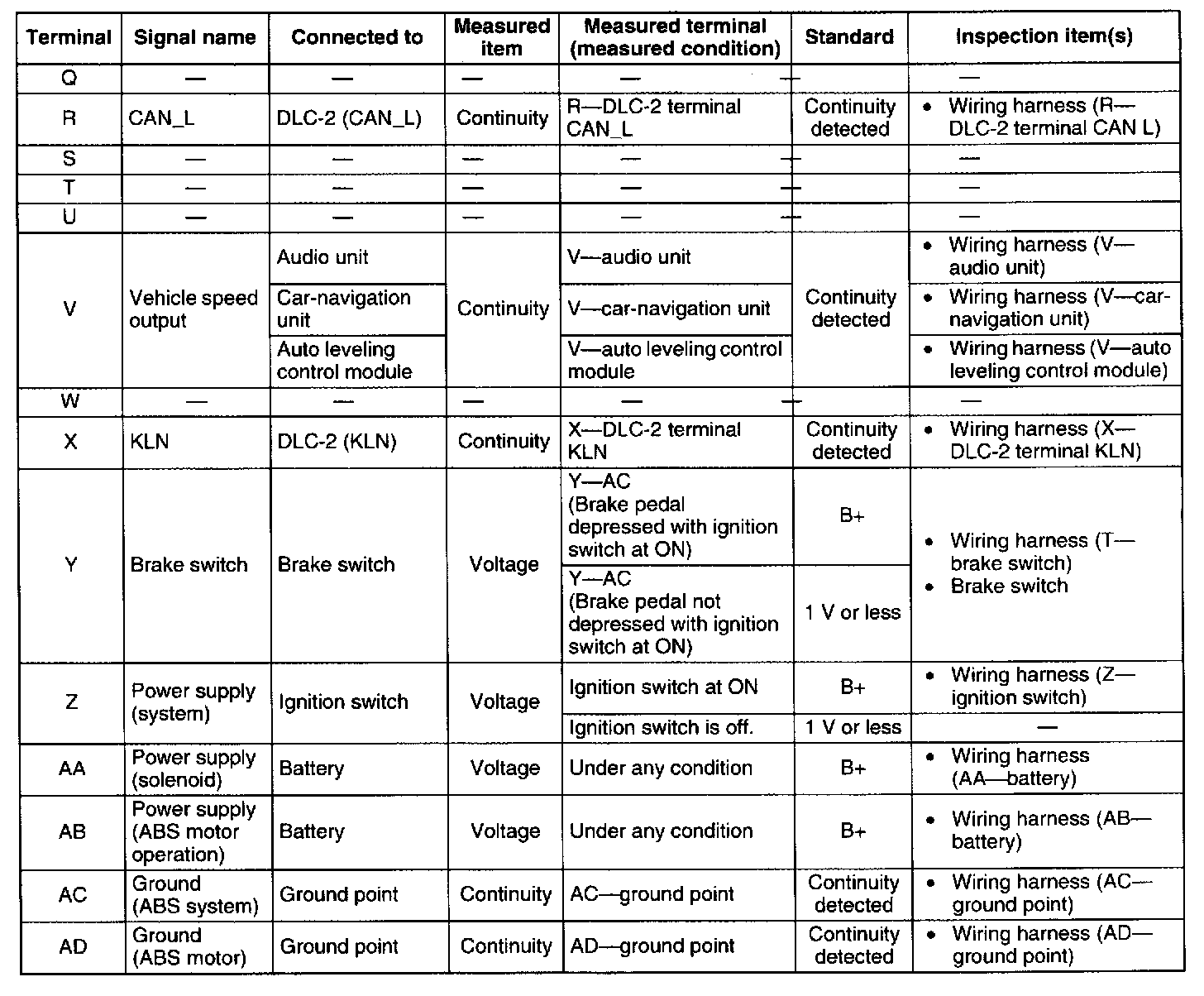

Attach the tester lead to the ABS HU/CM harness side connector, then inspect voltage, continuity or resistance according to the standard (reference value) on the table.
Part 1:
Part 2:
Standard (Reference Value)
