Control Module Pinout Values - Dynamic Stability Control
DSC HU/CM INSPECTION 1.
Disconnect the DSC HU/CM connector.
2.
Connect the negative battery cable.
3.
Attach the tester lead to the DSC HU/CM harness side connector, then inspect voltage, continuity or resistance according to the standard (reference value) on the table.

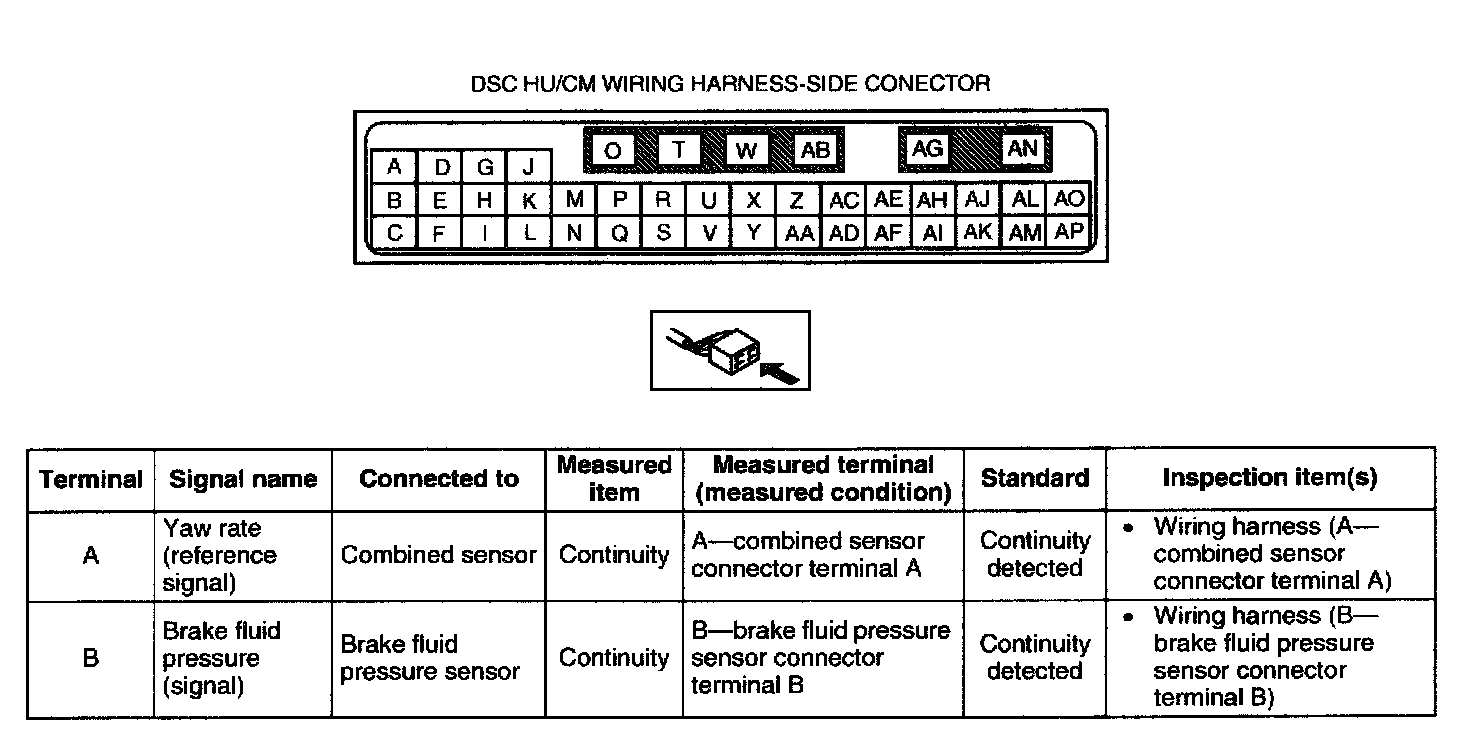

Part 1:

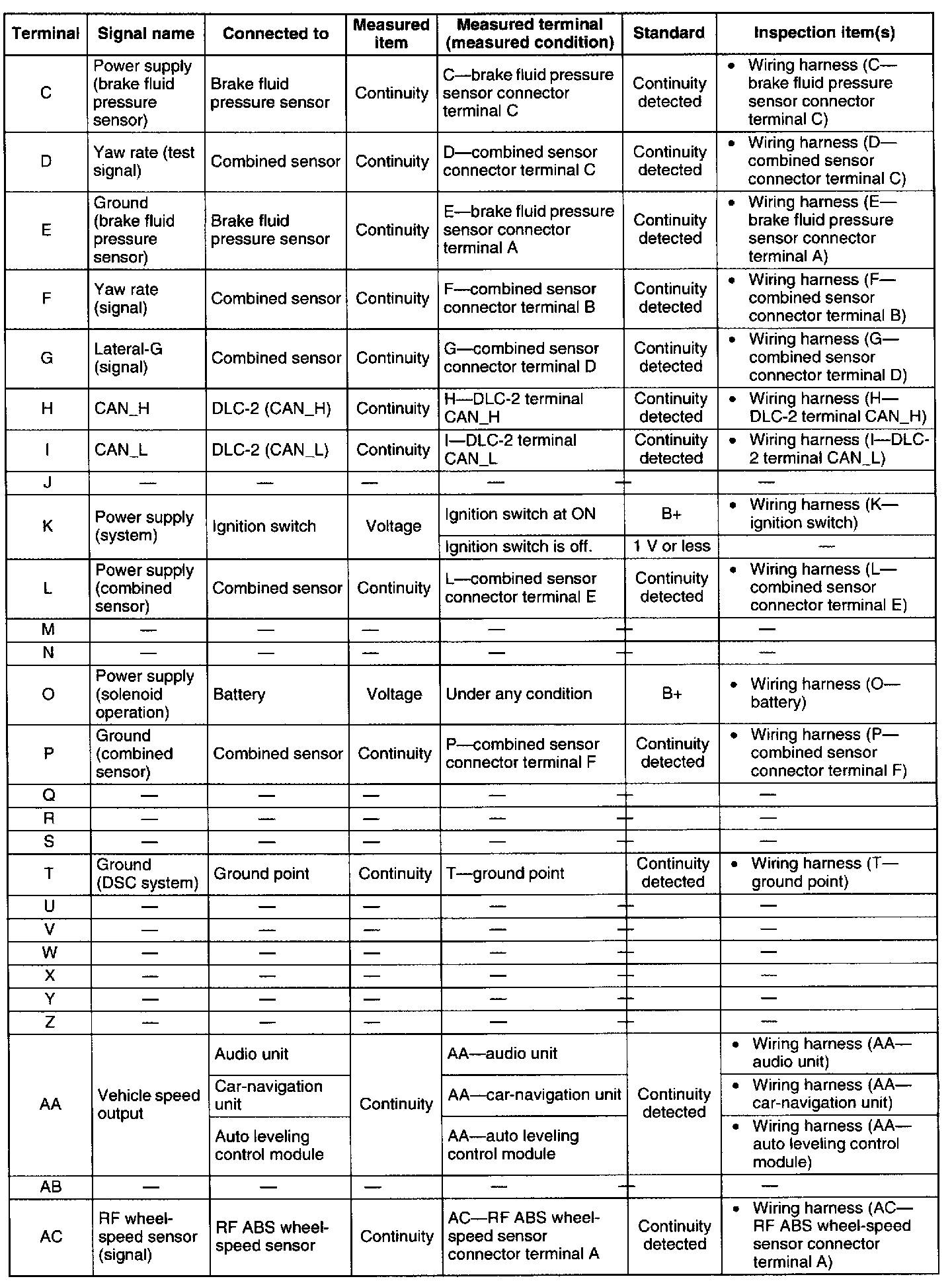

Part 2:

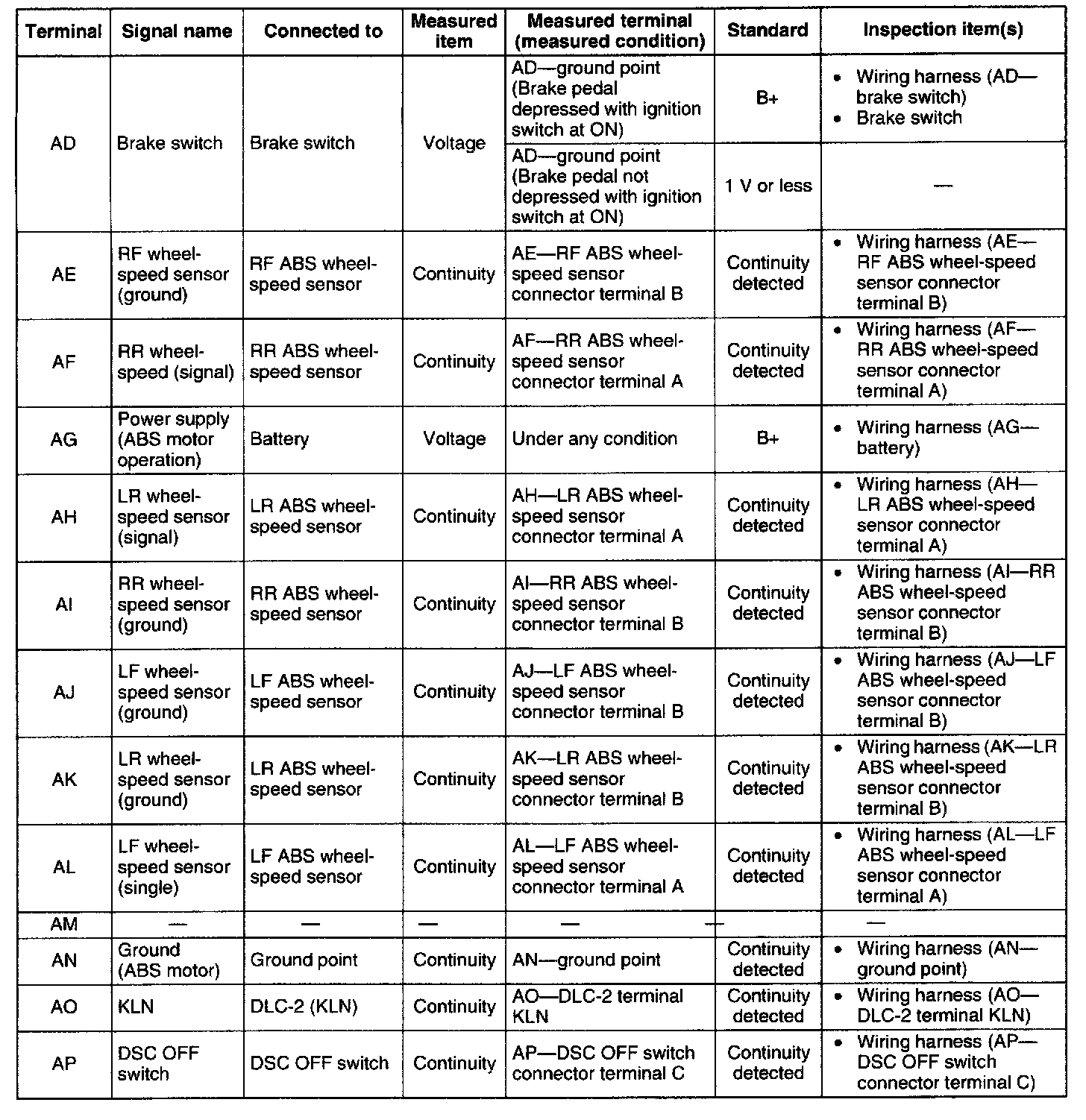

Part 3:
Standard (Reference Value)
