Radiator: Service and Repair

RADIATOR REMOVAL/INSTALLATION

Warning:
^ Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.





1. Remove the engine cover.
2. Remove the battery cover.
3. Disconnect the negative battery cable.
4. Drain the engine coolant.
5. Remove the following.
1. Splash shield
2. Under cover
3. Battery, battery box
4. Air cleaner component, air cleaner insulator
5. PCM duct
6. Position the coolant reserve tank out of the way.
7. Disconnect the ATF oil cooler hose. (AT)

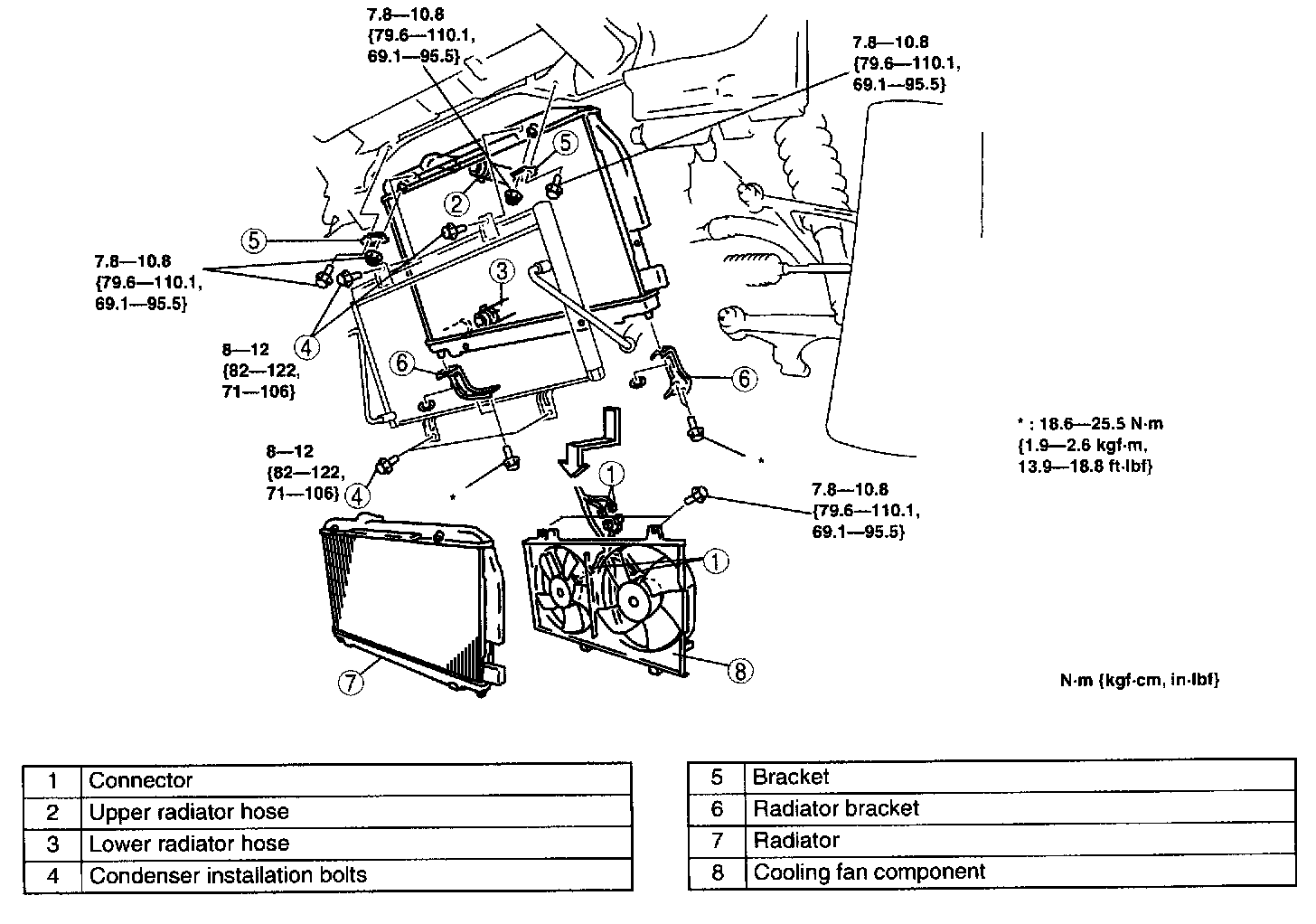

8. Remove in the order indicated in the table.
9. Install in the reverse order of removal.
10. Add engine coolant.
11. Inspect for engine coolant leakage.
