Disassembly/Assembly

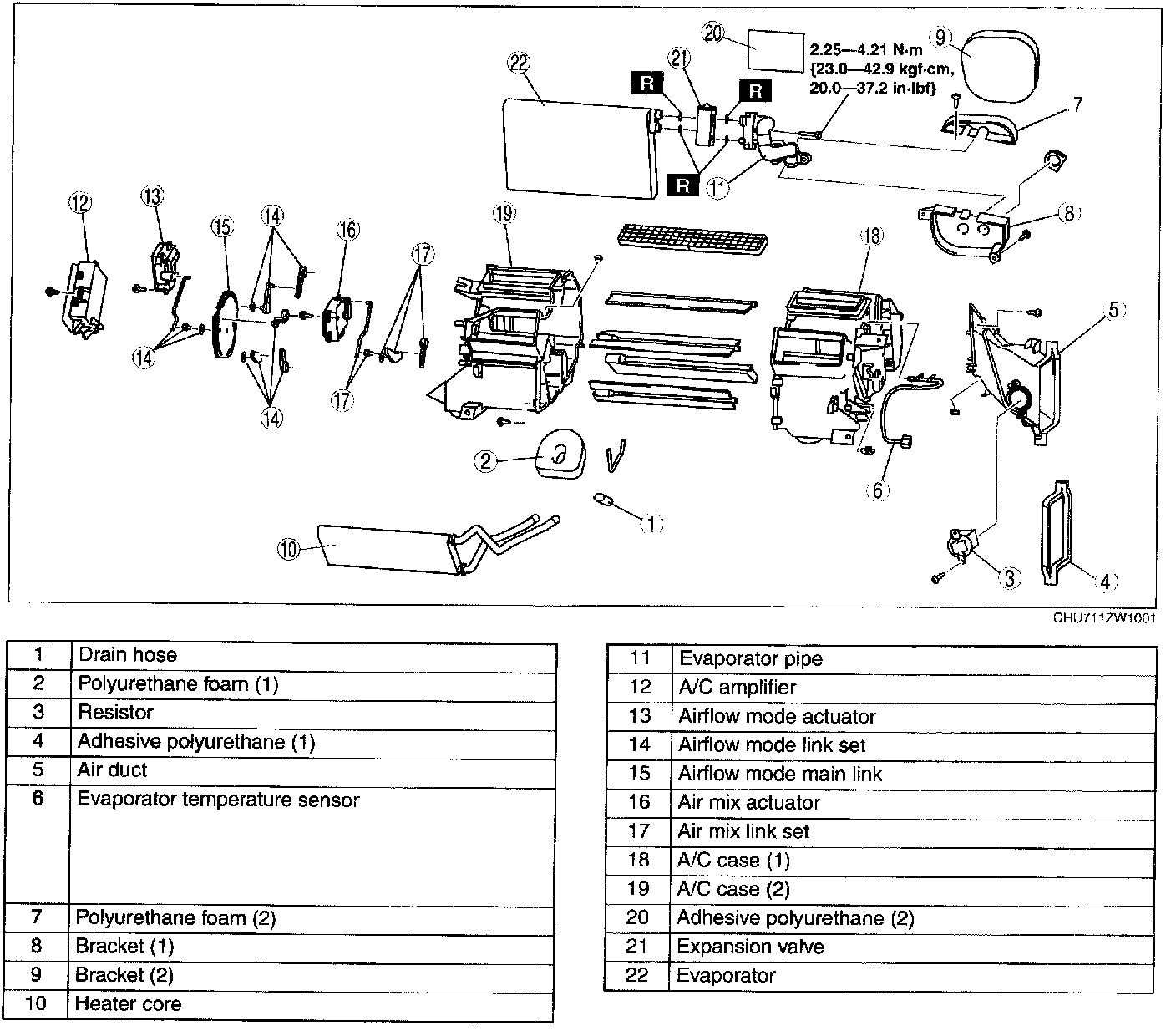

A/C UNIT DISASSEMBLY/ASSEMBLY




1. Disassemble in the order indicated in the table.

CAUTION: If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

2. Assemble in the reverse order of disassembly

Evaporator Temperature Sensor Disassembly Note
1. Mark the installation positions (2 locations) for the sensor clamps used to install the evaporator temperature sensor to the evaporator, and the position for the tip of the evaporator temperature sensor
2. Remove the evaporator temperature sensor

Evaporator Temperature Sensor Assembly Note
When evaporator is replaced




1. Assemble the evaporator temperature sensor as shown in the figure.

When evaporator is not replaced
1. Install the evaporator temperature sensor by aligning it with the positions marked prior to removal.
