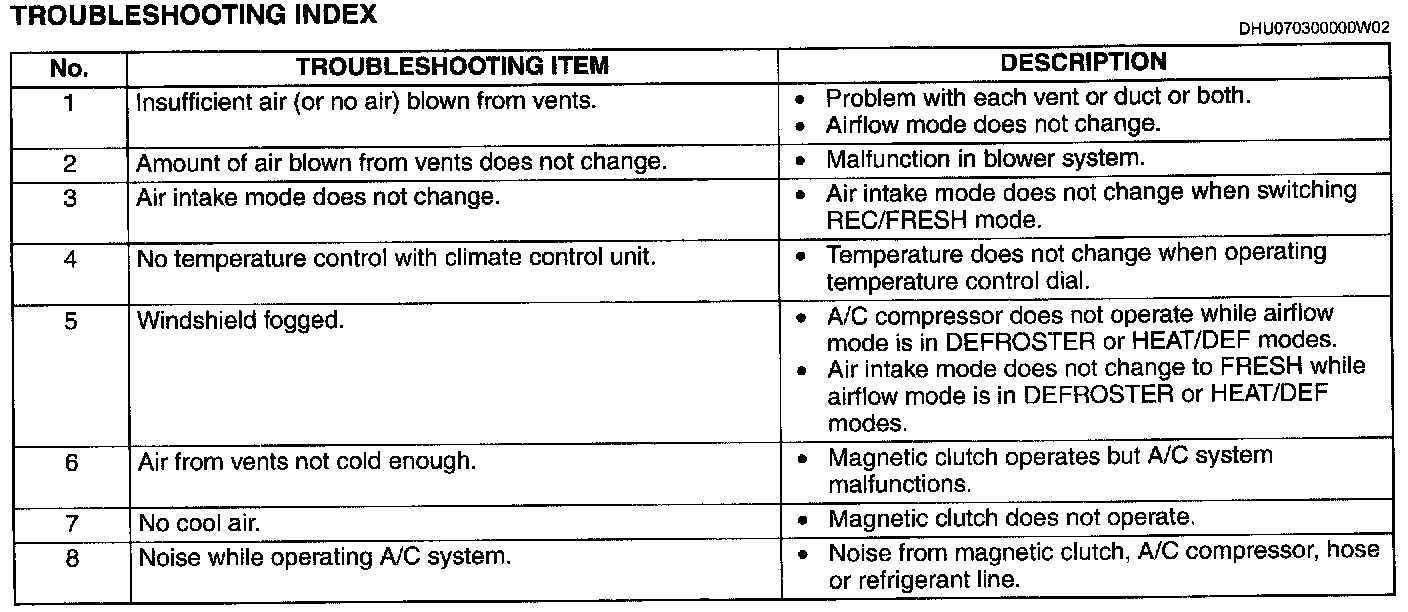

Troubleshooting Index
FOREWORDTroubleshooting Index:
-
The areas for inspection (steps) are given according to various circuit malfunctions. Use the chart to verify the symptoms of the trouble in order to diagnose the appropriate area.
