Engine Control Module: Service and Repair
PCM REMOVAL/INSTALLATION 1.
When replacing the PCM, perform the following:
-
PCM configuration
2.
Remove the battery cover.
3.

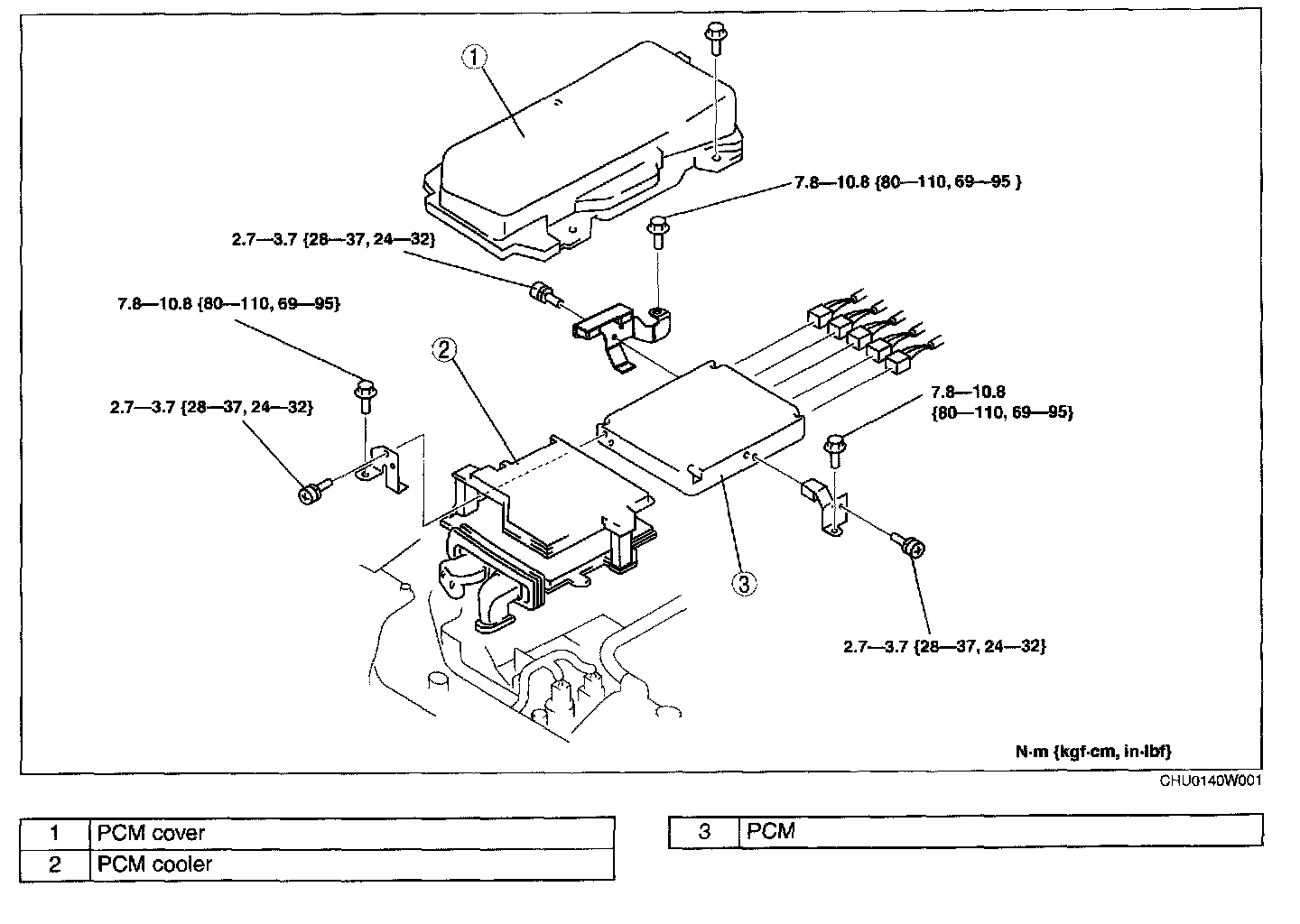

Remove in the order indicated in the table.
4.
When replacing the PCM on the vehicles with the immobilizer system, perform the following:
-
Immobilizer system component replacement/key addition and clearing
5.
Install in the reverse order of removal.
