Pinout Values and Diagnostic Parameters

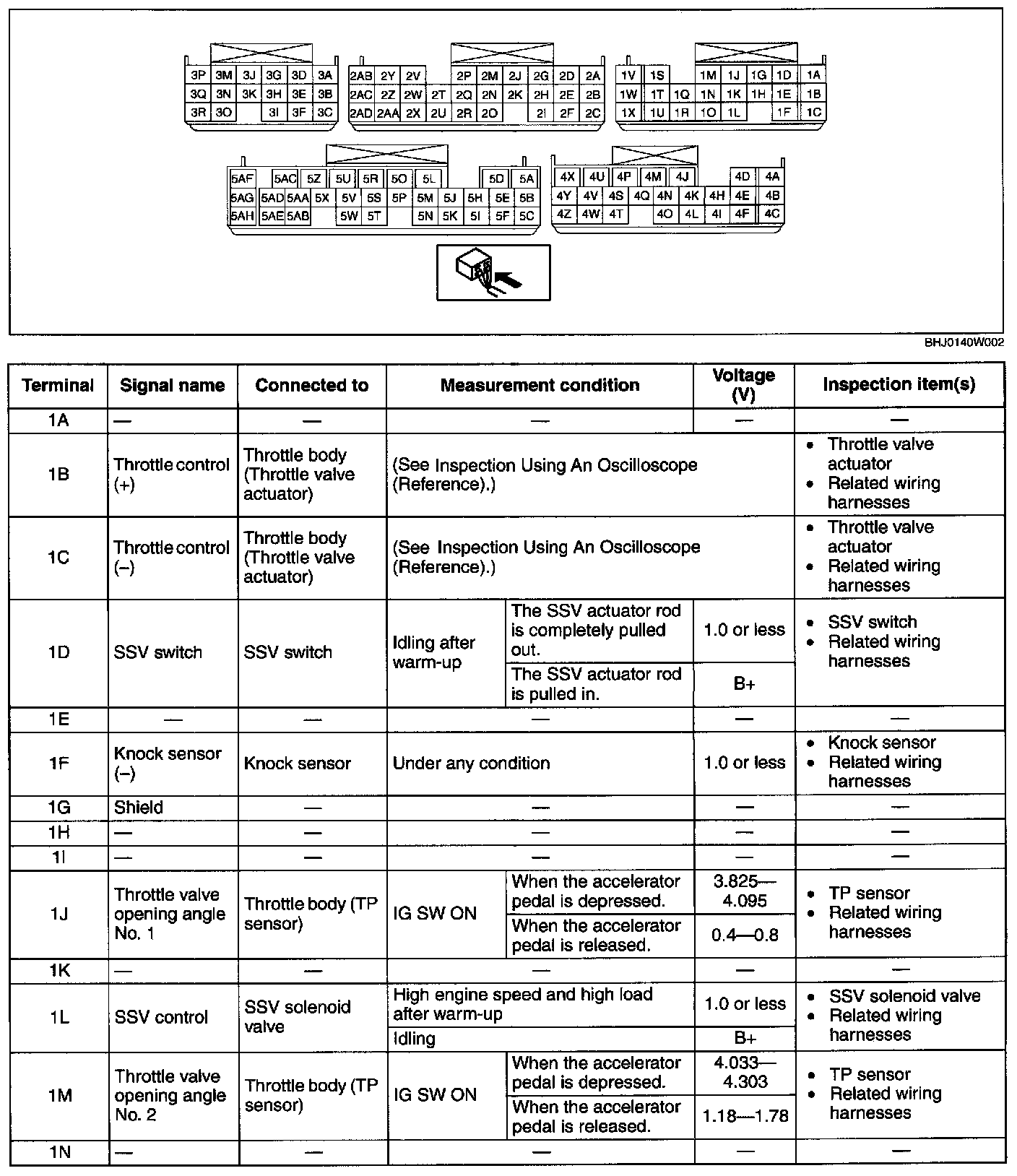

PCM Terminal Voltage Table (Reference) - Terminals (1A - 1N):

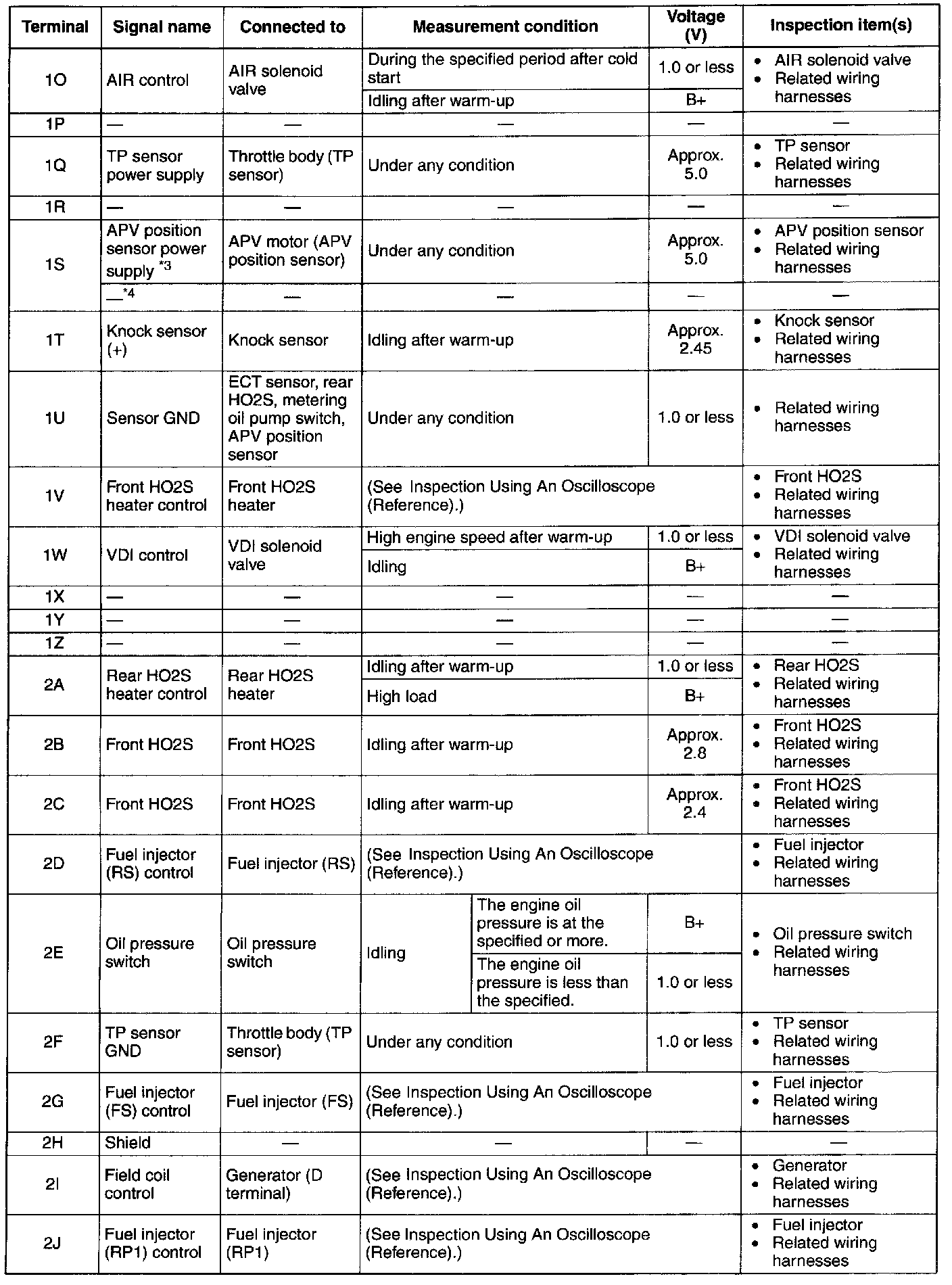

PCM Terminal Voltage Table (Reference) - Terminals (1O - 2J):

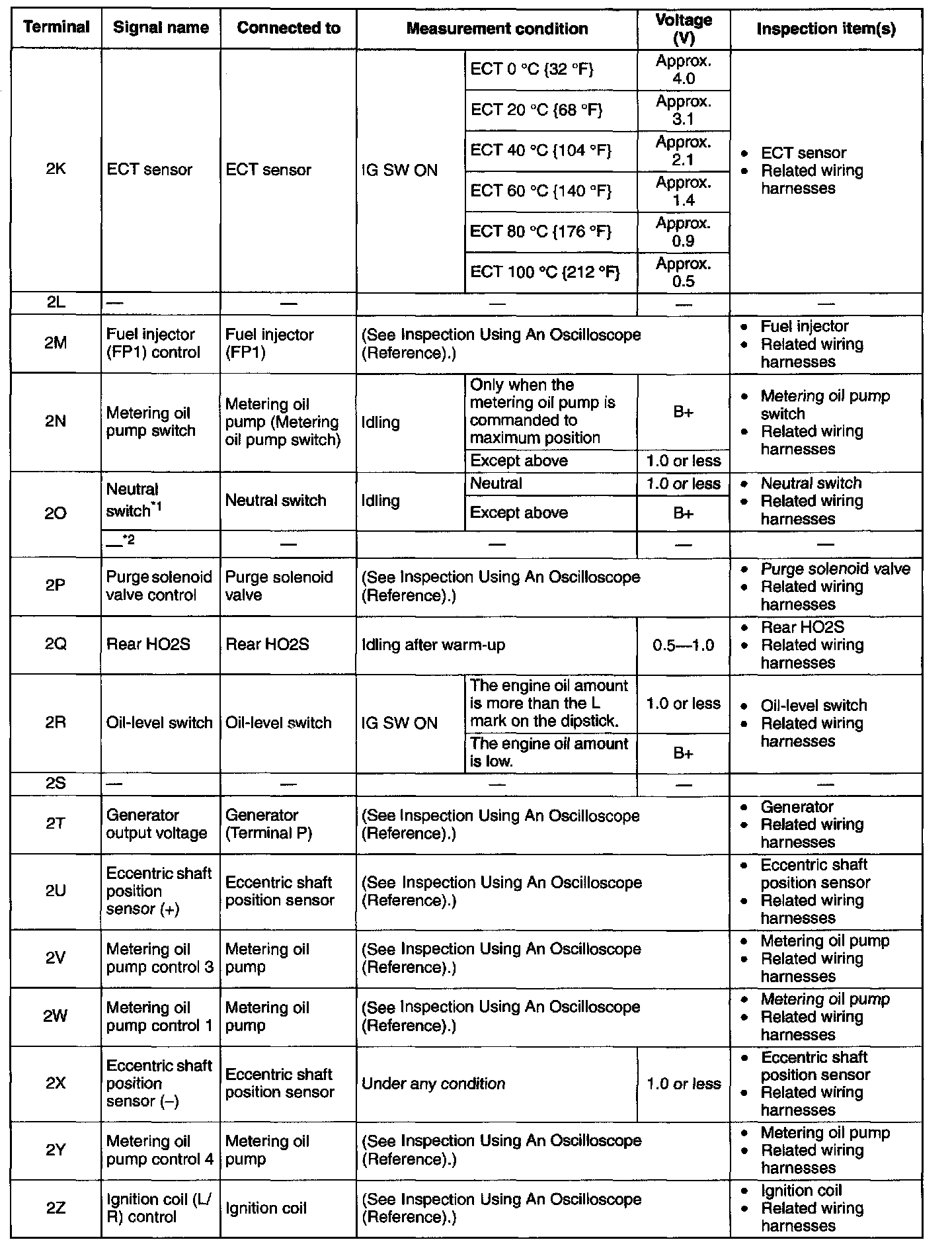

PCM Terminal Voltage Table (Reference) - Terminals (2K - 2Z):

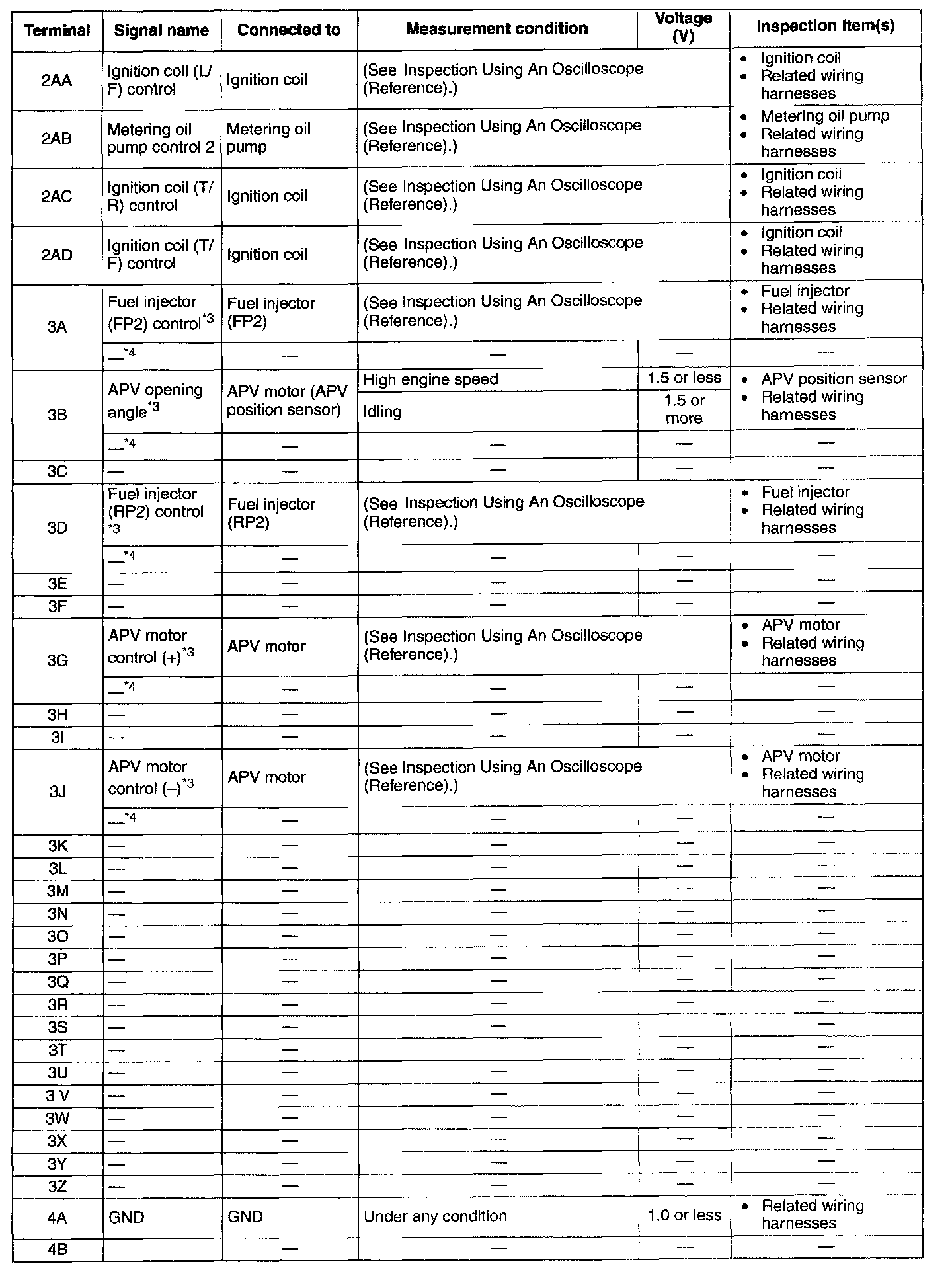

PCM Terminal Voltage Table (Reference) - Terminals (2AA - 4B):

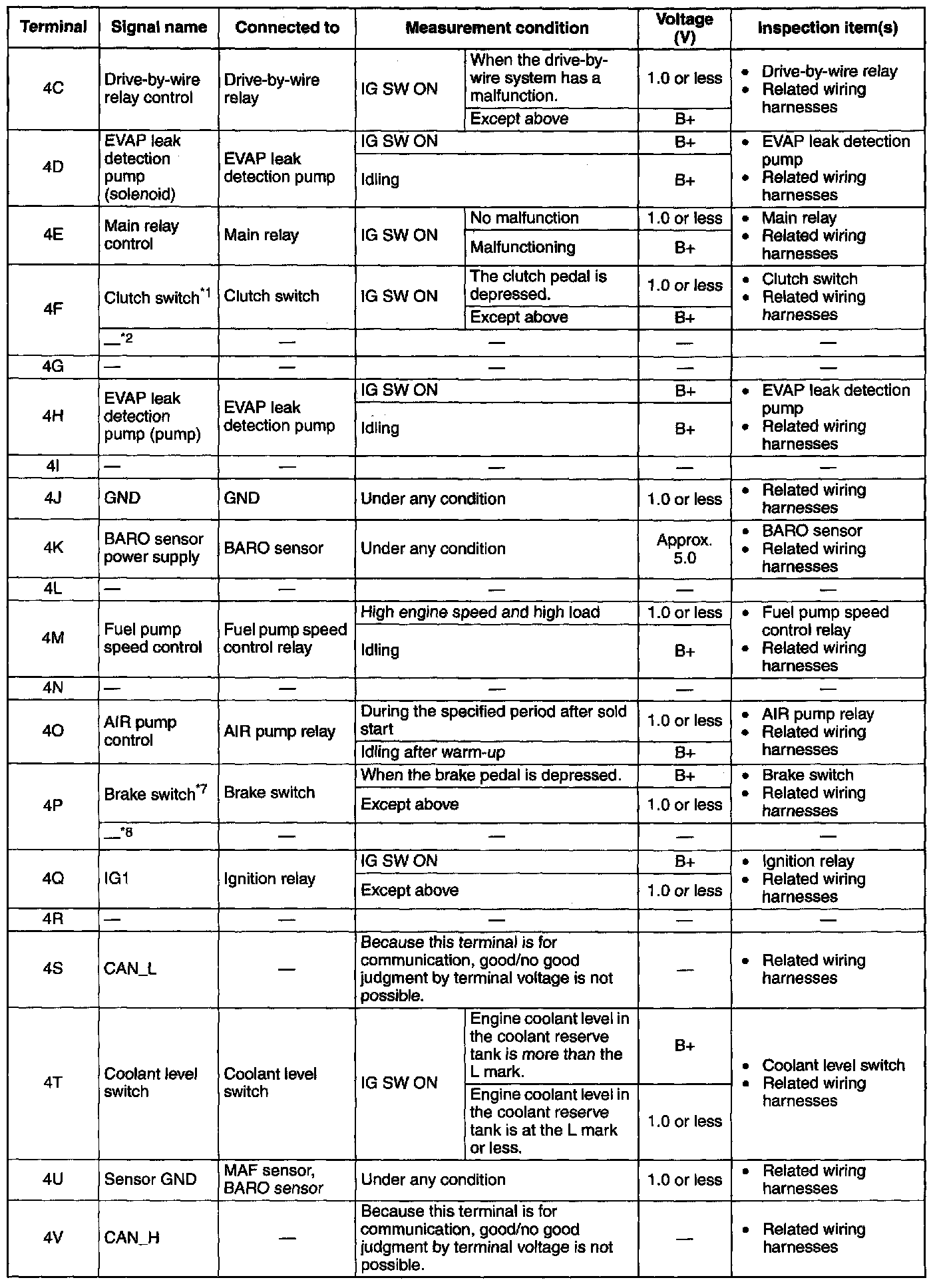

PCM Terminal Voltage Table (Reference) - Terminals (4C - 4V):

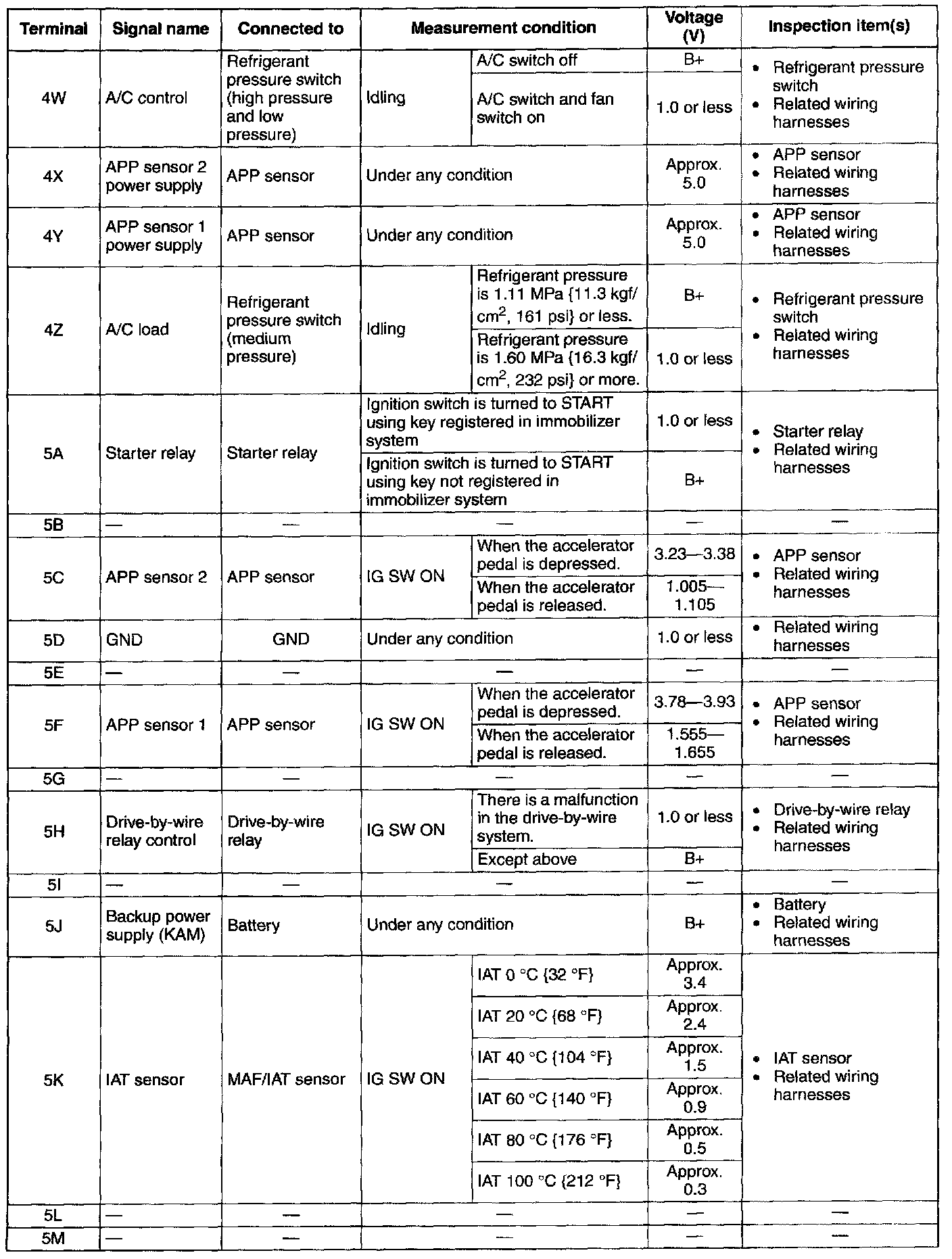

PCM Terminal Voltage Table (Reference) - Terminals (4W - 5M):

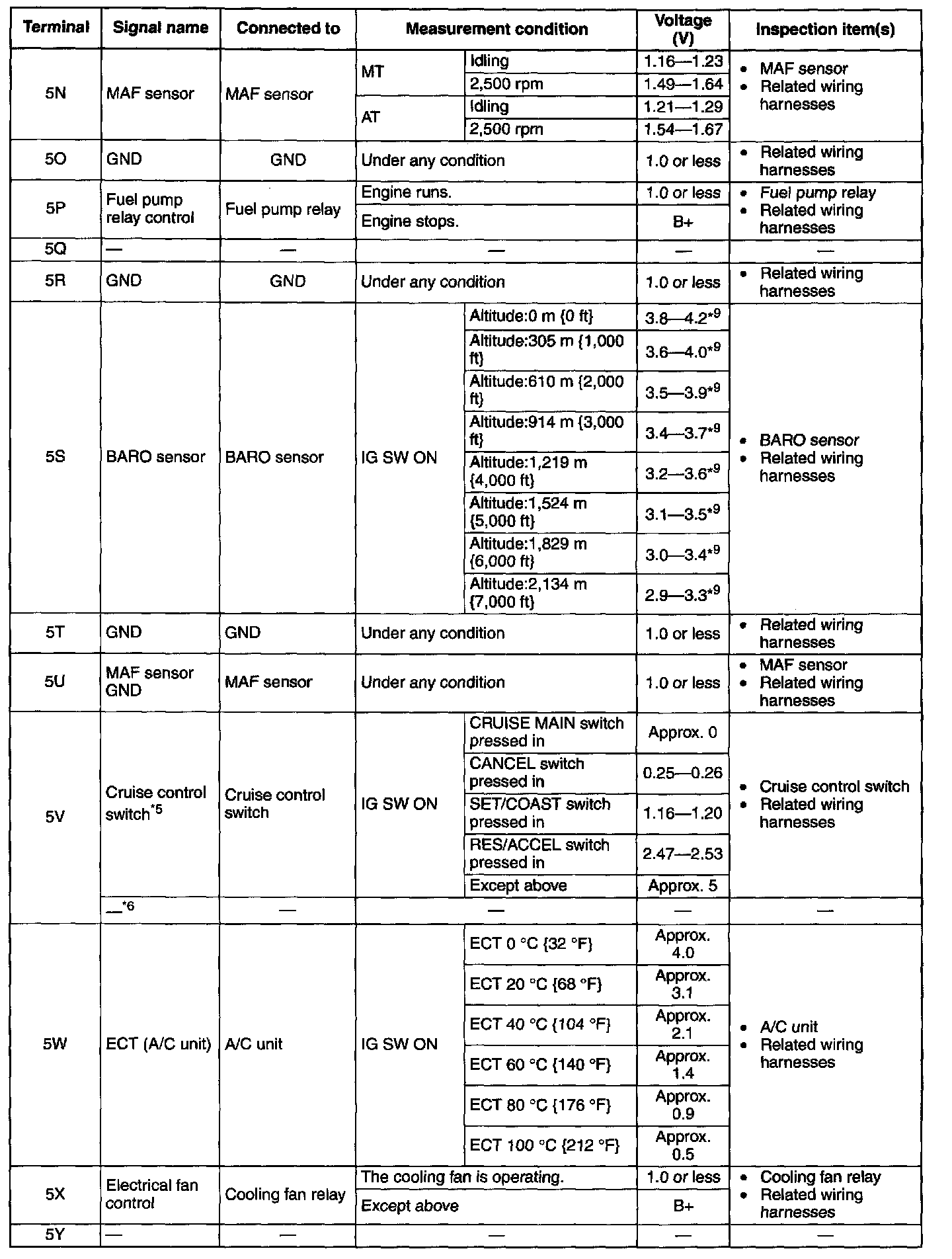

PCM Terminal Voltage Table (Reference) - Terminals (5N - 5Y):

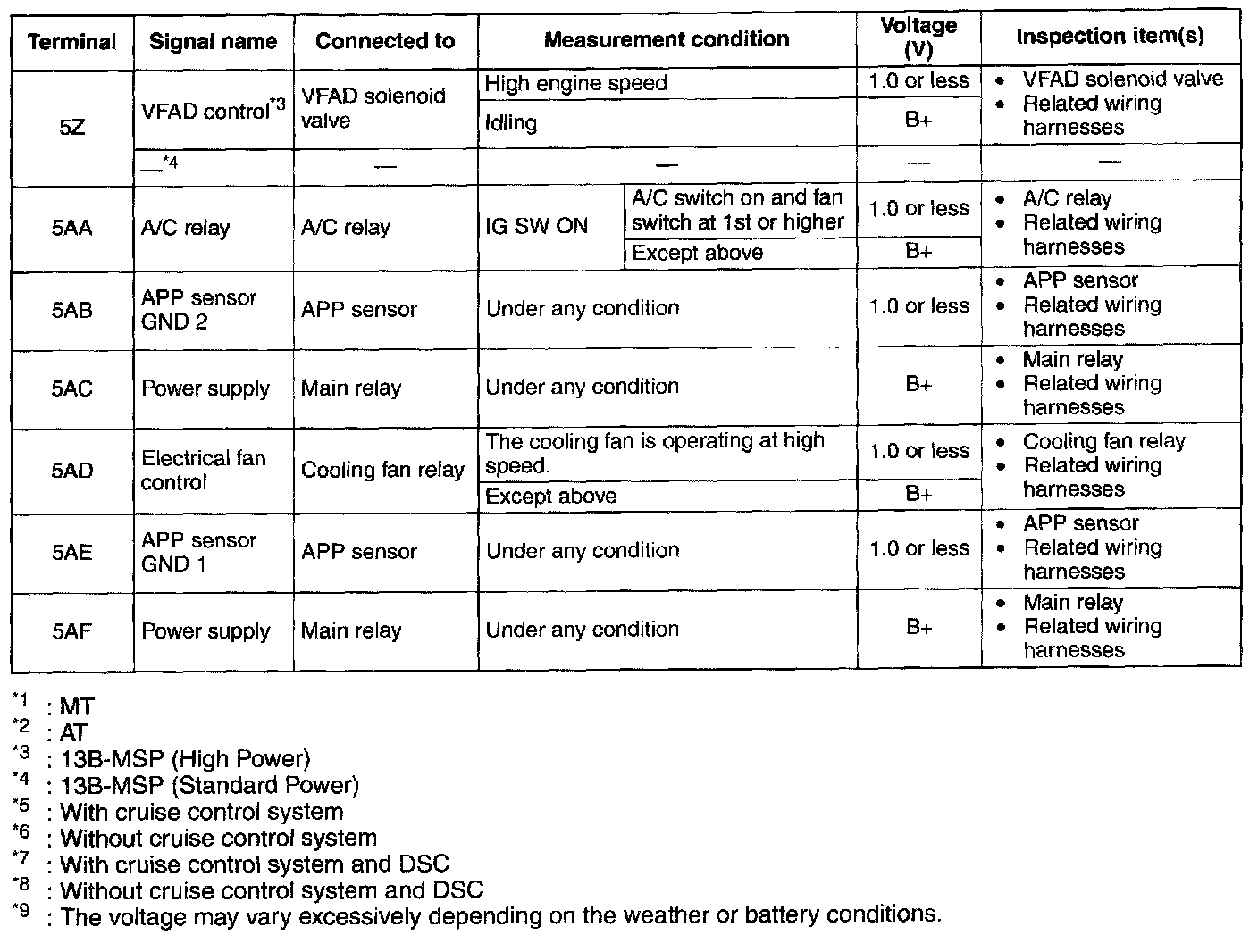

PCM Terminal Voltage Table (Reference) - Terminals (5Z - 5AF):
