Fuel Injector Removal/Installation

FUEL INJECTOR REMOVAL/INSTALLATION

1. Follow the before repair procedure and perform fuel line safety procedure.
2. Disconnect the negative battery cable.
3. Remove the extension manifold (upper). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
4. Remove the extension manifold (lower). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)




5. Remove the VDI actuator bracket installation bolt and the position the VDI actuator out of the way.
6. Disconnect the fuel injector connector.

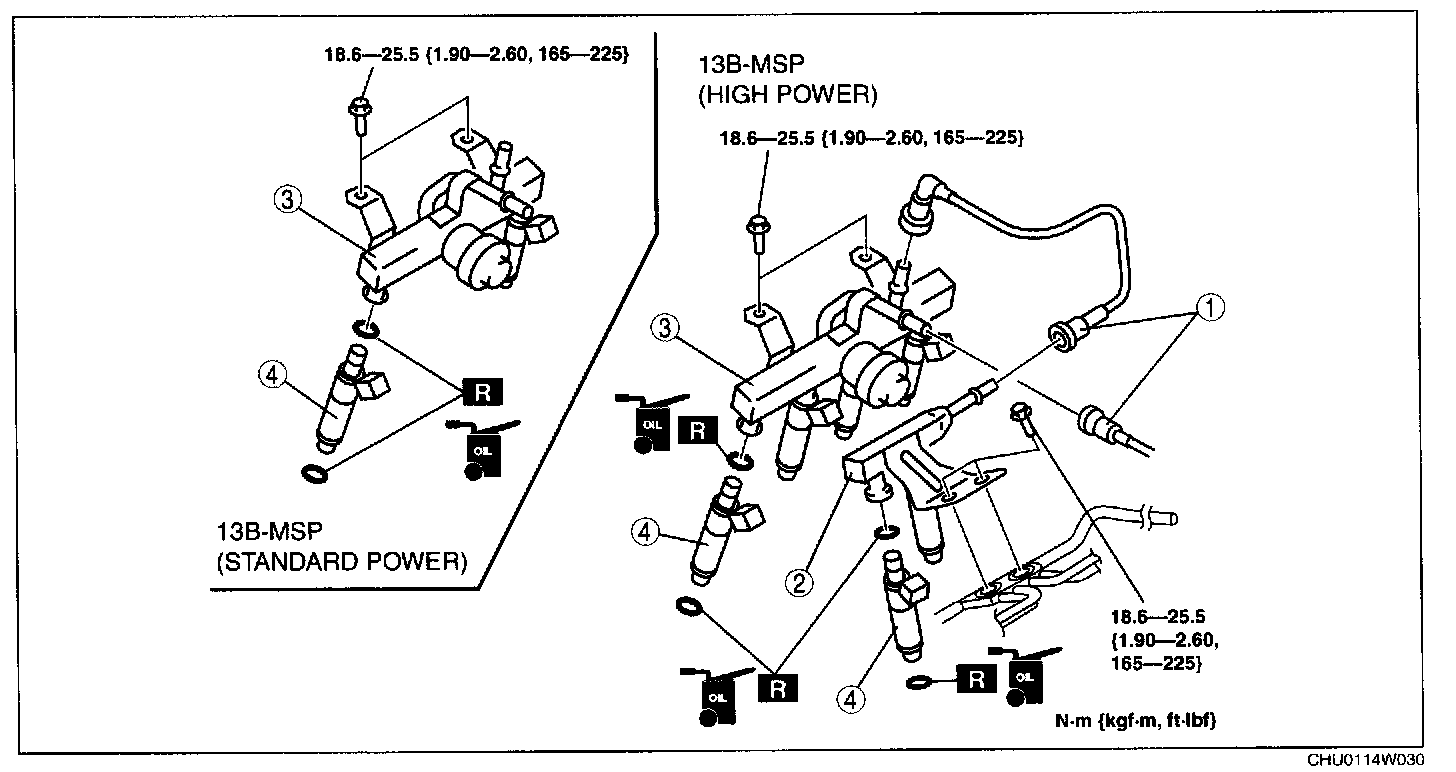

7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.
9. Inspect the variable dynamic effect intake (VDI) actuator.
10. Inspect all parts by performing the "AFTER REPAIR PROCEDURE".
