Variable Induction System: Service and Repair

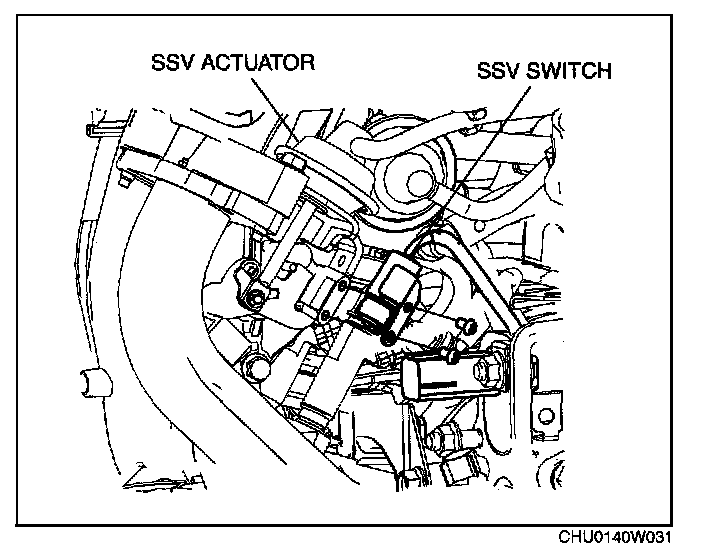

SECONDARY SHUTTER VALVE (SSV) SWITCH REMOVAL/INSTALLATION 1.
Disconnect the SSV switch connector.
2.
Remove the SSV installation screws and remove the SSV switch.
3.
Install in the reverse order of removal.
SSV switch tightening torque:
1.3 - 1.9 N.m {14 - 19 kgf.cm, 12 - 16 in.lbf}
