Eccentric Shaft Position Plate Removal/Installation

ECCENTRIC SHAFT POSITION PLATE REMOVAL/INSTALLATION

CAUTION: To allow the PCM to identify that the eccentric shaft position plate has been replaced, pump the brake pedal 20 times within 8 s after the ignition switch is turn to the ON position (engine off).

1. Remove the drive belt referring to the drive belt replacement.

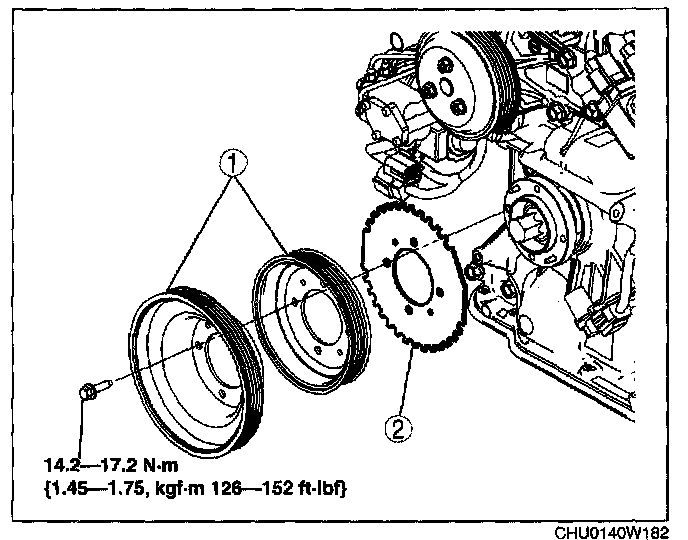

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
