Rotor, Rotary Engine

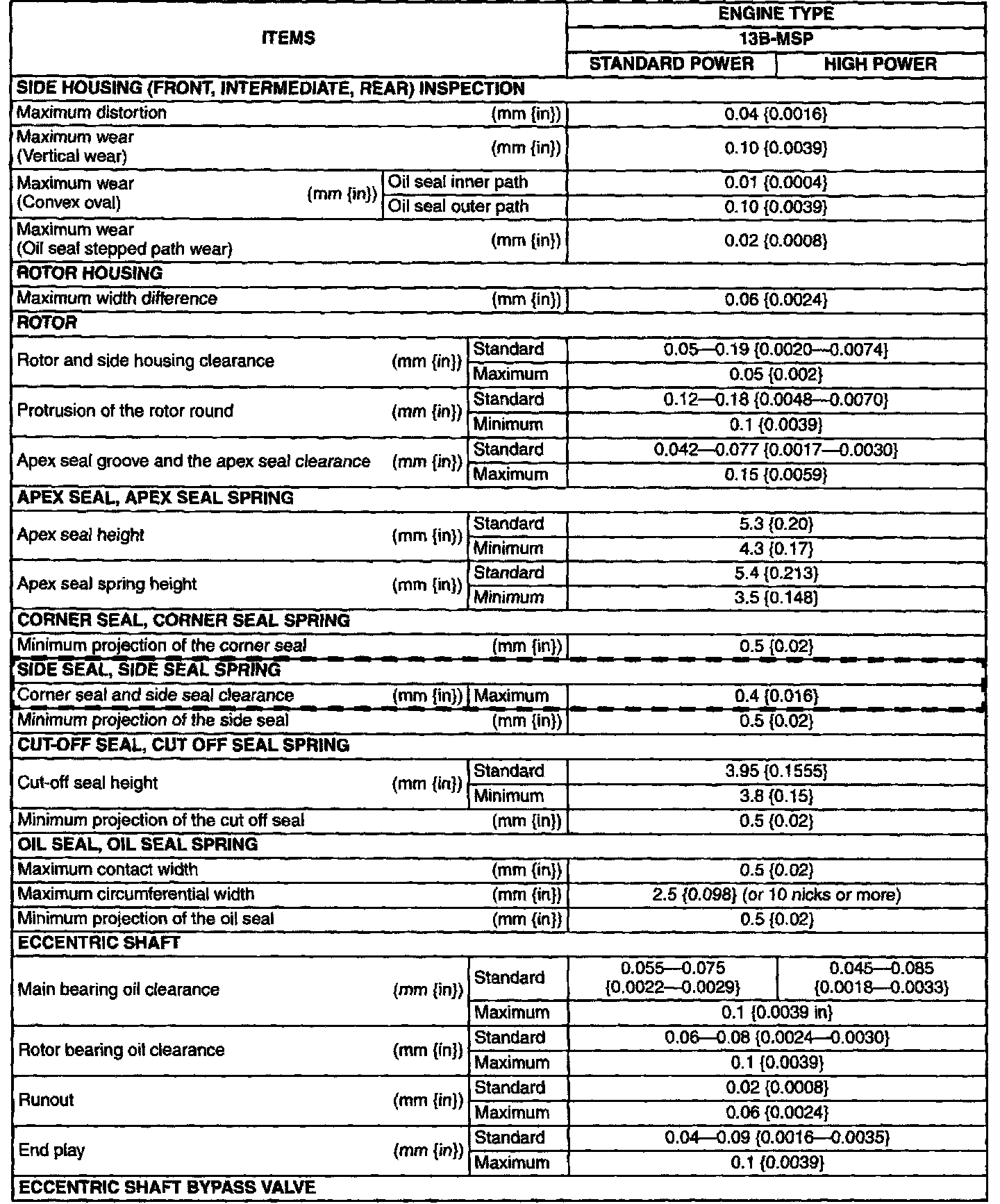

Eccentric Shaft Specifications


End Play
Standard 0.04-0.09 mm (0.0016-0.0035 in)
Max 0.1 mm (0.0039 in)
Runnout
Standard 0.02 mm (0.0008 in)
Max 0.06 (0.0024 in)

Standard Main Bearing Clearance
Standard power 0.045-0.085 mm (0.0018-0.0033 in)
High power 0.055-0.075 mm (0.0022-0.0029 in)
Maximum Main Bearing clearance
Standard 0.1 mm (0.0039 in)
High 0.1 mm (0.0039 in)


Pulley boss torque 300-340 Nm (222-250 ft lbs)
