Headlamp Washer Motor Relay: Testing and Inspection

HEADLIGHT CLEANER RELAY INSPECTION

1. Remove the headlight cleaner relay with the connector still connected.
2. Measure the voltage at each terminal (other than terminal F).
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)".
3. Disconnect the negative battery cable.
4. Verify that continuity at terminal F is as indicated in the Terminal Voltage Table (Reference).
- If there is any malfunction, inspect the parts under "Inspection item(s)".
- If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the headlight cleaner relay.

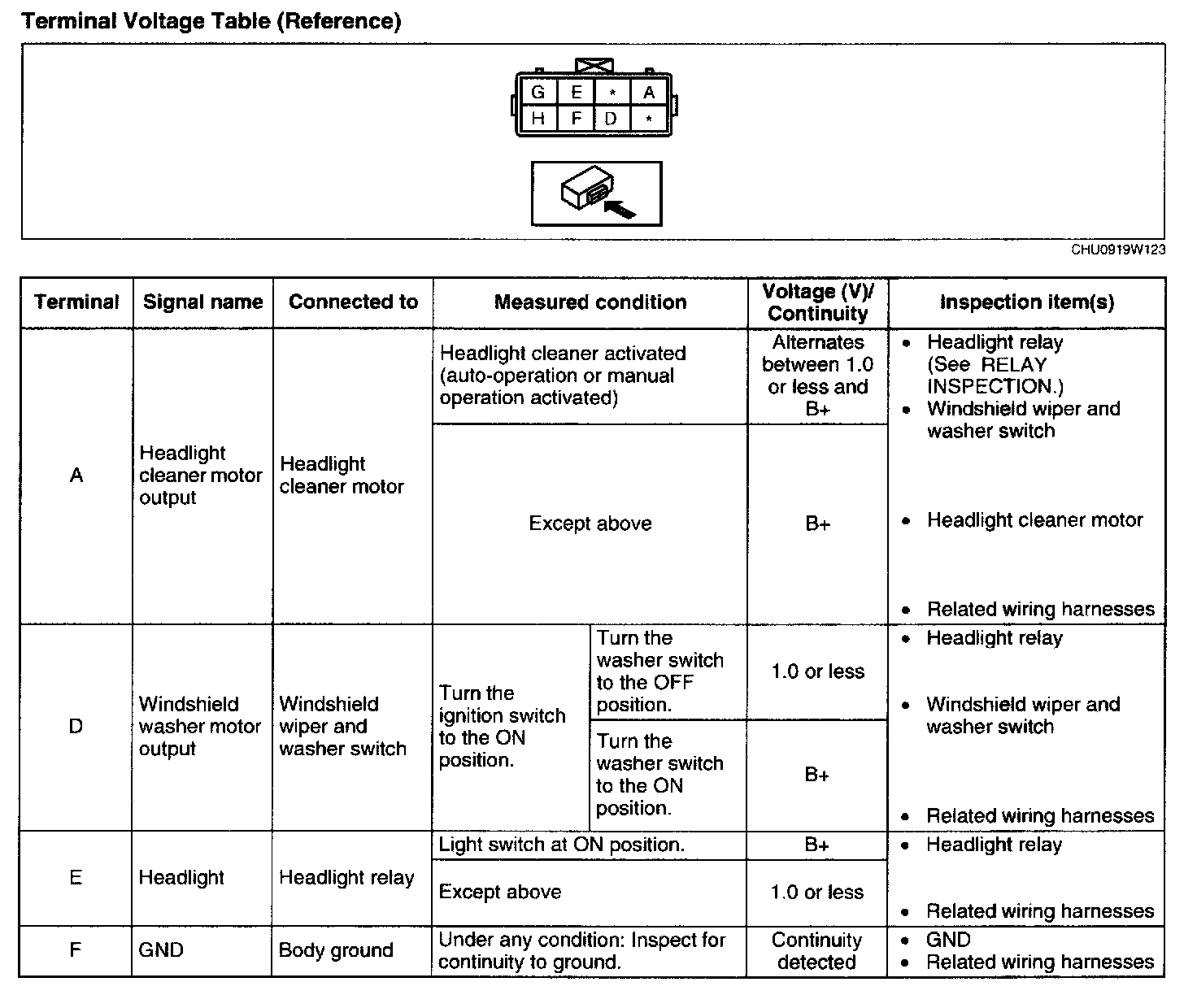

Terminal Voltage Table (Reference):

Terminal Voltage Table (Reference)
