Windshield Washer Hose: Service and Repair

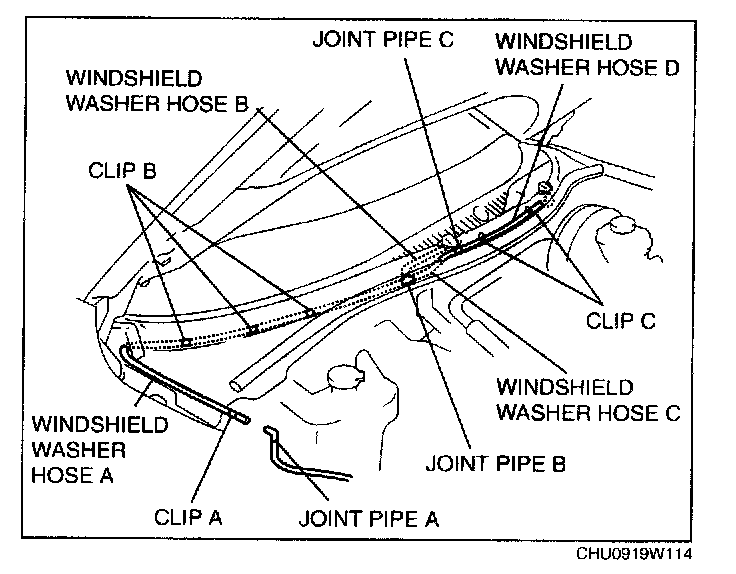

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

1. Remove the windshield wiper arm and blade.




2. Disconnect joint pipe A, then remove windshield washer hose A from clip A.
3. Remove the cowl grille.
4. Remove clips B.
5. Disconnect joint pipe B, then remove windshield washer hose A.
6. Disconnect windshield washer hose B from the washer nozzle, then remove windshield washer hose B.
7. Disconnect joint pipe C, then remove windshield washer hose C.
8. Remove windshield washer hose D from clips C.
9. Disconnect windshield washer hose D from the washer nozzle, then remove windshield washer hose D.
10. Install in the reverse order of removal.
