Floor Console - Low Series

Removal and Installation

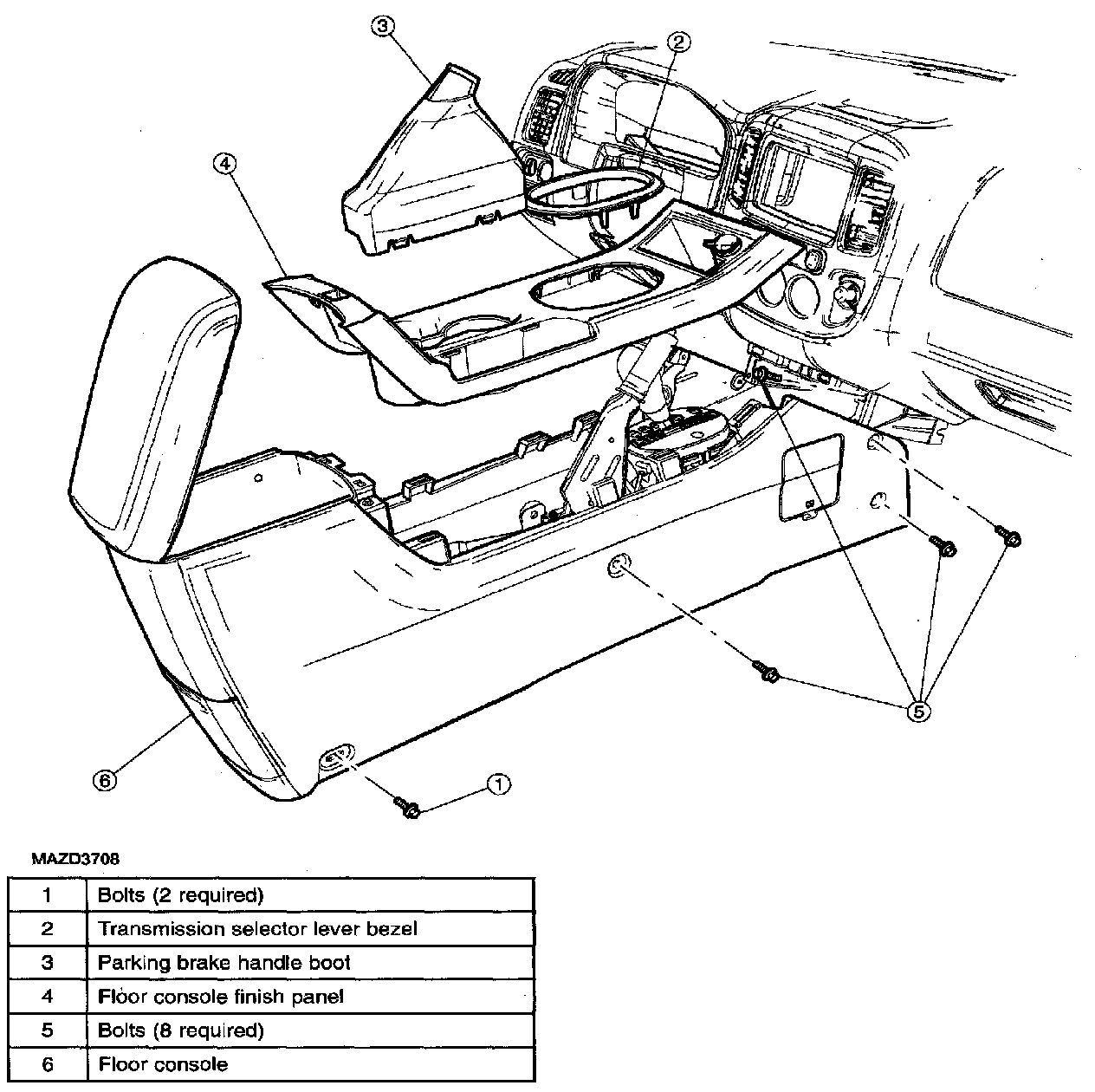

Floor Console - Low Series:

1. Remove the floor console front finish panel.
1. Remove the manual transaxle shifter knob by turning counterclockwise.
2. Remove the floor console front finish panel.




2. Remove the floor console rear finish panel.
1. Apply the parking brake.
2. Remove the floor console rear finish panel.
- Disconnect the electrical connector(s).




3. Remove the floor console front bolts.

NOTE: Position the seats forward to access the 2 rear bolts.




4. Remove the two rear bolts and the floor console.
5. Position the seats to the rear and disconnect the battery..
6. To install, reverse the removal procedure.
