Pinpoint Test 2

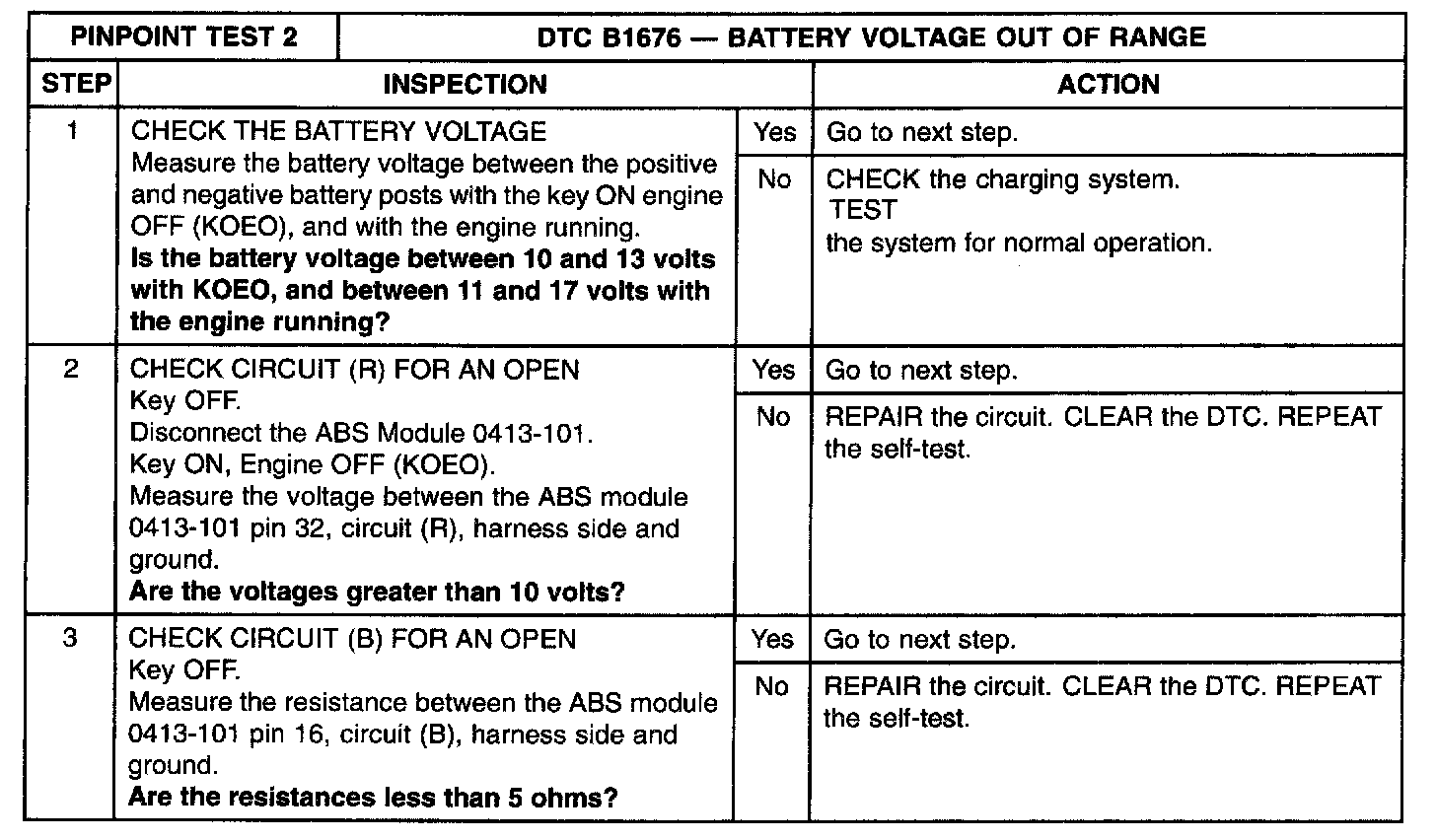

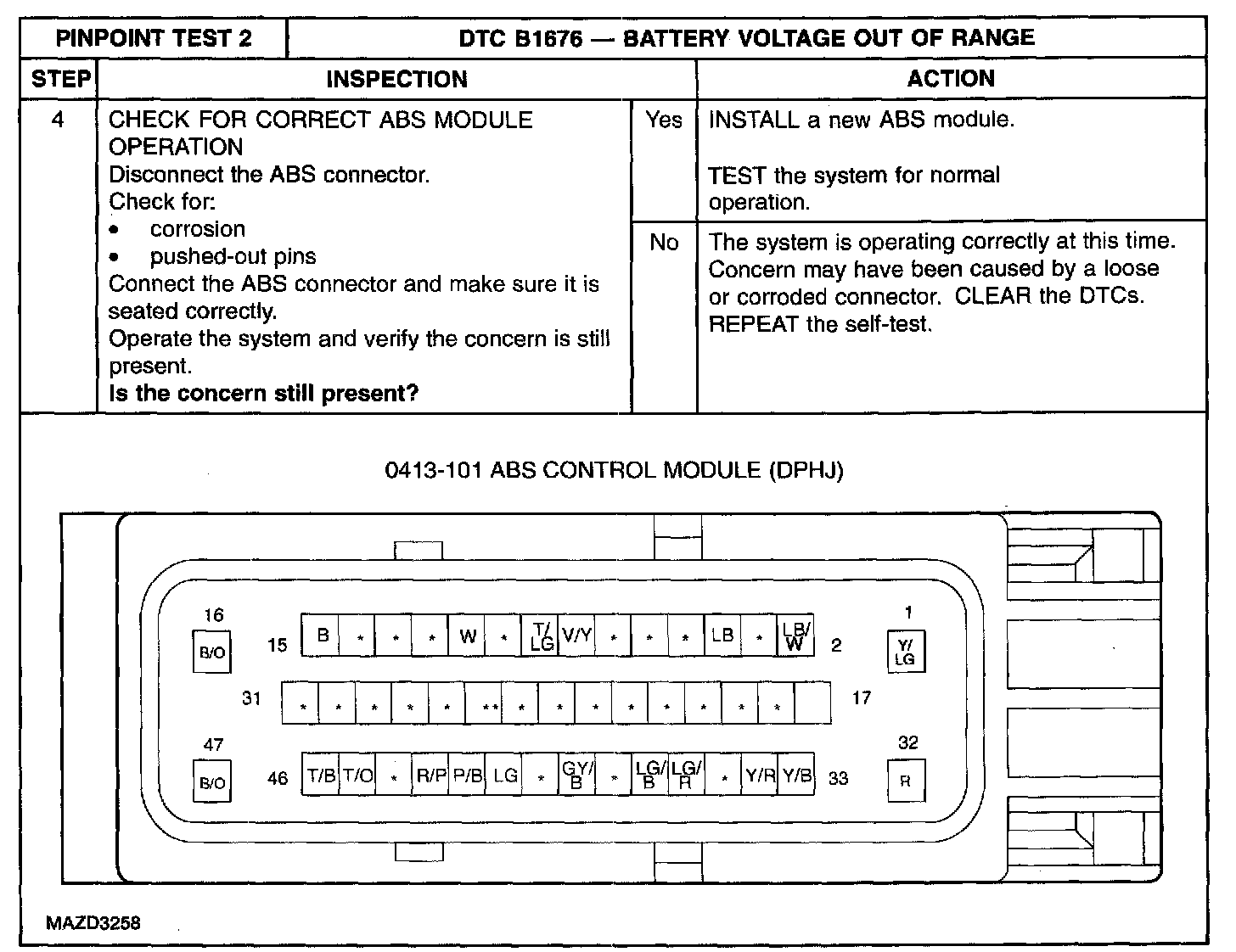

PINPOINT TEST 2: DTC B1676 - BATTERY VOLTAGE OUT OF RANGE

Caution:
^ Use the flex probe kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.
