Pinpoint Test 4

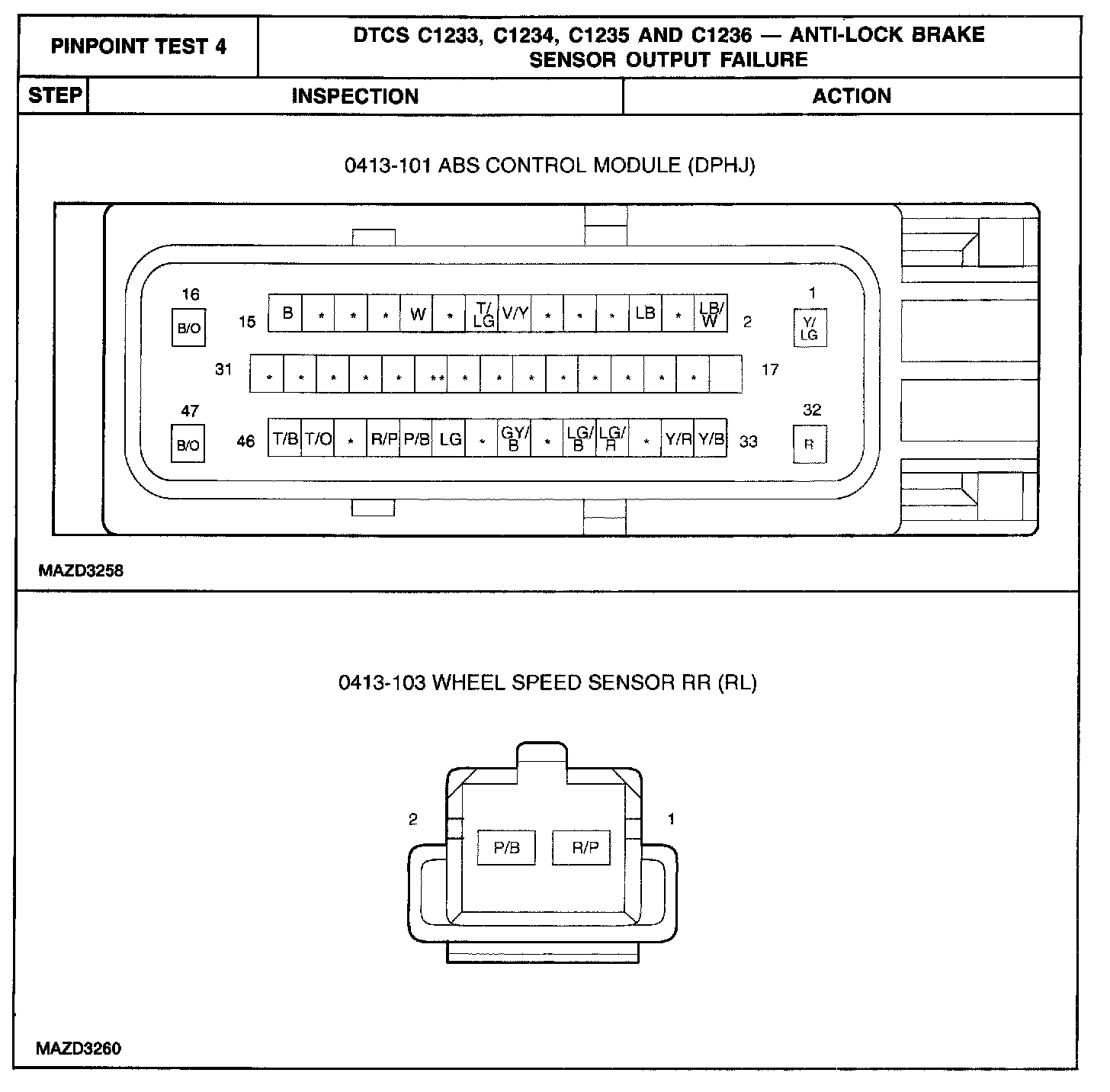

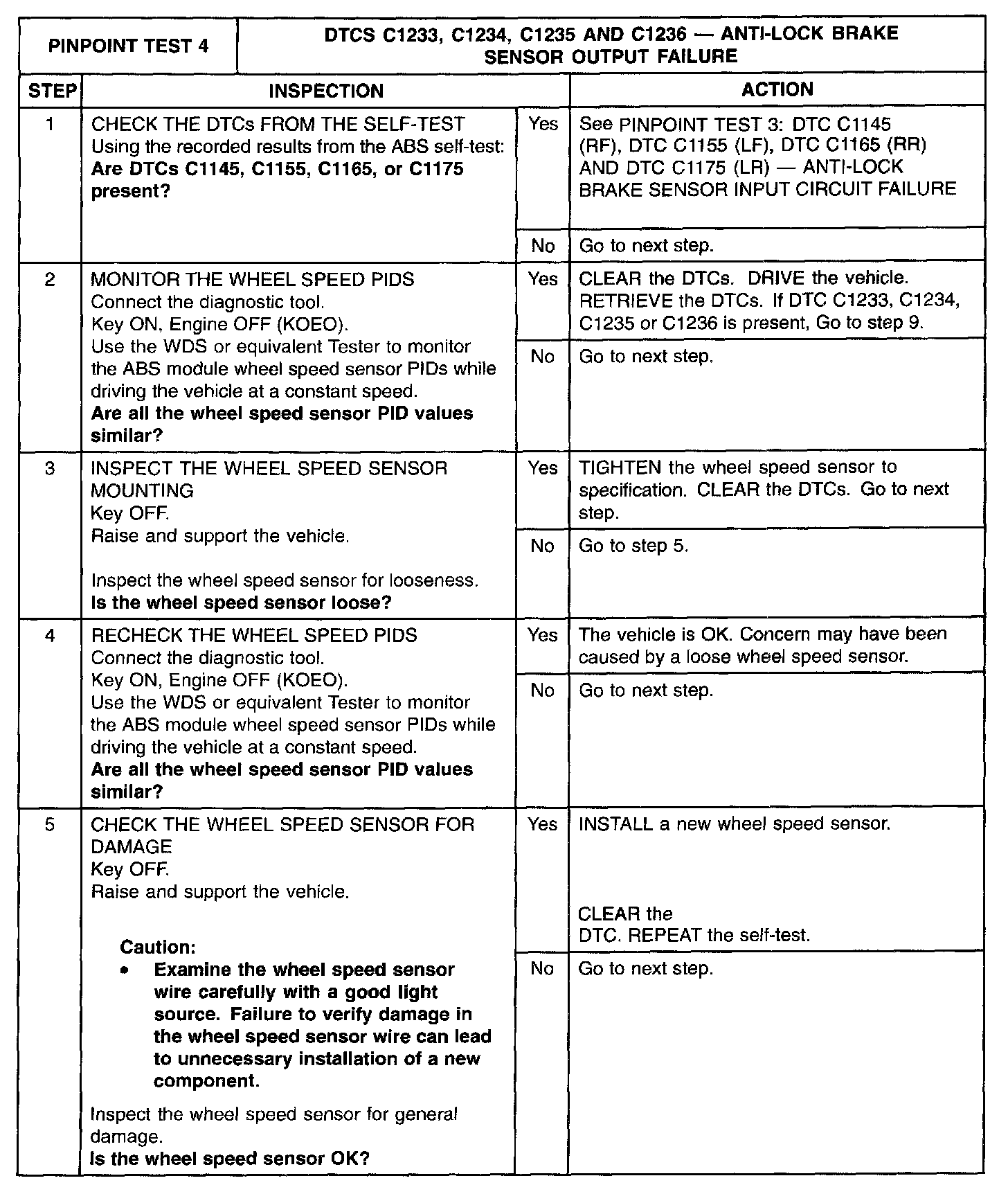

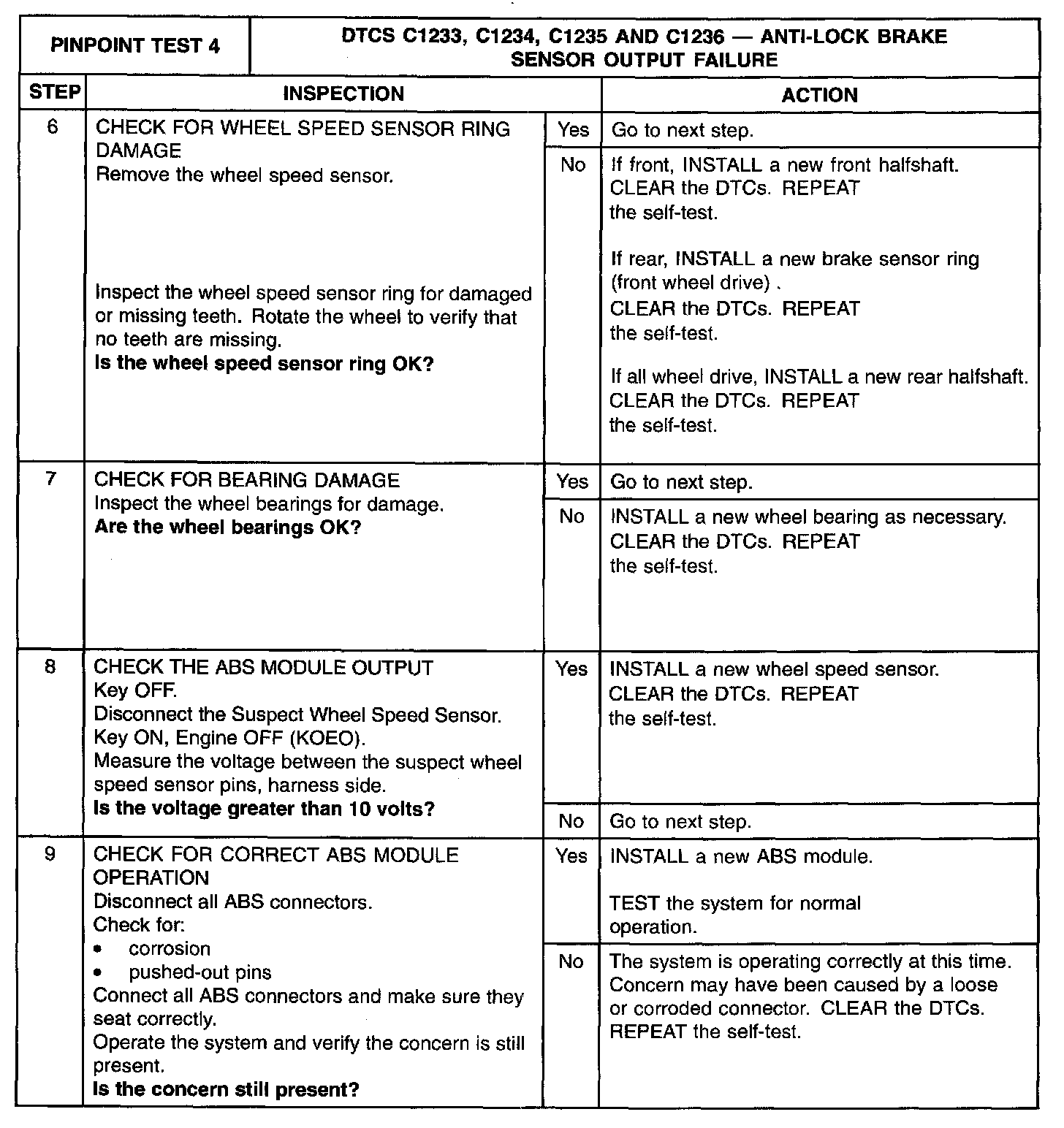

PINPOINT TEST 4: DTCS C1233, C1234, C1235 AND C1236 - ANTI-LOCK BRAKE SENSOR OUTPUT FAILURE

Caution:
^ Use the flex probe kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.
