Oil Cooler: Service and Repair

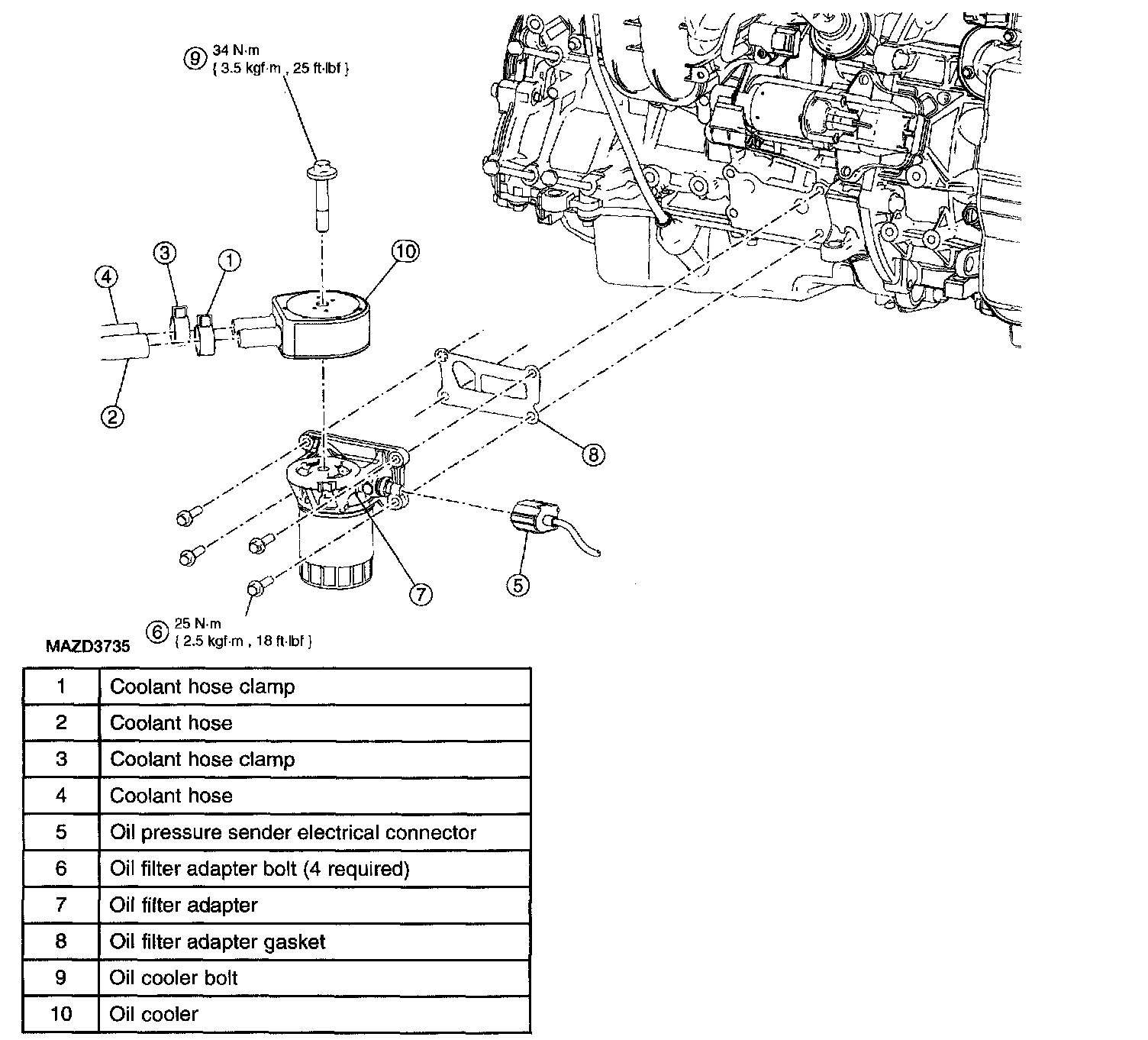

OIL COOLER





Removal and Installation
1. Drain the engine coolant.
2. Remove the oil filter adapter.

Note:
^ Position the oil filter adapter in a vise

3. Remove the bolt and the oil cooler.

Caution:
^ The oil cooler sealing surfaces are soft metals. Do not use abrasive grinding discs to remove gasket material; only use manual scrapers. Do not scratch or gouge sealing surfaces or oil leaks may occur.

4. Carefully clean the sealing surfaces.
5. To install, reverse the removal procedure.
