Pinpoint Test 1

PINPOINT TEST 1: INCORRECT/ERRATIC DIRECTION OF AIRFLOW FROM OUTLET(S)

Step 1:

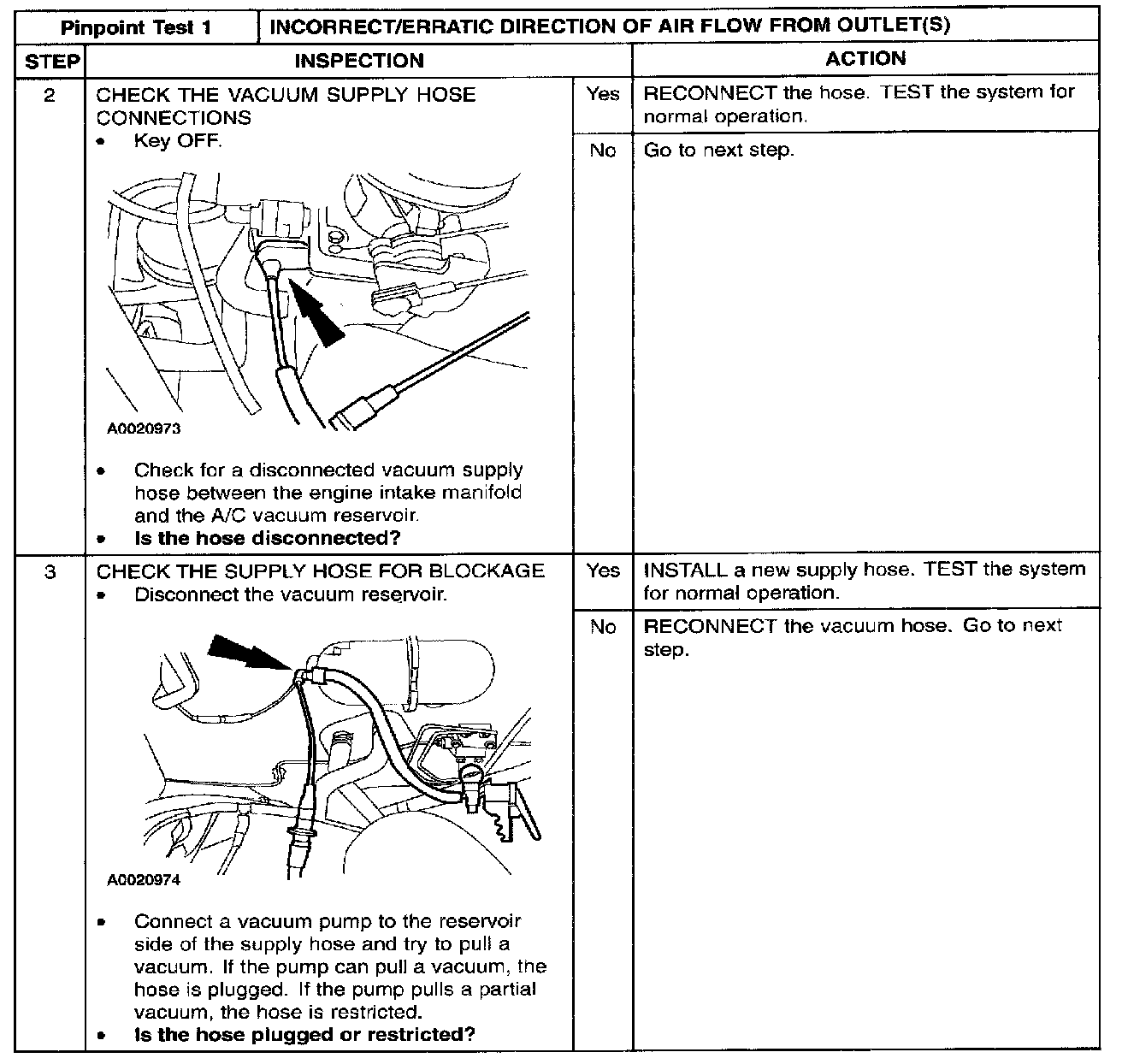

Step 2 - 3:

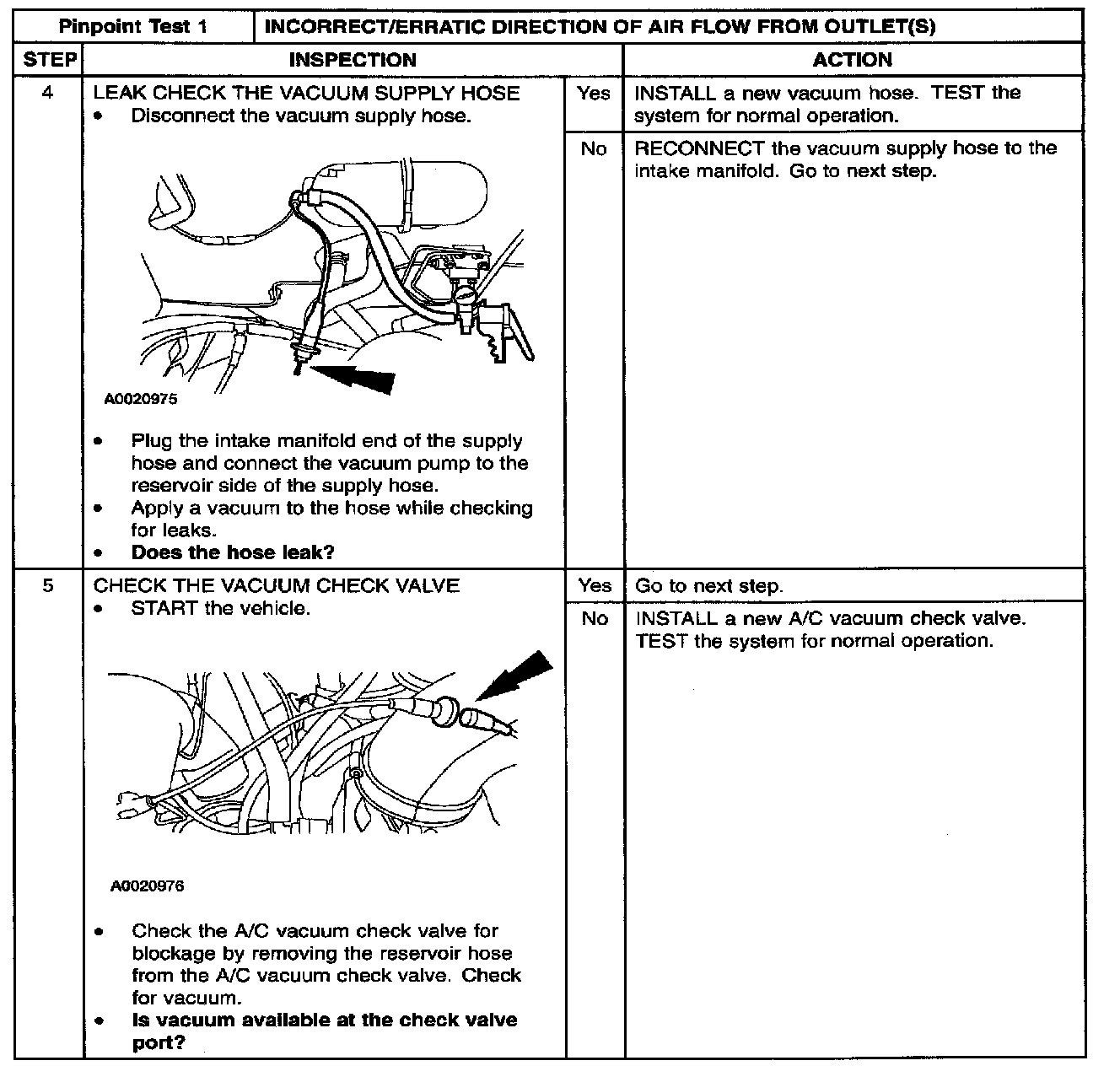

Step 4 - 5:

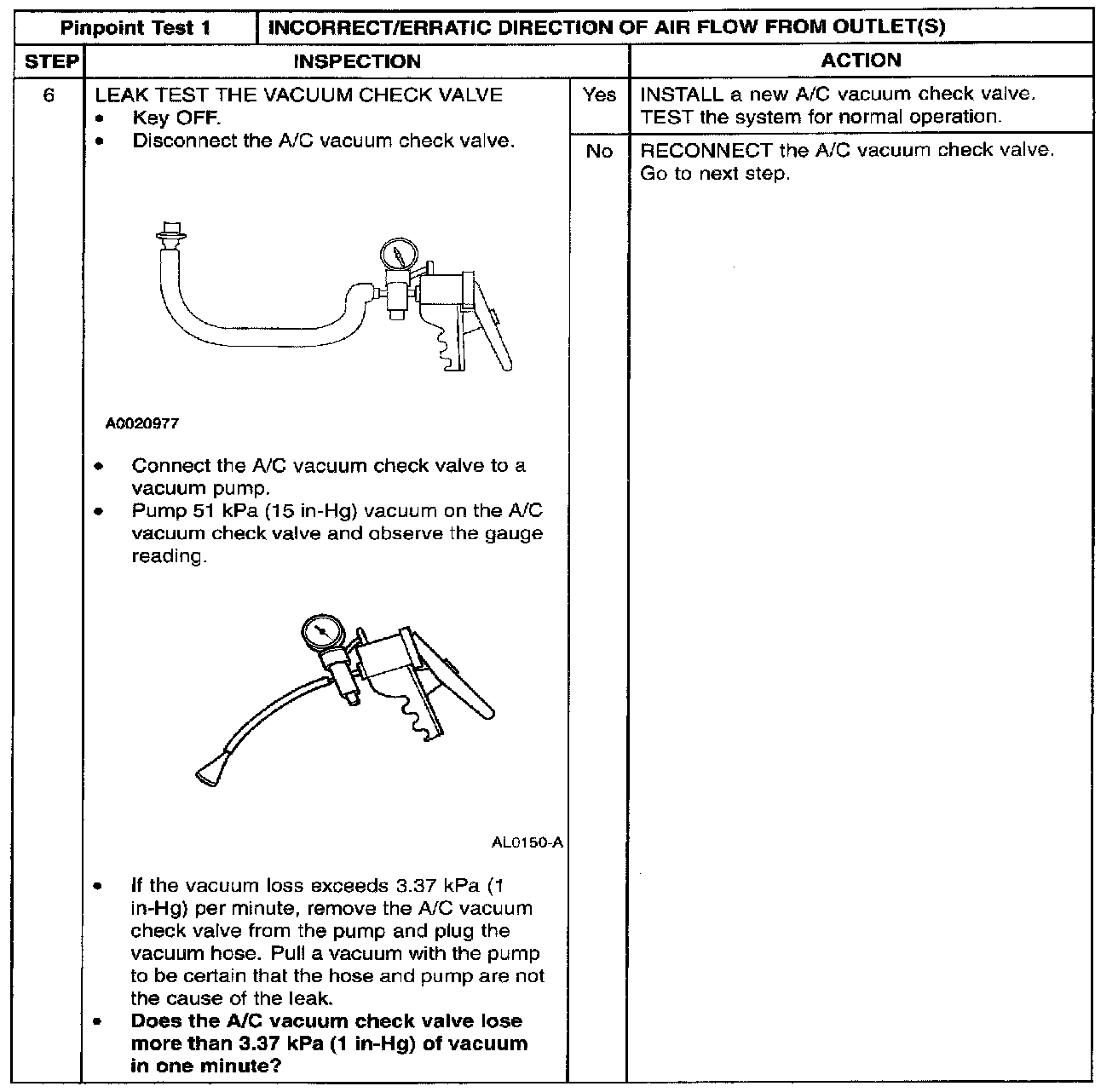

Step 6:

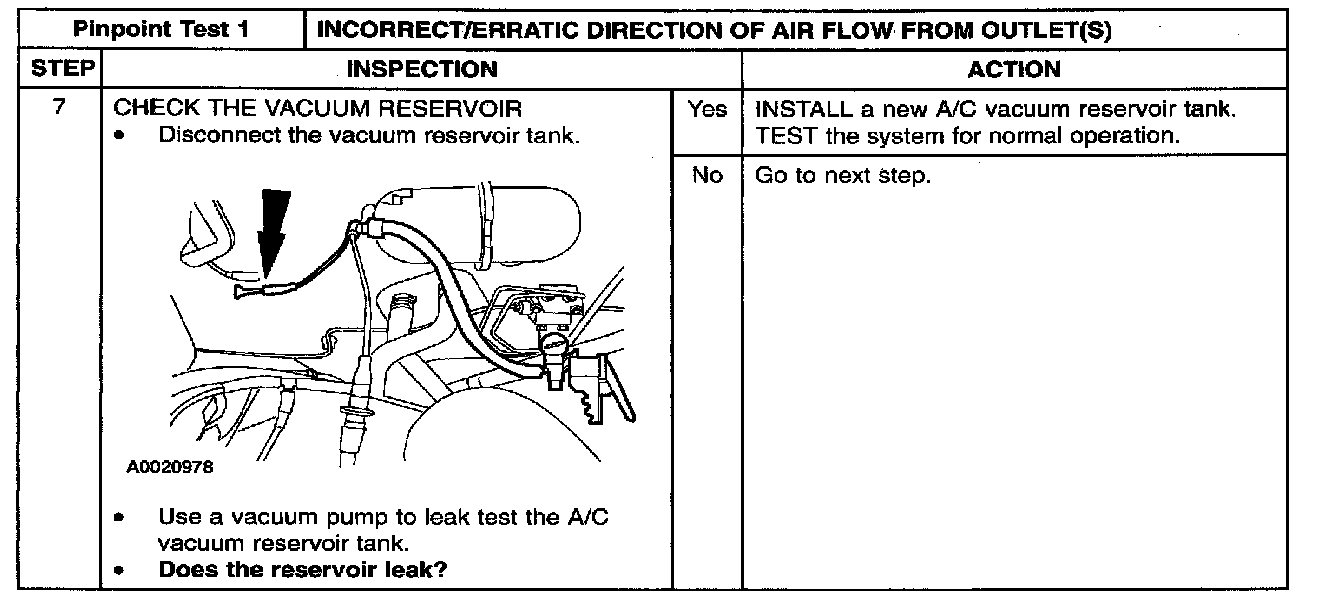

Step 7:

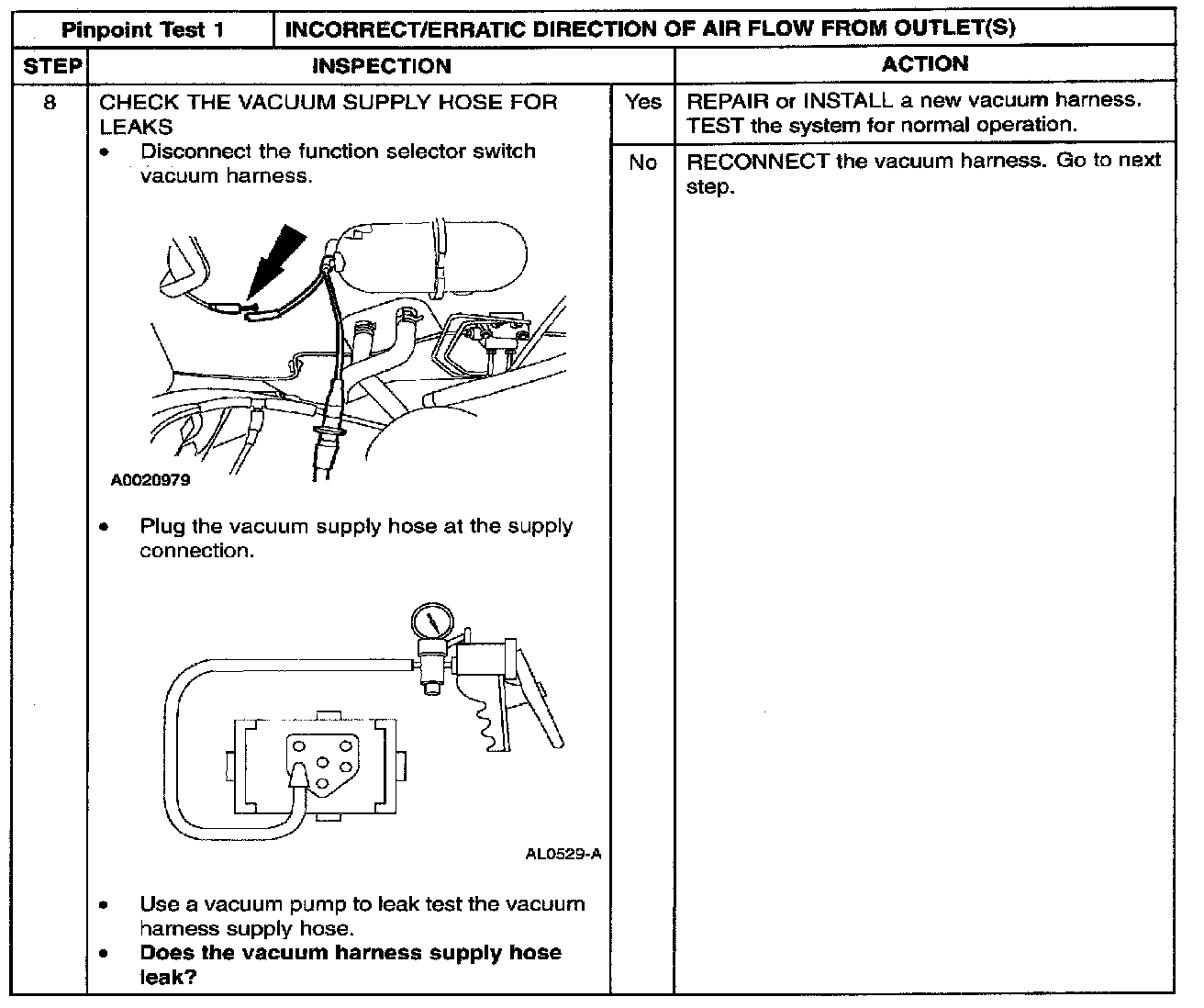

Step 8:

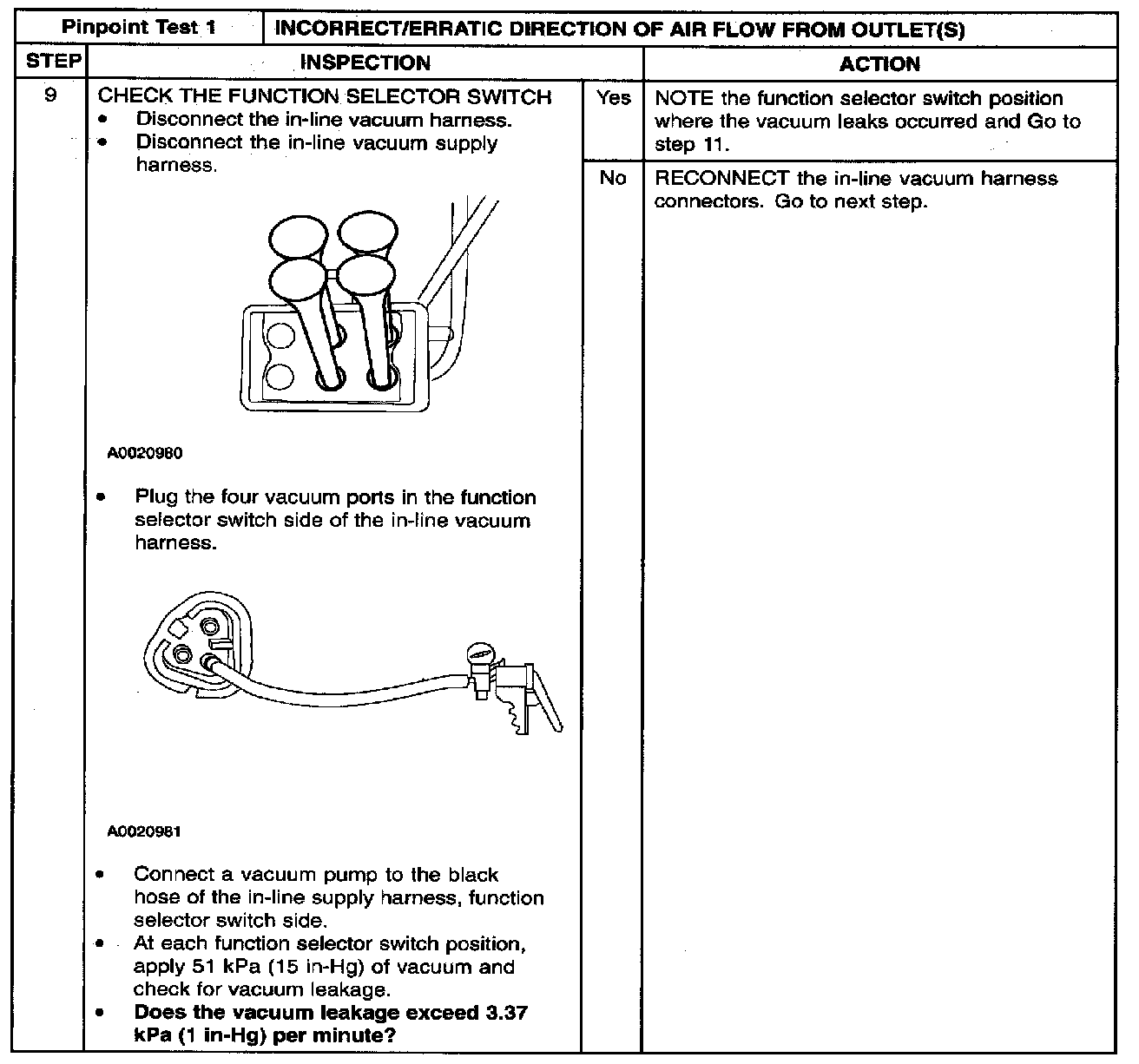

Step 9:

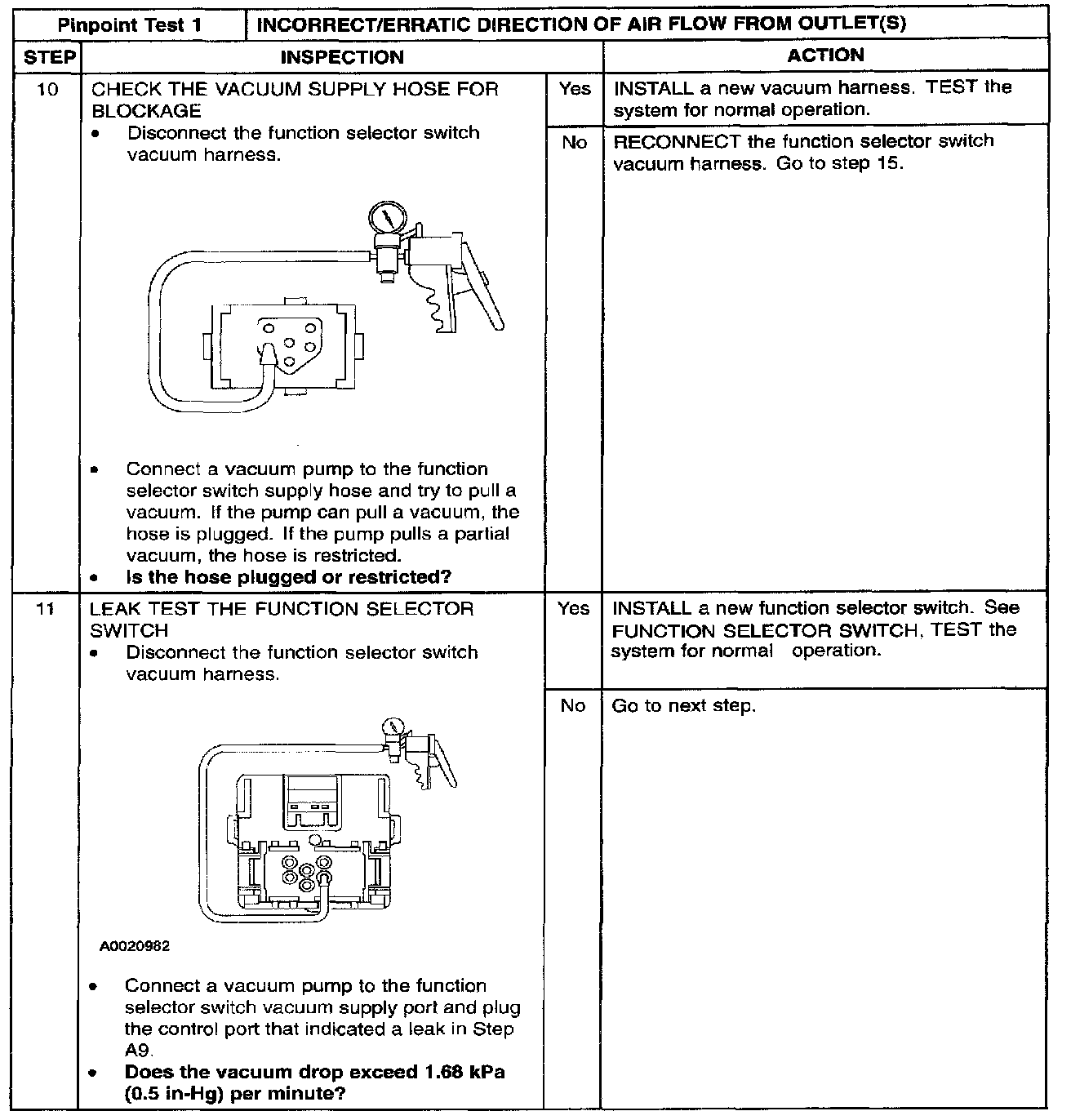

Step 10 - 11:

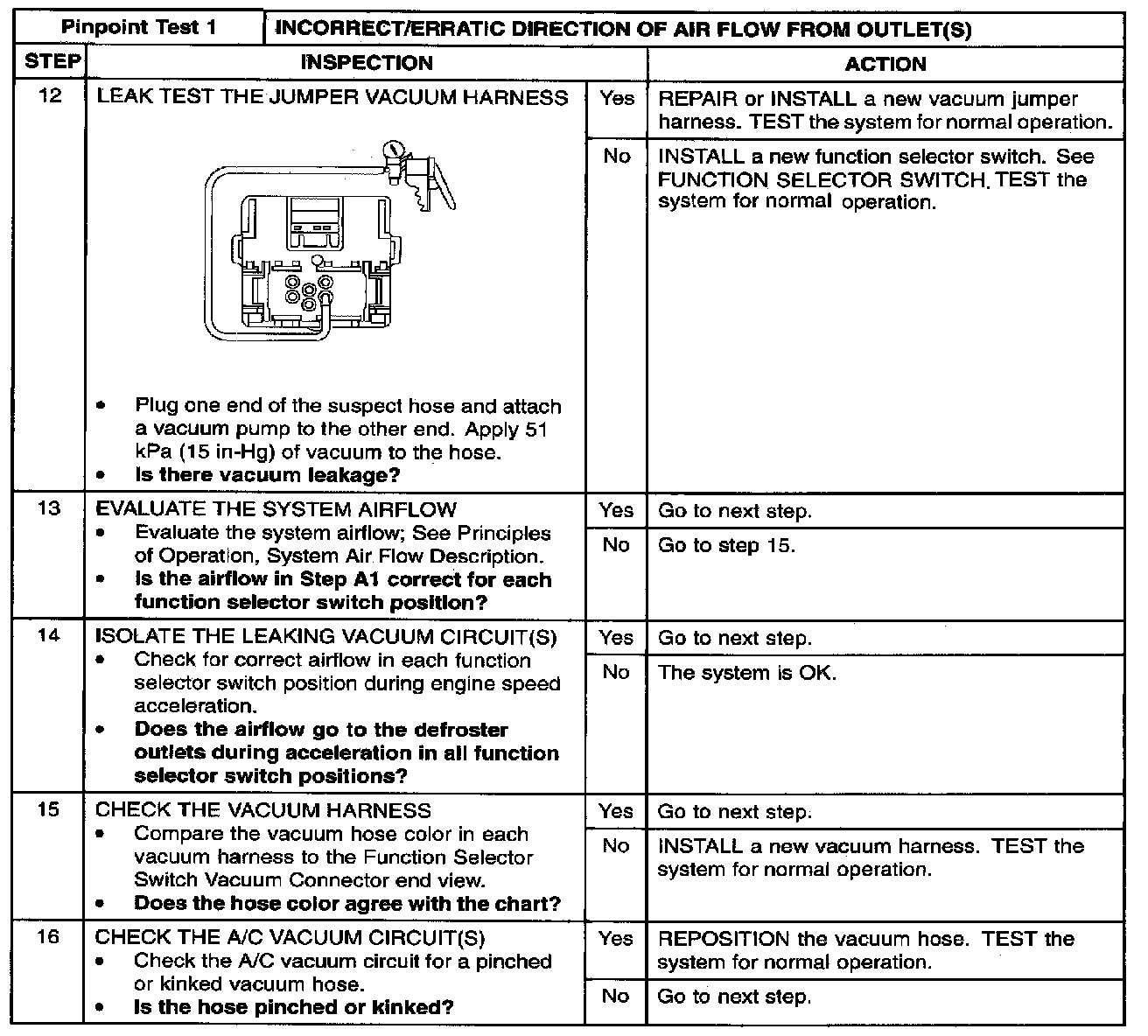

Step 12 - 16:

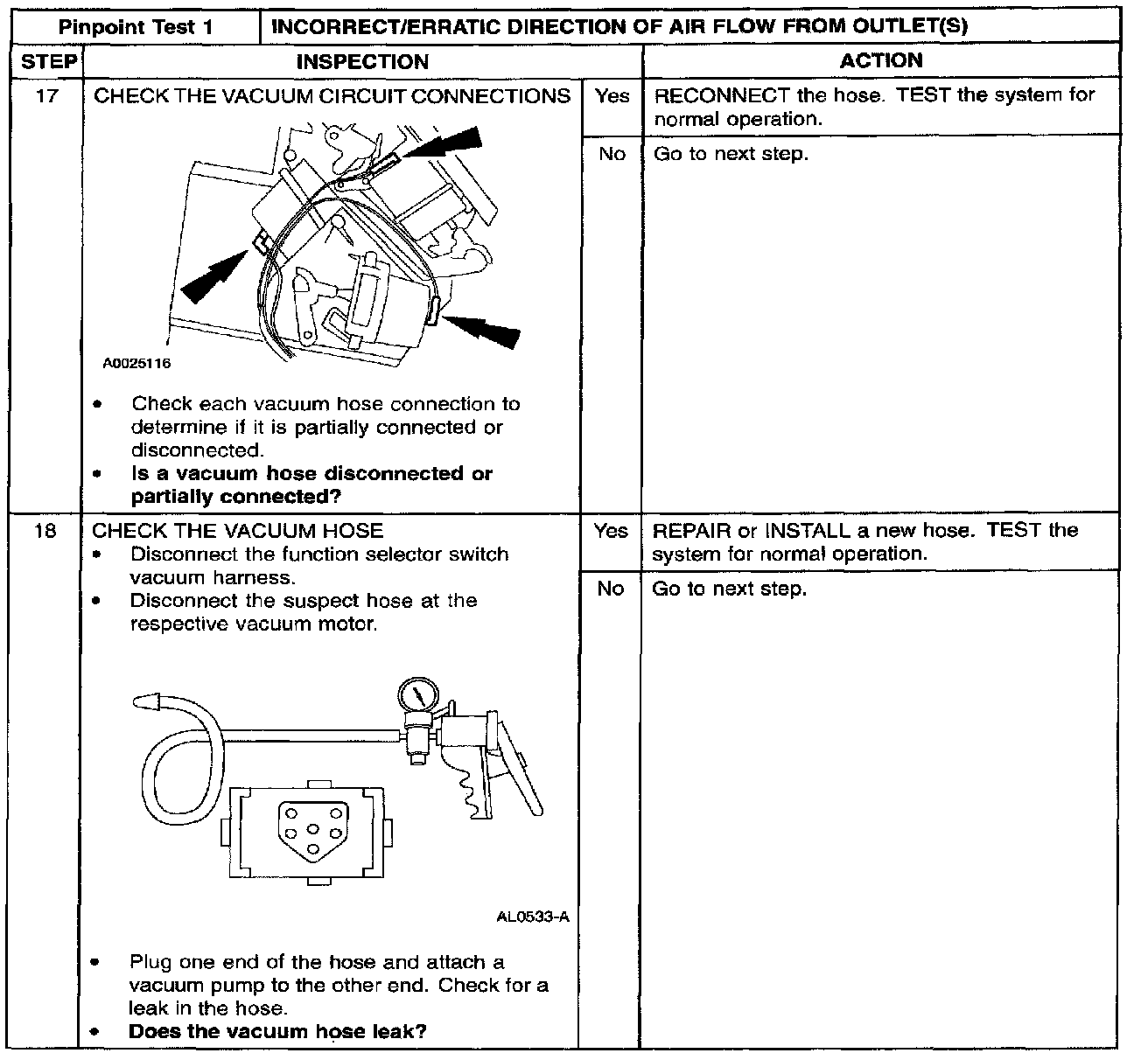

Step 17 - 18:

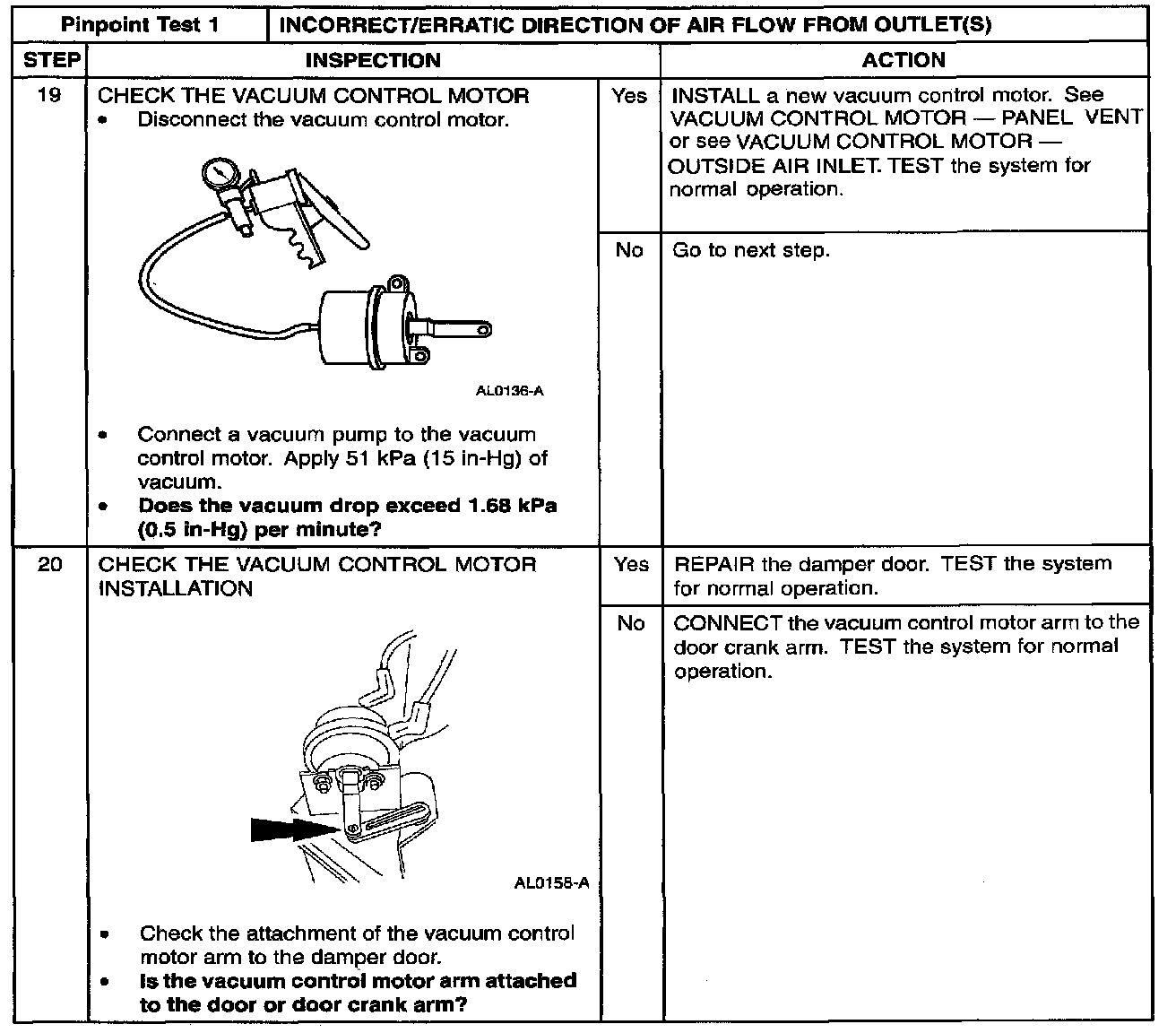

Step 19 - 20:

Normal Operation
The function selector switch directs vacuum to the appropriate vacuum control motor(s), controlling the door movement.

Possible Causes
- vacuum hose(s) restricted or broken
- vacuum control motor
- airflow control door(s)
- function selector switch
- A/C vacuum check valve
- A/C vacuum reservoir tank
- stuck or bound linkage or door

NOTE: Because of the materials used in construction of the vacuum hoses, never pinch the vacuum hoses off during diagnosis to locate a leak. A wood golf tee can be used as a plug when it is necessary to plug one end of a vacuum hose for leak test purposes.
