PINPOINT TEST 7: THE BLOWER MOTOR DOES NOT OPERATE

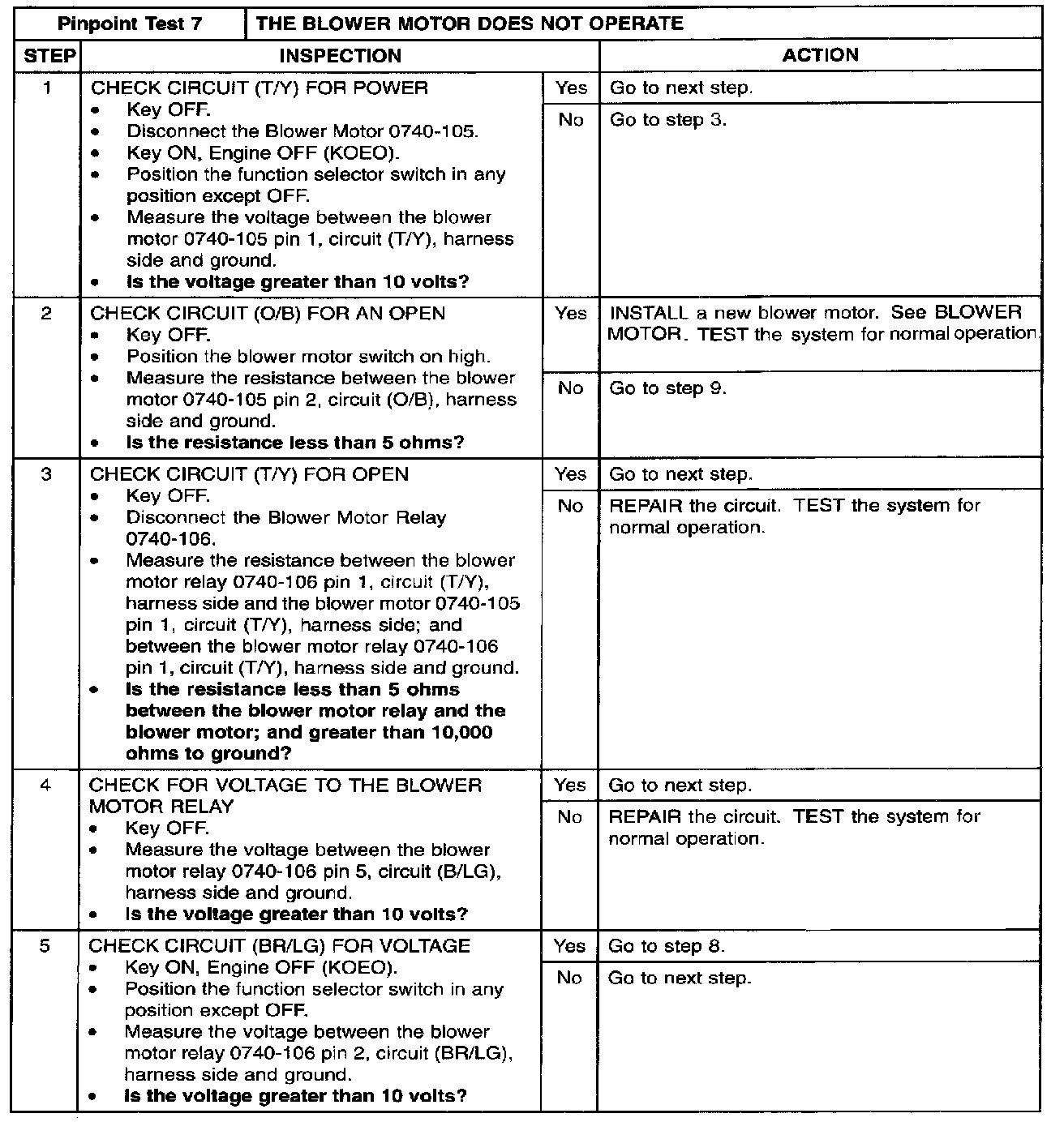

Step 1 - 5:

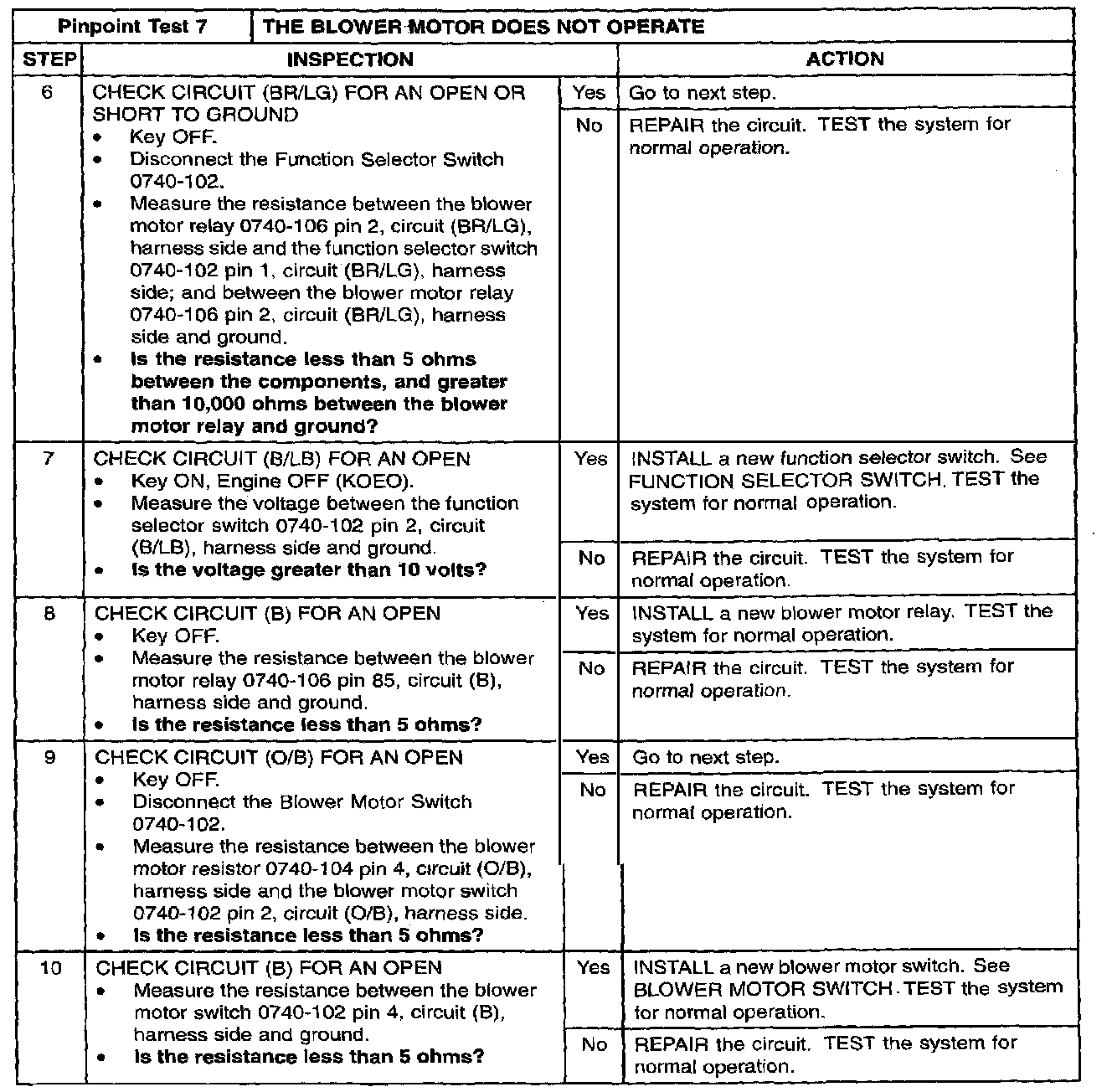

Step 6 - 10:

Normal Operation
When the function selector switch is placed in any position except OFF, the blower motor will operate at the desired speed according to the position of the blower motor switch.

Possible Causes
- circuit (B/LB) open
- circuit (B) open
- circuit (T/Y) open
- circuit (O/B) open
- circuit (BR/LG) open or short to ground
- blower motor switch
- blower motor
- blower motor relay
- function selector switch
