Pinpoint Test 3

PINPOINT TEST 3: THE HEADLAMP ON REMINDER CHIME IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

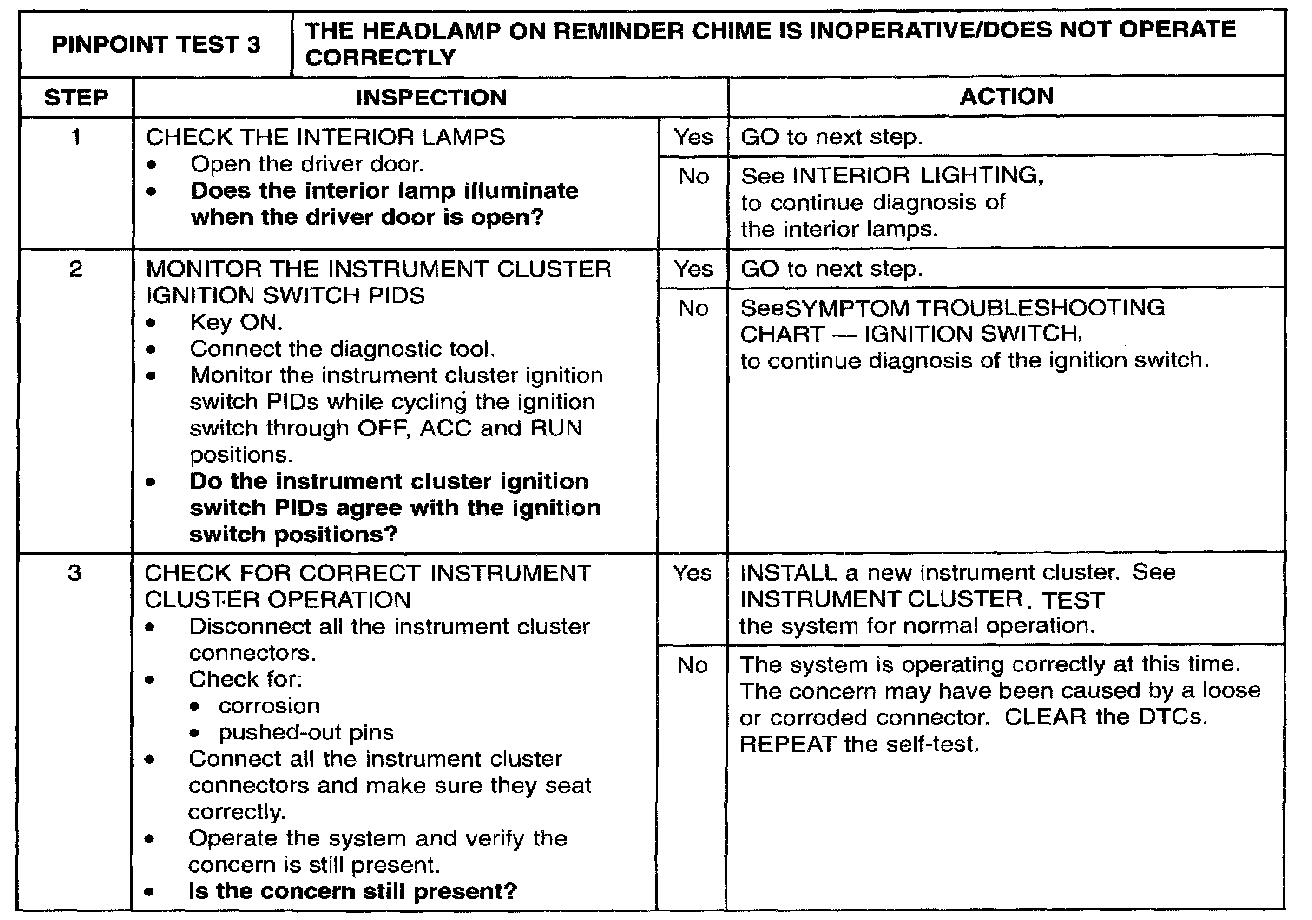

Step 1 - 3:






Normal Operation
The headlamps on warning chime sounds when the driver door is opened, with the key in the OFF position, the key out, and the multifunction switch is in the PARK or HEAD positions. The SJB then communicates to the instrument cluster through the CAN circuits that the exterior lamps are on. The autolamps feature must not be selected for the headlamp on reminder chime to operate.

Possible Causes
- instrument cluster
- SJB
