Pinpoint Test 4
PINPOINT TEST 4: DCT B1519 HOOD AJAR SWITCH/CIRCUIT FAILUREStep 1:

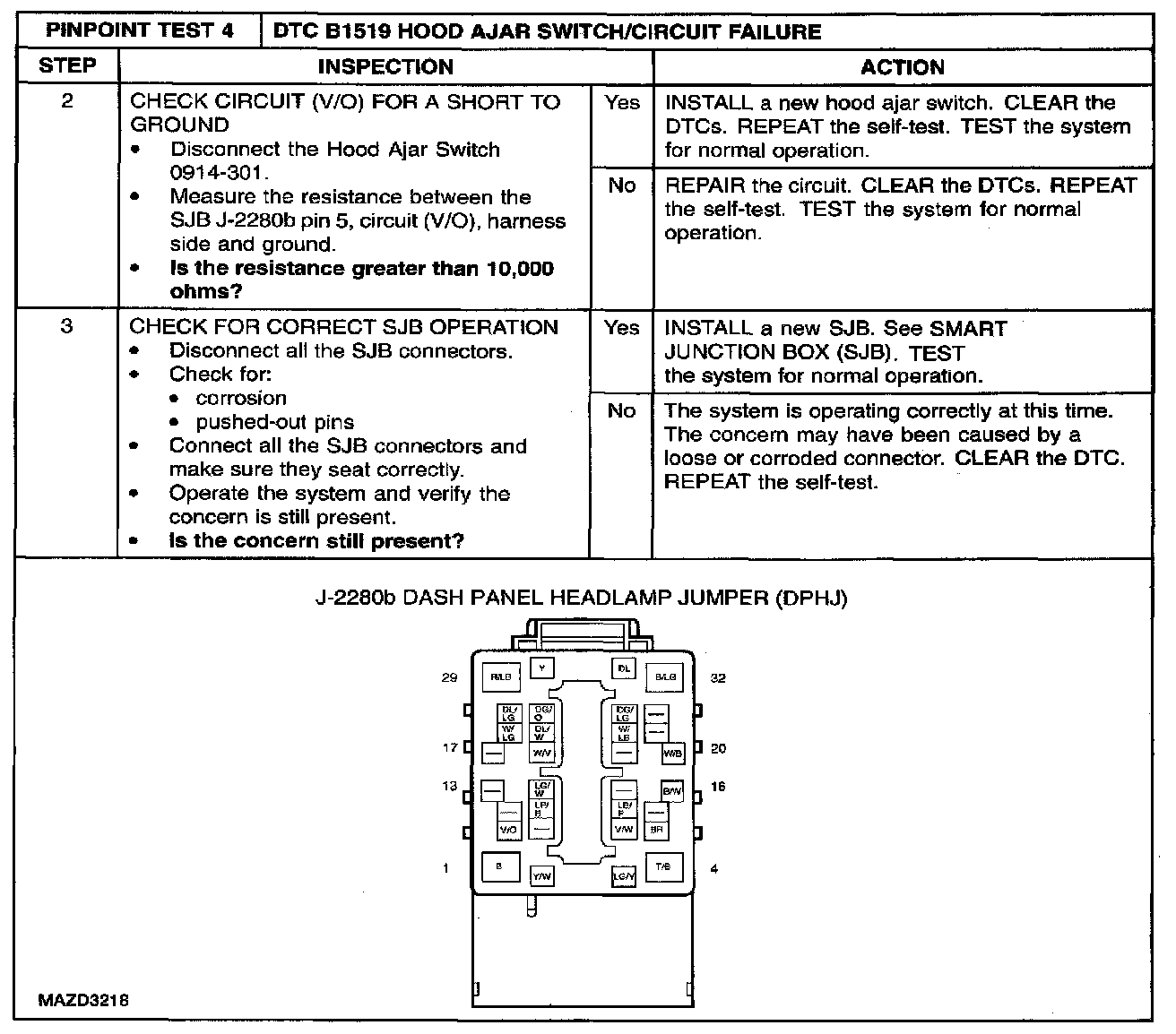

Step 2 - 3:
Normal OperationThe SJB sends a voltage signal to the hood ajar switch through circuit (V/O). When the hood is opened, the hood ajar switch routes the signal to ground through circuit (B)
Possible Causes -
circuit (V/O) shorted to ground
-
hood ajar switch
-
SJB
