Pinpoint Test 6

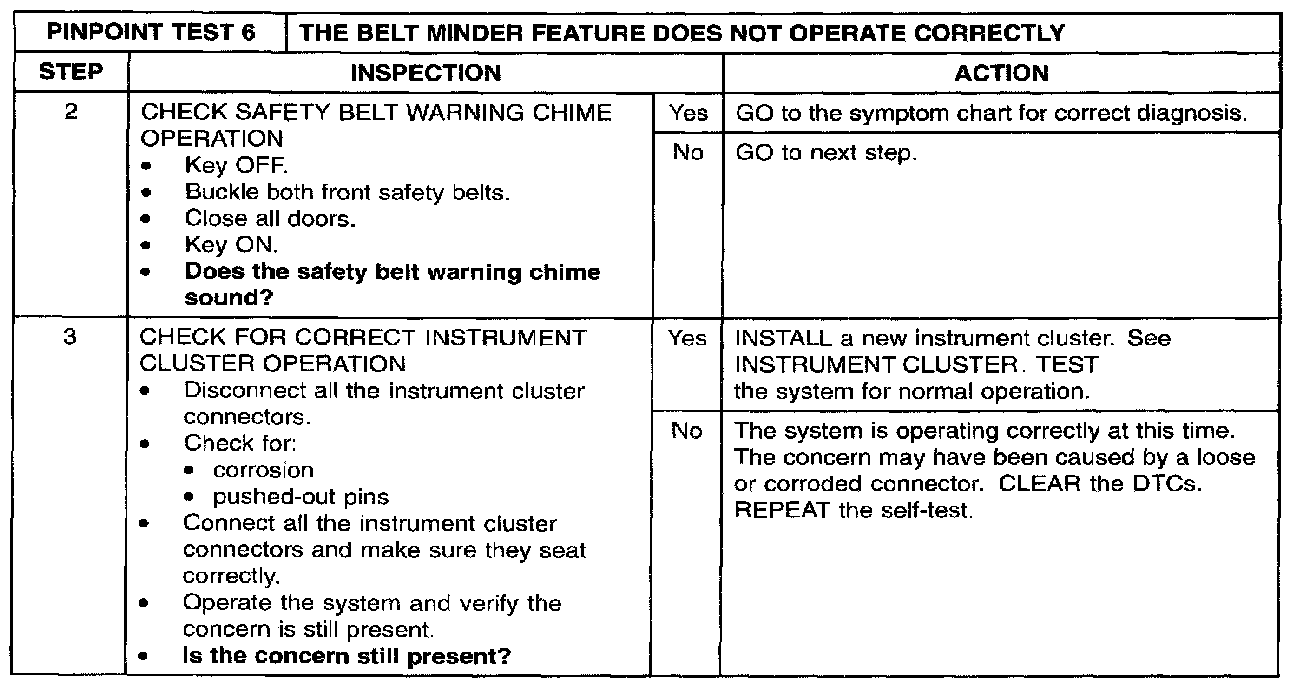

PINPOINT TEST 6: THE BELT MINDER FEATURE DOES NOT OPERATE CORRECTLY

Step 1:

Step 2 - 3:

Normal Operation
The instrument cluster sounds the belt minder warning chime every 30 seconds for a duration of 6 seconds. This feature is only enabled after the current safety belt warning is complete, the vehicle speed has exceeded 5 km/h (3 mph), and the safety belt remains unbuckled.

Possible Causes
- ROM
- instrument cluster
