Pinpoint Test 8

PINPOINT TEST 8: THE TURN SIGNAL LEFT ON CHIME IS INOPERATIVE

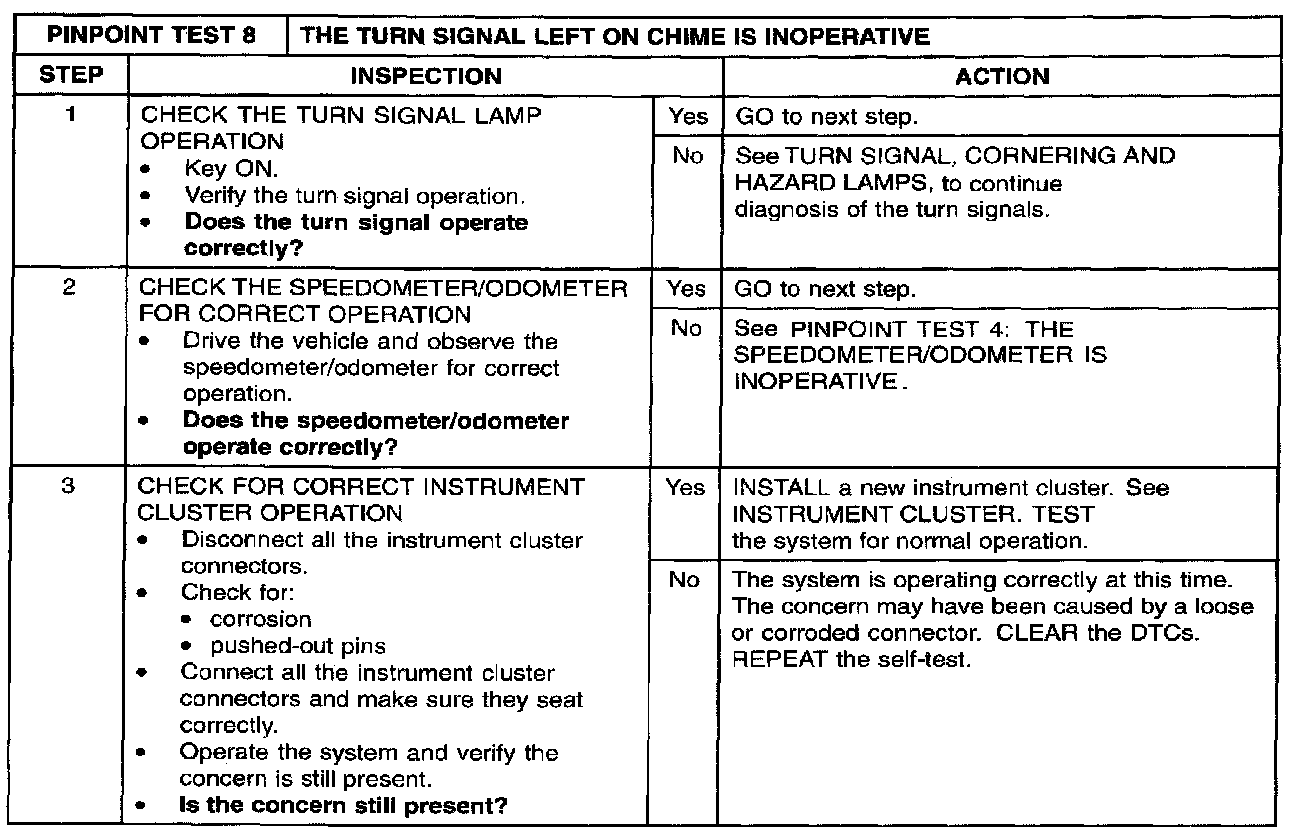

Step 1 - 3:






Normal Operation
The turn signal left on chime will sound when the vehicle travels for more than 0.8 km (0.5 mile) with the turn signal on. The SJB communicates the turn signal switch status to the instrument cluster through the CAN circuits and the ABS module communicates odometer count data to the instrument cluster through the CAN circuits.

Possible Causes
- instrument cluster
- ABS module
- SJB
