Pinpoint Test 2

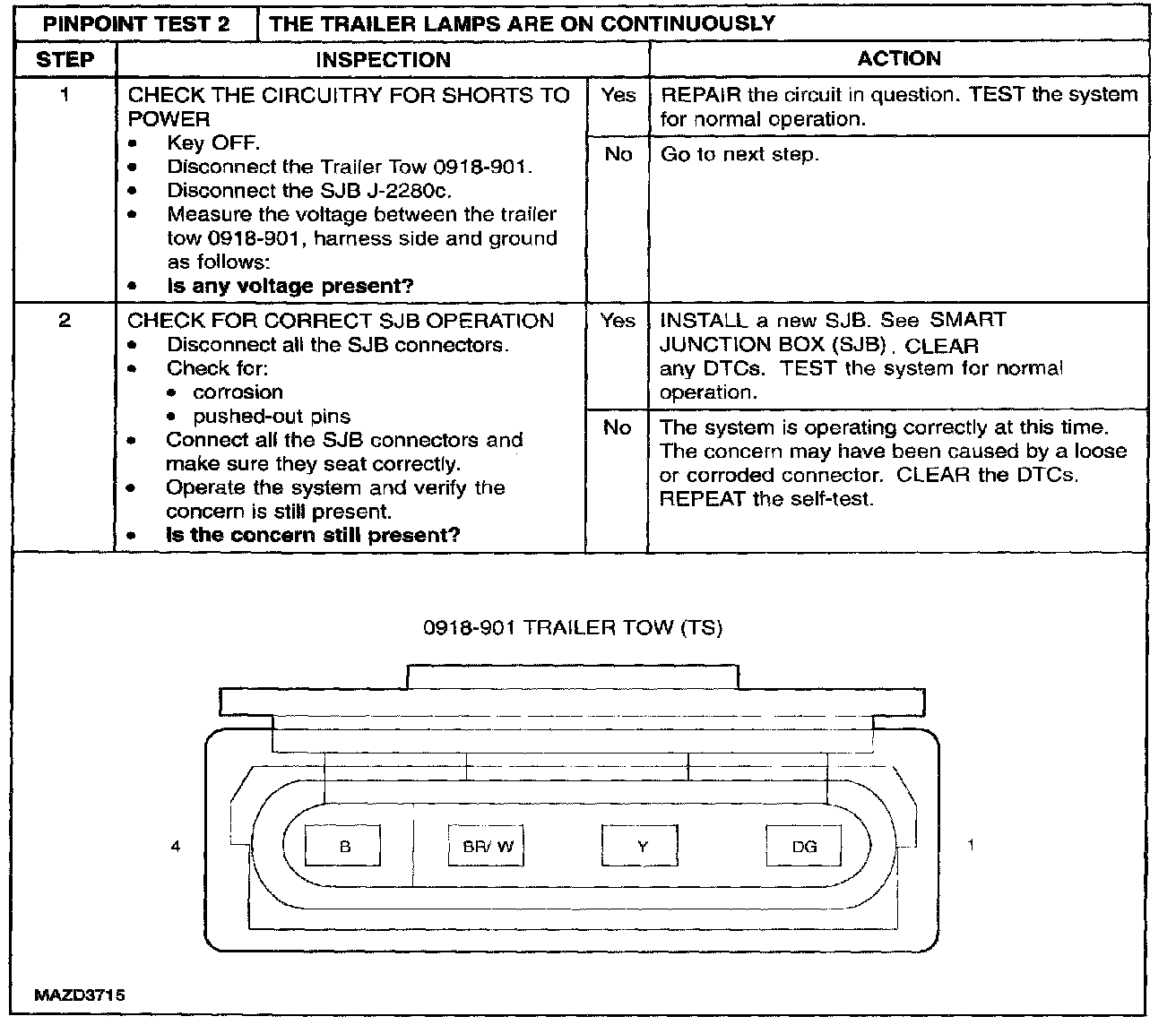

PINPOINT TEST 2: THE TRAILER LAMPS ARE ON CONTINUOUSLYStep 1 - 2:
Normal OperationPower to the trailer tow lamps is controlled by the SJB. Circuits (Y) and (DG) supply power to the trailer tow LH and RH stop/turn lamps respectively. Circuit (BR/W) supplies power to the trailer tow parking lamps.
Possible Causes -
circuit (DG) short to power
-
circuit (Y) short to power
-
circuit (BR/W) short to power
-
SJB
