Transaxle Support Insulator - Lower, Rear,

TRANSAXLE SUPPORT INSULATOR - LOWER, REAR, 2.3L

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the battery tray.

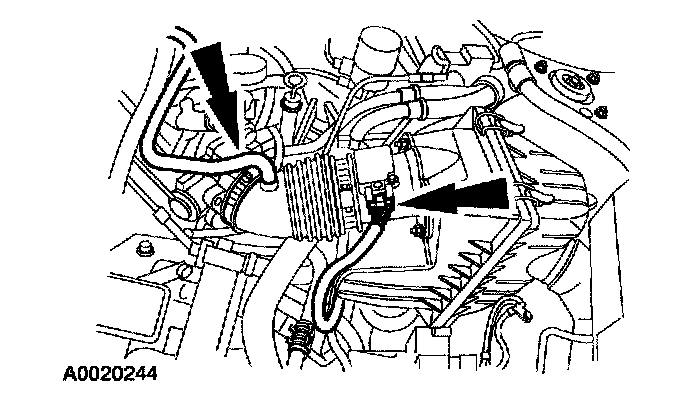

3. Disconnect the breather tube and mass air flow (MAF) sensor.

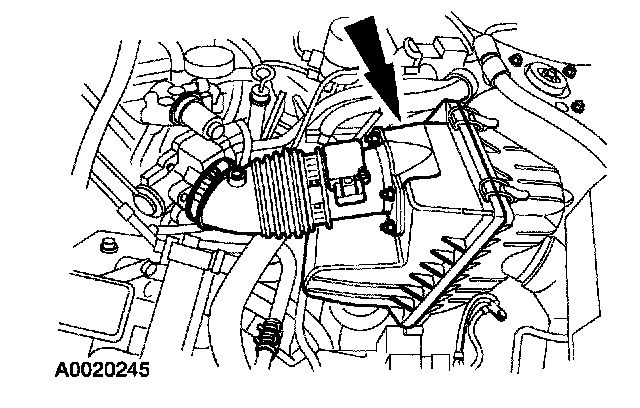

4. Remove the intake tube and air cleaner cover.





5. Remove the air cleaner assembly.





6. Remove the lower support insulator.
1. Remove the lower support insulator cross bolt.
2. Remove the lower support insulator nuts.
3. Remove the lower support insulator bolts.
4. Remove the lower support insulator.
7. To install, reverse the removal procedure.
