Seals and Gaskets: Service and Repair

HALFSHAFT OIL SEAL





Caution: New halfshaft oil seals should be installed anytime the halfshafts are removed. Failure to install new halfshafts seals may result in transaxle oil leak(s).

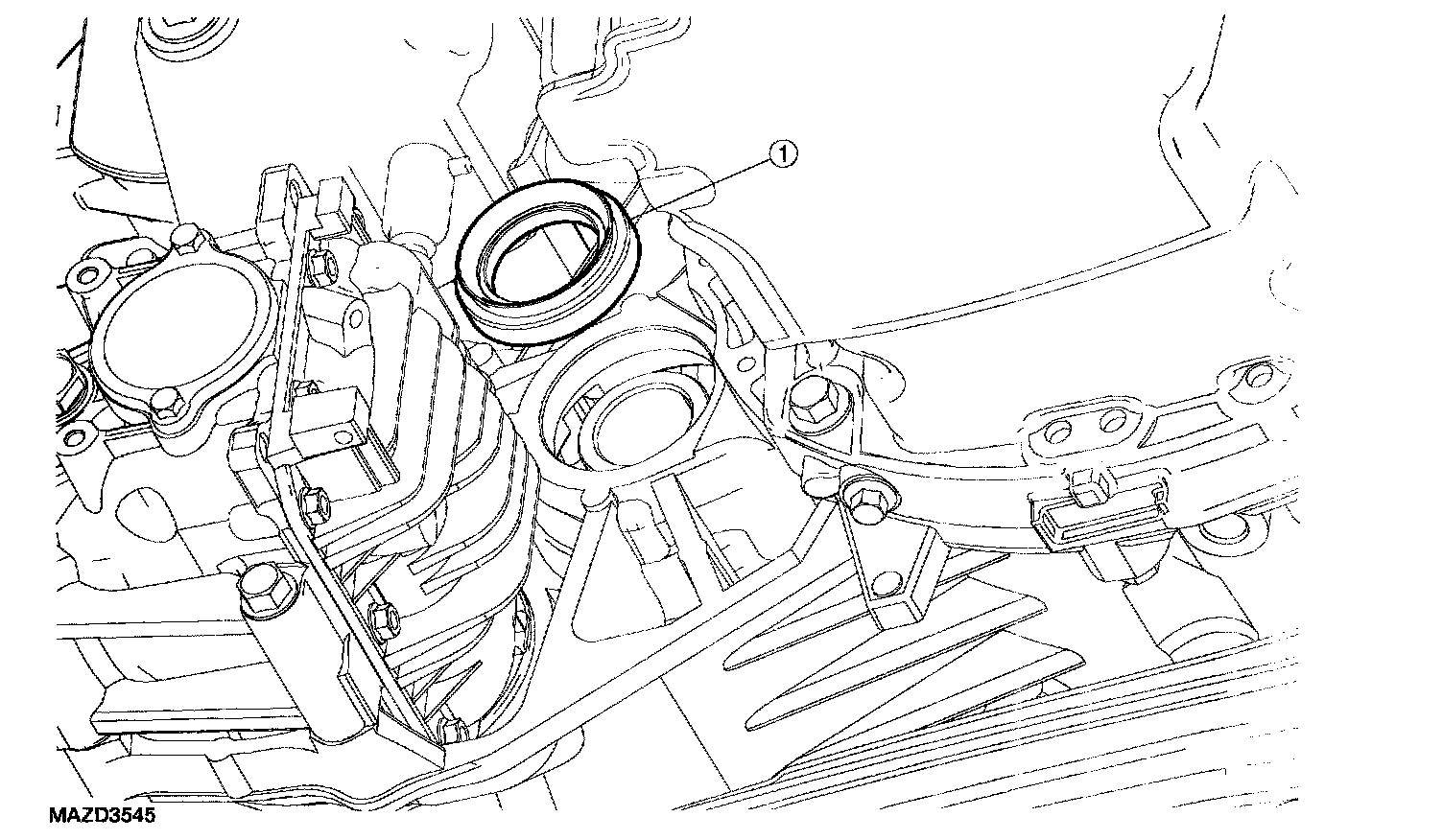

Note: RH intermediate shaft oil seal shown, LH halfshaft oil seal similar.

1. Remove the RH intermediate shaft or LH halfshaft.
2. Remove the halfshaft oil seal.





3. To install, reverse the removal procedure.

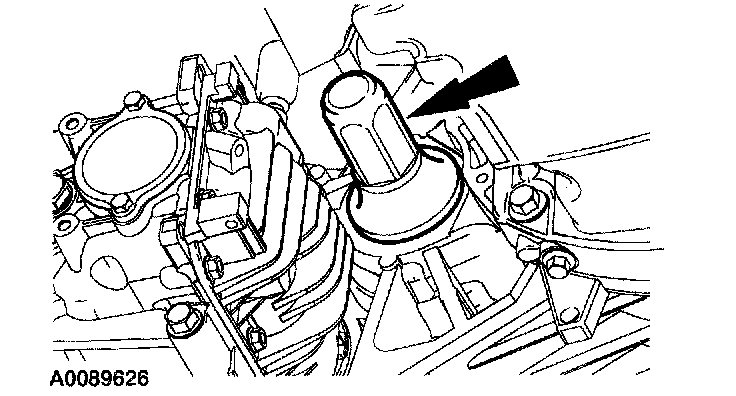

^ Using the special tool, install the halfshaft oil seal.
