Shifter M/T: Service and Repair

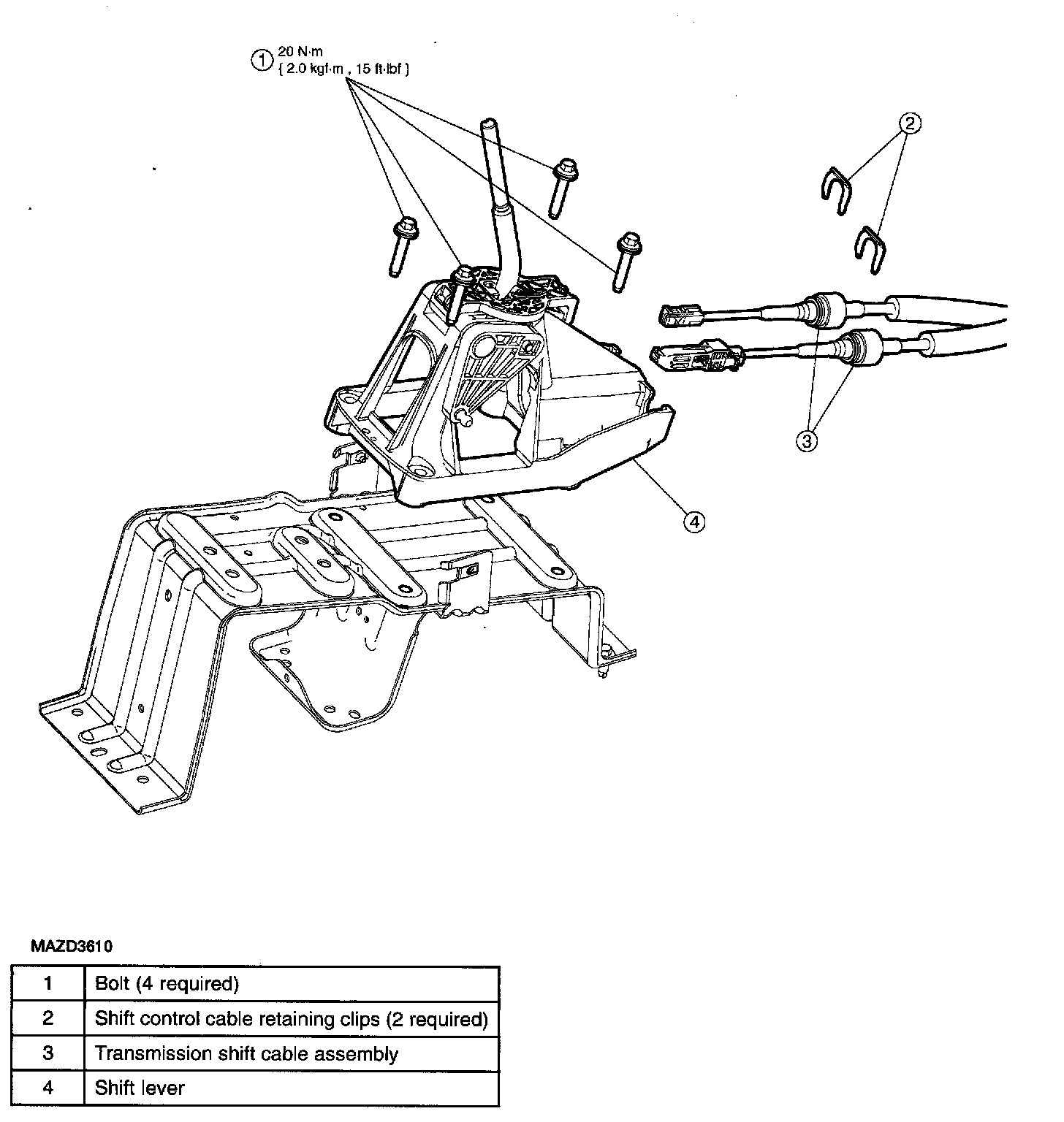

GEARSHIFT LEVER 1.
Remove the floor console.
2.
Remove the four gearshift lever bolts.
3.
Remove the shift cable clips.
4.
Disconnect the shift cables from the gearshift lever.
5.
Remove the gearshift lever.
6.
To install, reverse the removal procedure. Adjust the gearshift cables.
