Removal and Installation

POWER TAKE OFF UNIT - AUTOMATIC TRANSMISSION





Removal and Installation
1. Disconnect the battery.
2. Drain the transfer case.
3. Remove the front RH intermediate shaft.
4. Remove the driveshaft.





5. Remove the four bolts and the crossmember brace.
6. Remove the exhaust as required.

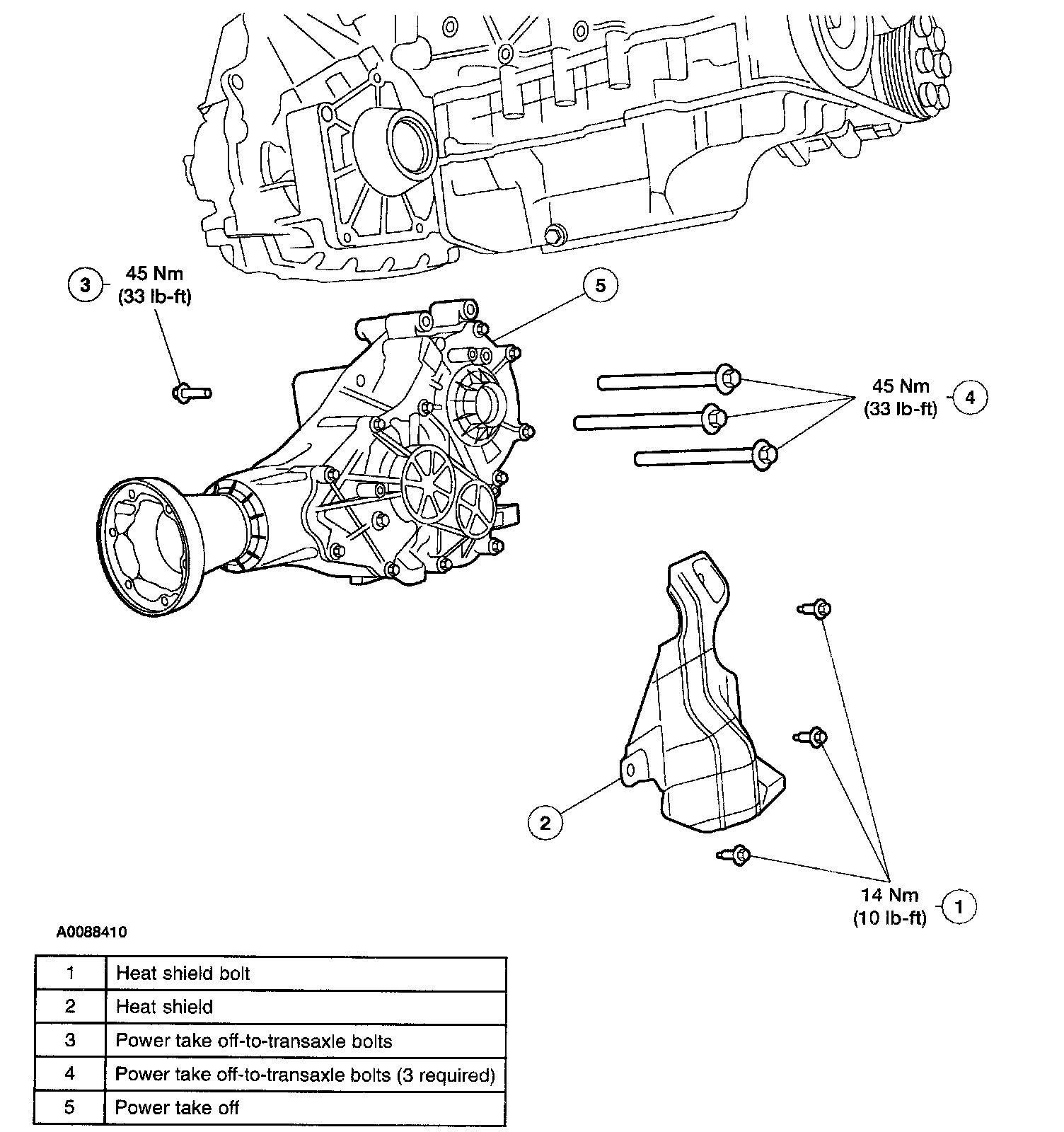

7. Remove the two bolts and the two nuts.





8. Remove the power take off (PTO) unit.

Caution: A new transfer case driven gear seal must be installed whenever the intermediate shaft or transfer case is removed from the vehicle.

Note: If necessary, replace the RH differential fluid seal.

9. To install, reverse the removal procedure.
