Dashboard Central Panel Removal/Installation
DASHBOARD CENTER PANEL REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the decoration panel.
3.
Remove the screws.
4.

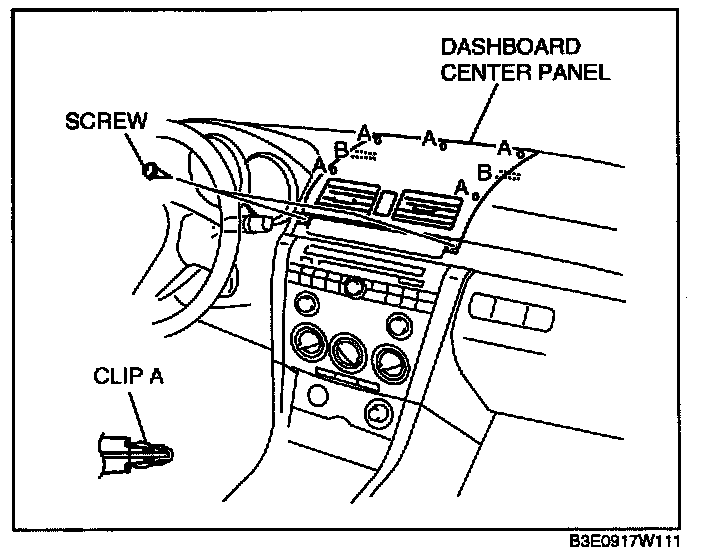

Pull the dashboard center panel outward and detach clips A and locator pins B.
5.
Disconnect the hazard warning switch connector.
6.
Remove the dashboard center panel.
7.
Install in the reverse order of removal.
