Pinpoint Test 1

PINPOINT TEST 1: ALL DOOR LOCKS ARE INOPERATIVE FROM ONE SWITCH

Normal Operation
The smart junction box (SJB) monitors circuits (P/Y), (P/LG), (O/B) and (Y/R) for a ground signal. If the door lock control switch connects circuit (P/LG) (driver door) or (O/B) (passenger door) to the ground circuit (B) the doors lock. If the door lock control switch connects circuit (P/Y) (driver door) or (Y/R) (passenger door) to the ground circuit (B) the doors unlock.

Possible Causes
- circuit (B) open
- circuit (P/Y) open or short to ground
- circuit (P/LG) open or short to ground
- circuit (O/B) open or short to ground
- circuit (Y/R) open or short to ground
- driver door lock control switch
- passenger door lock control switch
- SJB

Chart 1:

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

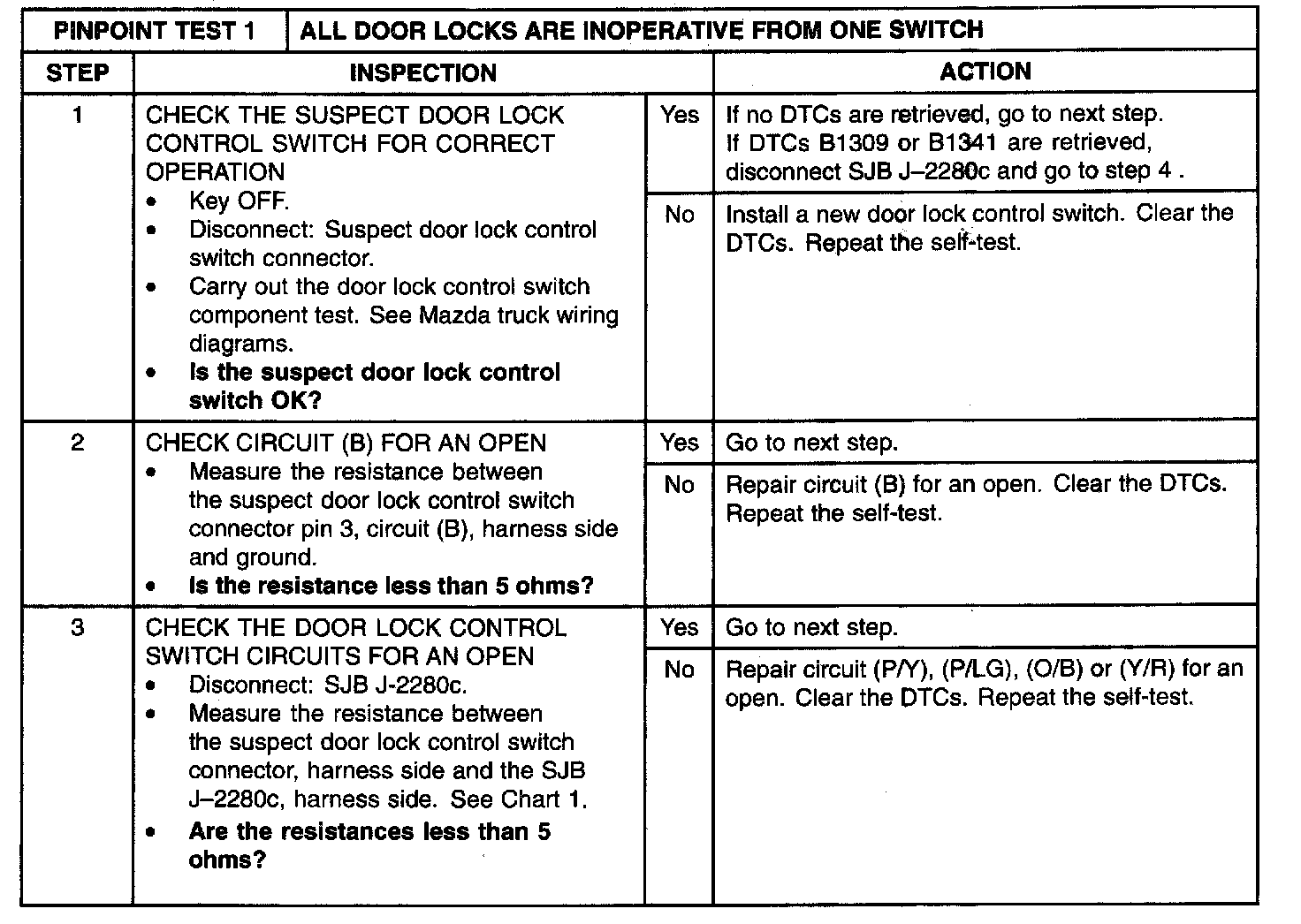

Step 1-Step 3:

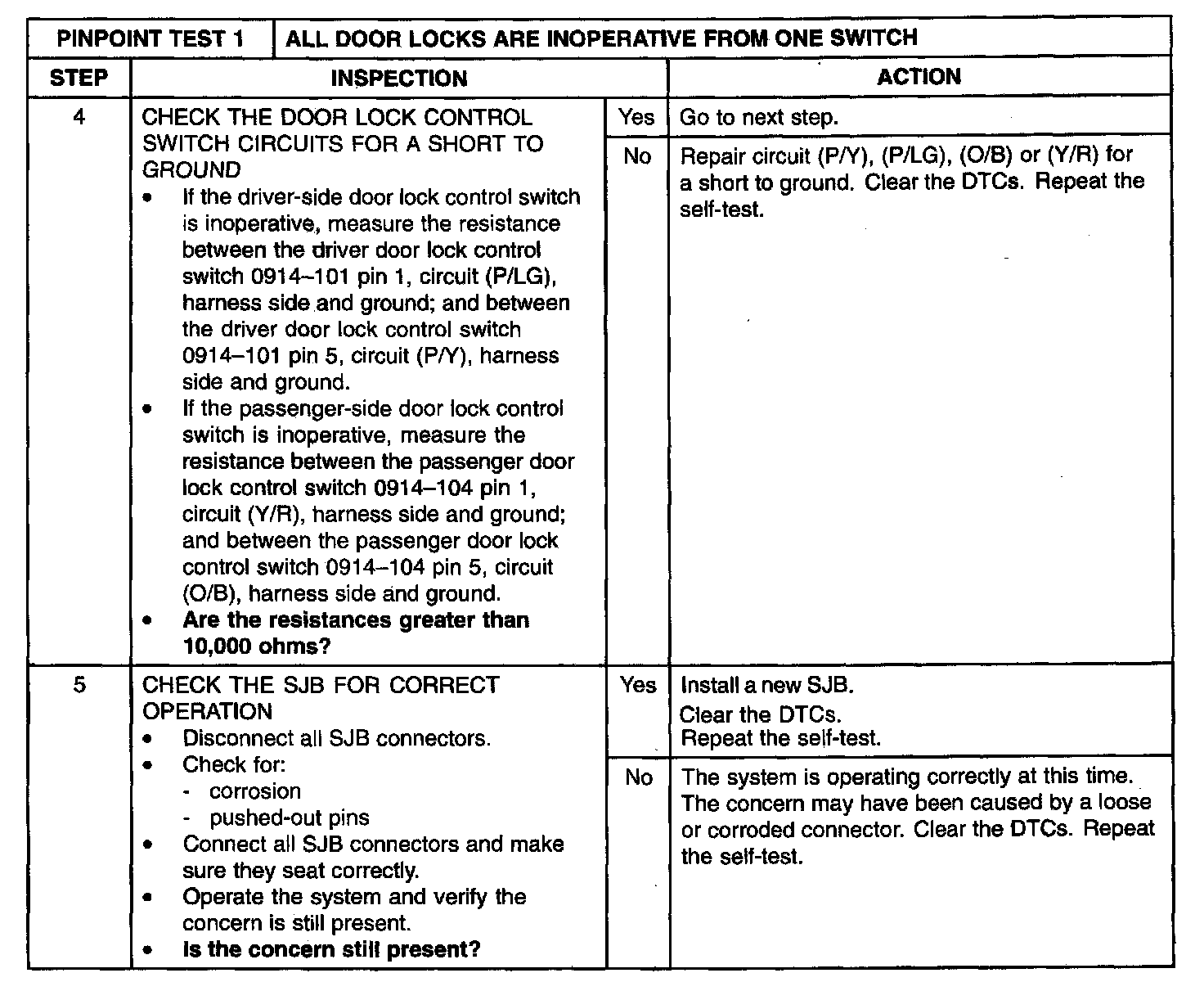

Step 4-Step 5:
