Pinpoint Test 2

PINPOINT TEST 2: ONE TURN SIGNAL/HAZARD LAMP IS INOPERATIVE

Normal Operation
When the multifunction switch is placed in the LH or RH TURN position, the multifunction switch routes the voltage to the LH and RH front turn lamps through circuits (LG/W) and (W/LB), respectively. The multifunction switch also routes the voltage to the LH and RH rear turn lamps through circuits (LG/O) and (O/LB), respectively. Ground for the turn lamps is provided through circuit (B).

Possible Causes
- Circuit (W/LB) open
- Circuit (LG/W) open
- Circuit (O/LB) open
- Circuit (LG/O) open
- Circuit (B) open
- Multifunction switch

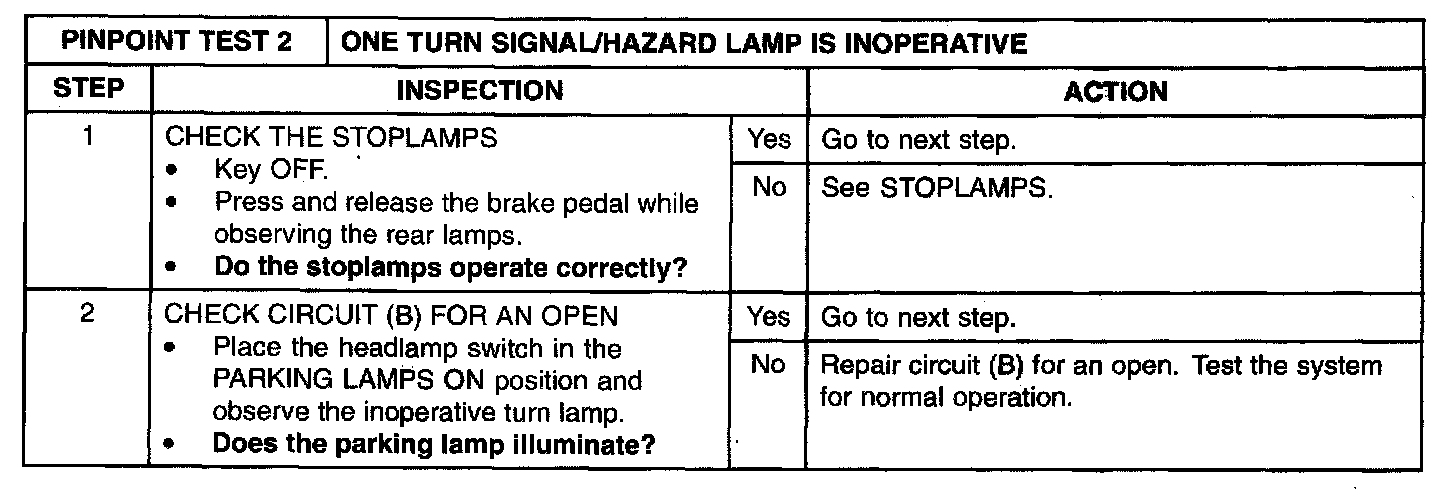

Step 1-Step 2:

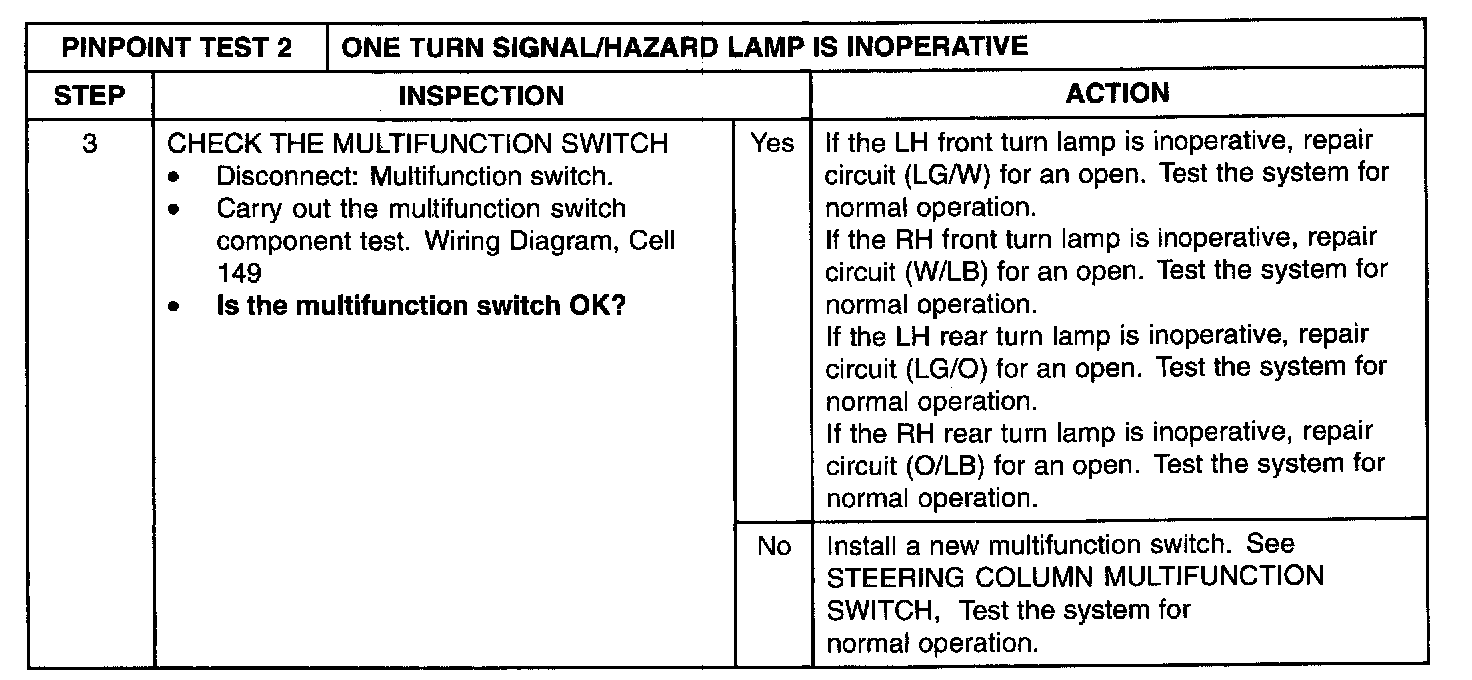

Step 3:
