Engine Oil: Service and Repair
ENGINE OIL REPLACEMENT 1.
Warm up the engine to normal operating temperature
2.
Remove the oil filler cap and oil drain plug.
3.
Drain the oil into a suitable container.
4.
Install a new gasket and the drain plug.
Tightening torque
28 Nm (2.9 kgf-cm, 21 ft. lbs.) 5.

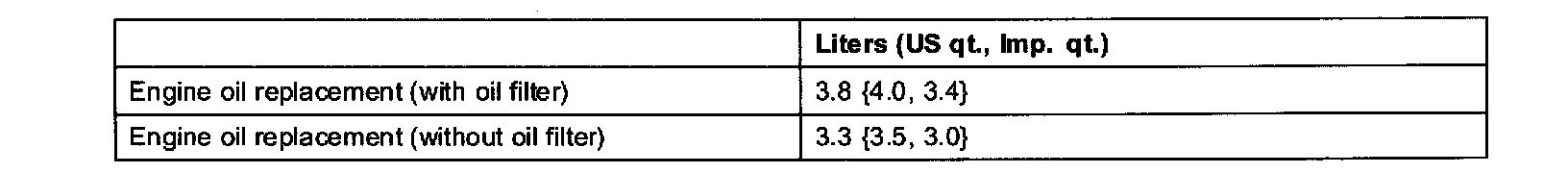

Refill the engine with the specified type and amount of engine oil.
