Pinpoint Test 4

PINPOINT TEST 4: NO POWER IN START

Normal Operation
The ignition switch START circuit provides fused battery voltage along circuits (R/LB) and (LG/V) to the smart junction box (SJB) when the key is in the START position.

Possible Causes
- Circuit shorted
- Ignition switch
- SJB

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

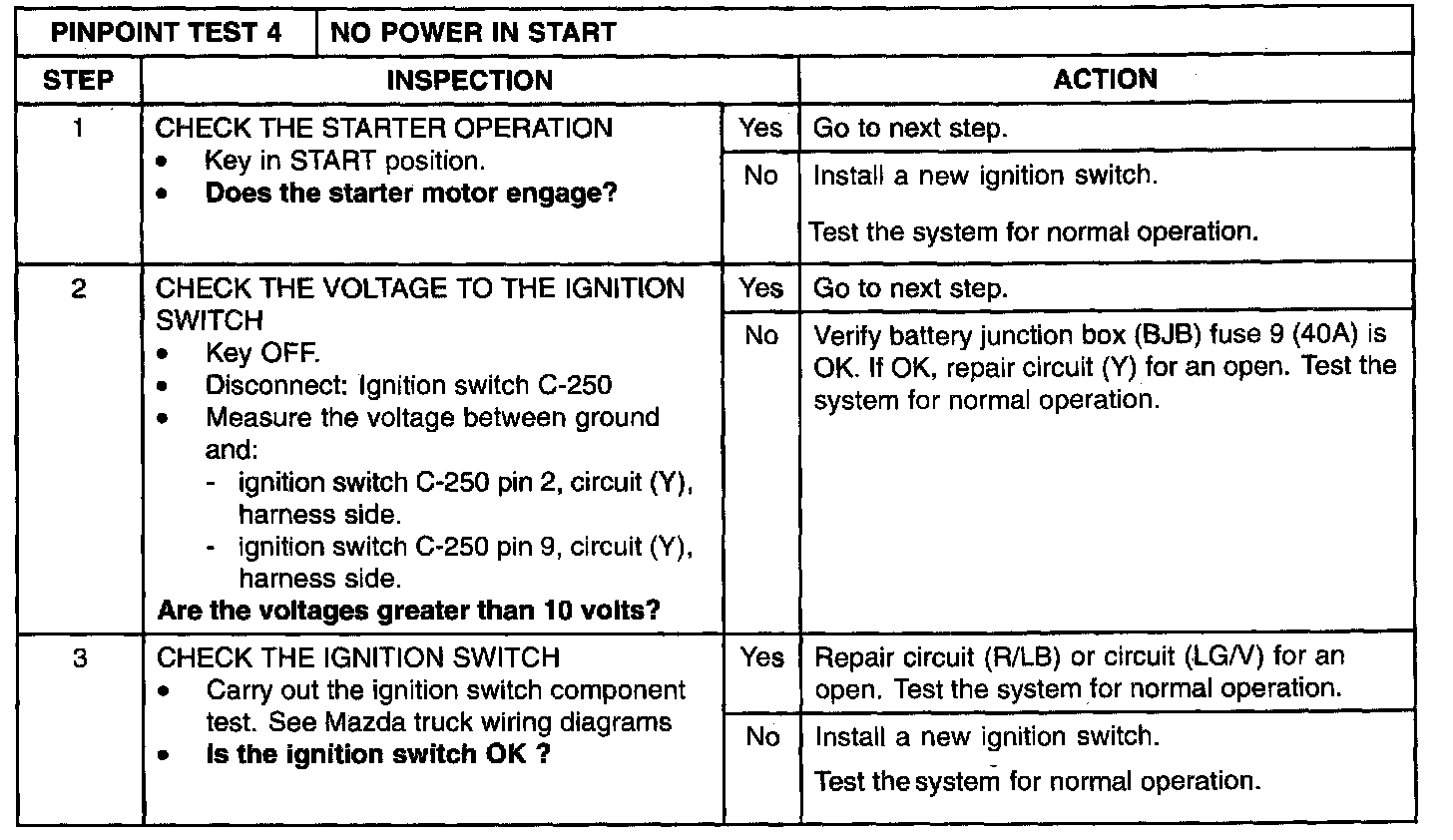

Step 1-Step 3:
