Steering Angle Sensor: Service and Repair

STEERING SENSOR RING REMOVAL / INSTALLATION

Caution:
^ The steering column must be in the locked position, or the lower end of the column wired In such a way that the steering column does not rotate, resulting in damage to the air bag sliding contact.

Note:
^ Discard the upper intermediate shaft to steering column shaft bolt upon removal. Do not reuse; install a new bolt.





1. Remove the upper intermediate steering shaft to column shaft bolt.
1 Remove and discard the steering column shaft pinch bolt.
2 Slide the intermediate shaft yoke from the steering column.

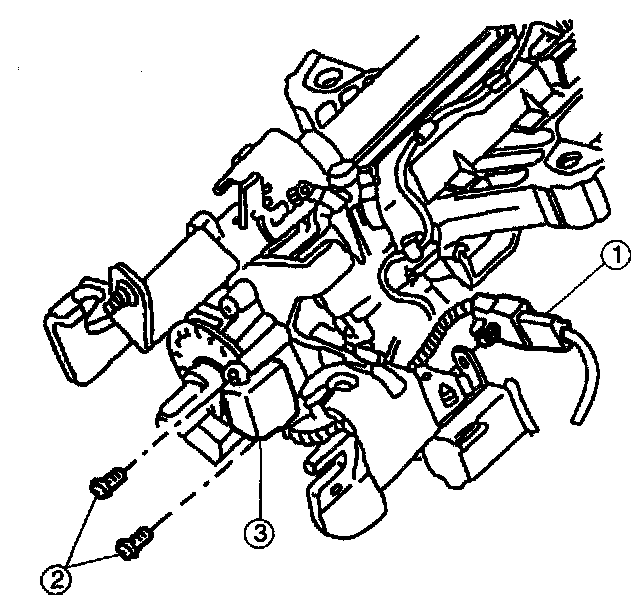

2. Remove the shock absorber electronic steering sensor.
1 Disconnect the electrical connector.
2 Remove the screws.
3 Remove the shock absorber electronic steering sensor.





3. Remove the sensor ring.
1 Remove the steering column lower bearing spring.
2 Remove the sensor ring.
4. Install in reverse order of removal.
