Pinpoint Test 11

AUTOMATIC TRANSMISSION PINPOINT TEST 11: SHIFT CONCERNS: SOME OR ALL SHIFTS MISSING

Note: To diagnose specific no shift concerns, see the appropriate shift test.
No Shift, 1-2,
See AUTOMATIC TRANSMISSION PINPOINT TEST 19: SHIFT CONCERNS: NO 1-2 SHIFT (AUTOMATIC). Pinpoint Test 19
No Shift, 2-3,
See AUTOMATIC TRANSMISSION PINPOINT TEST 20: SHIFT CONCERNS: NO 2-3 SHIFT (AUTOMATIC). Pinpoint Test 20
No Shift, 3-4,
See AUTOMATIC TRANSMISSION PINPOINT TEST 21: SHIFT CONCERNS: NO 3-4 SHIFT (AUTOMATIC). Pinpoint Test 21

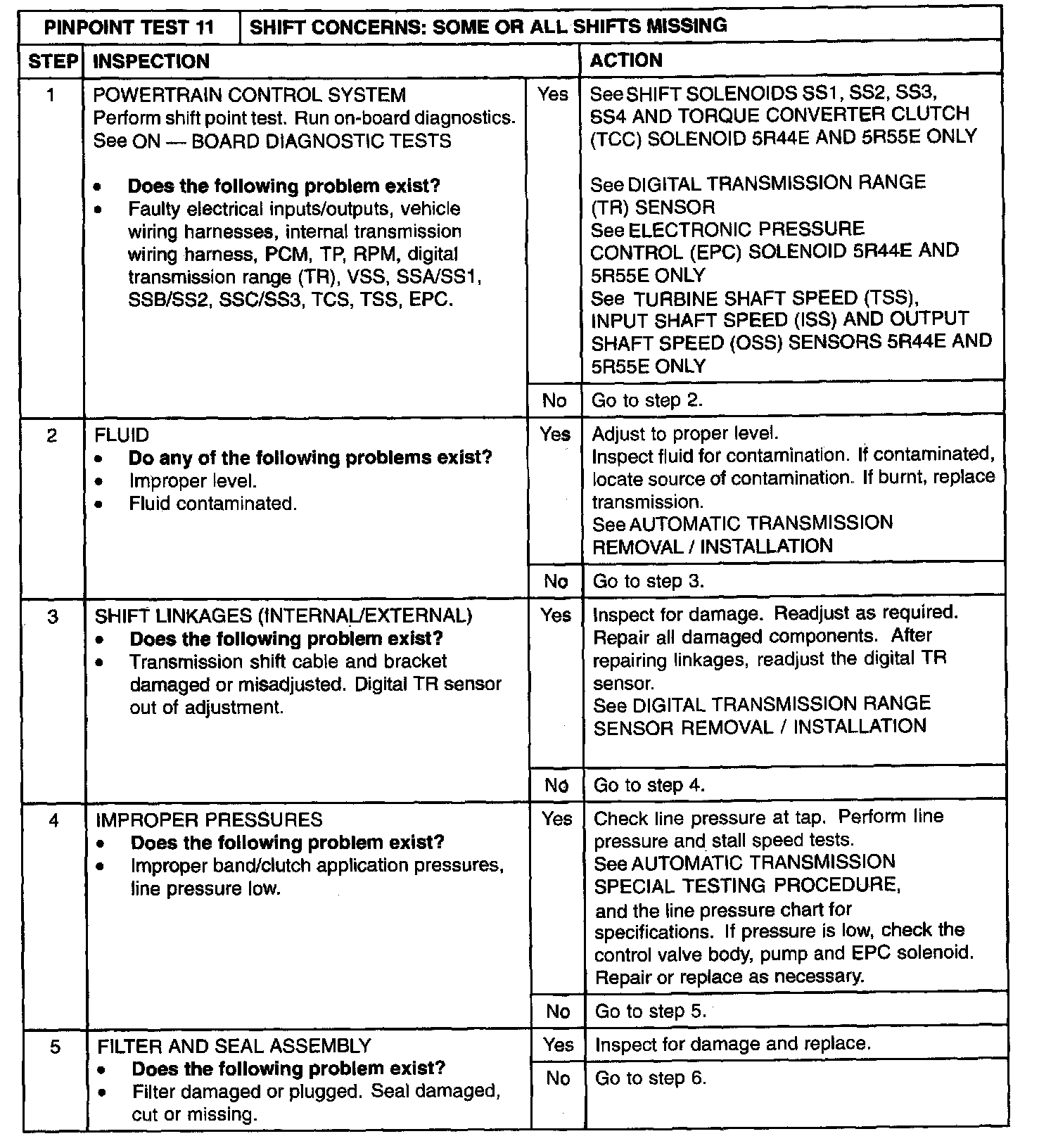

Step 1-Step 5:

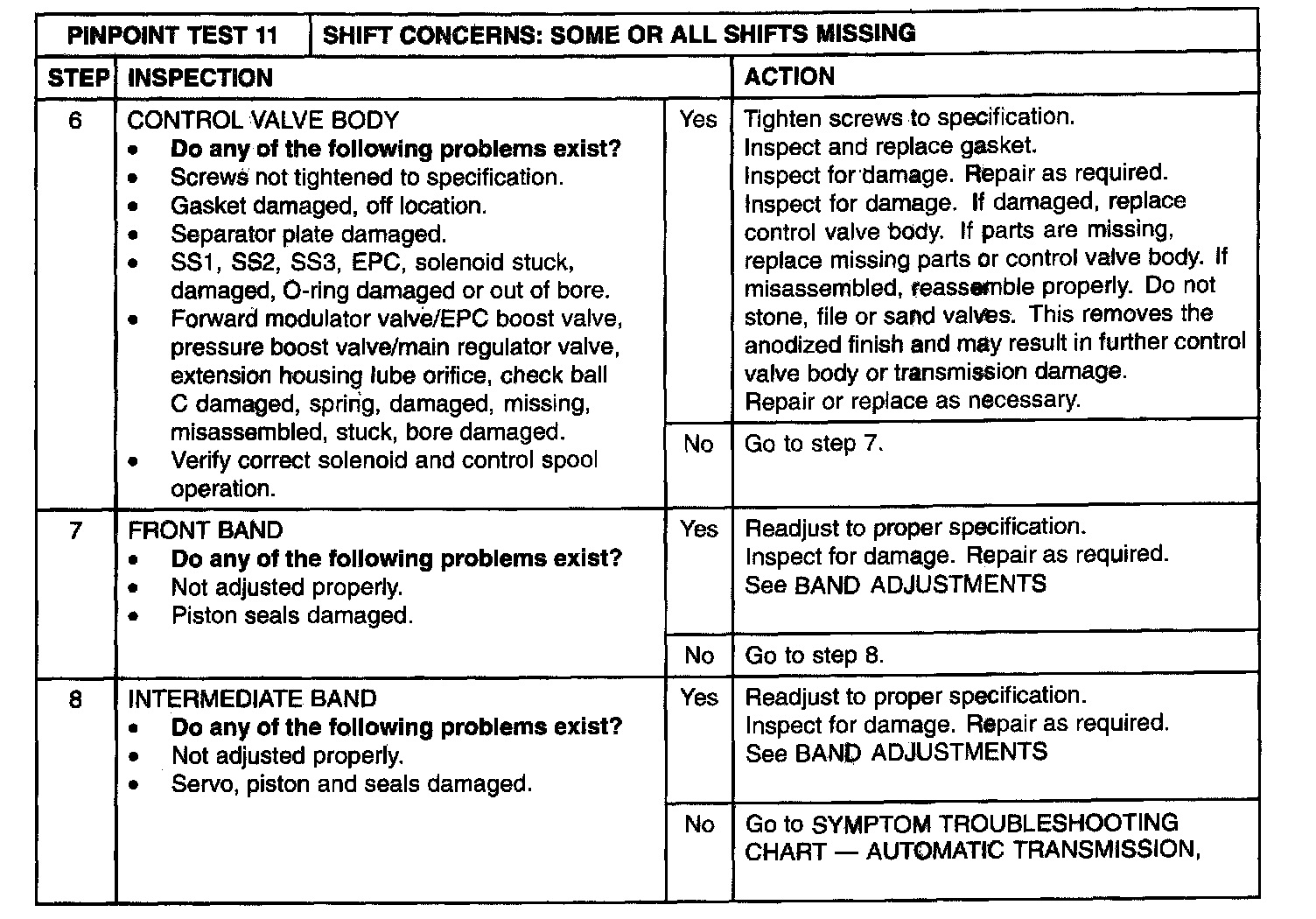

Step 6-Step 8:
