Pinpoint Test 12

AUTOMATIC TRANSMISSION PINPOINT TEST 12: SHIFT CONCERNS: TIMING EARLY / LATE (SOME / ALL)

Note: To diagnose specific shift-timing concerns, see the appropriate shift test.
Soft/Slipping Shift 1-2,
See AUTOMATIC TRANSMISSION PINPOINT TEST 22: SHIFT CONCERNS: SOFT / SLIPPING 1-2 ONLY (AUTOMATIC). Pinpoint Test 22
Soft/Slipping Shift 2-3,
See AUTOMATIC TRANSMISSION PINPOINT TEST 23: SHIFT CONCERNS: SOFT / SLIPPING 2- 3 ONLY (AUTOMATIC). Pinpoint Test 23
Soft/Slipping Shift 3-4,
See AUTOMATIC TRANSMISSION PINPOINT TEST 24: SHIFT CONCERNS: SOFT / SLIPPING 3-4 ONLY (AUTOMATIC). Pinpoint Test 24
Soft/Slipping Shift 4-3,
See AUTOMATIC TRANSMISSION PINPOINT TEST 25: SHIFT CONCERNS: SOFT / SLIPPING 4-3 DOWNSHIFTS. Pinpoint Test 25

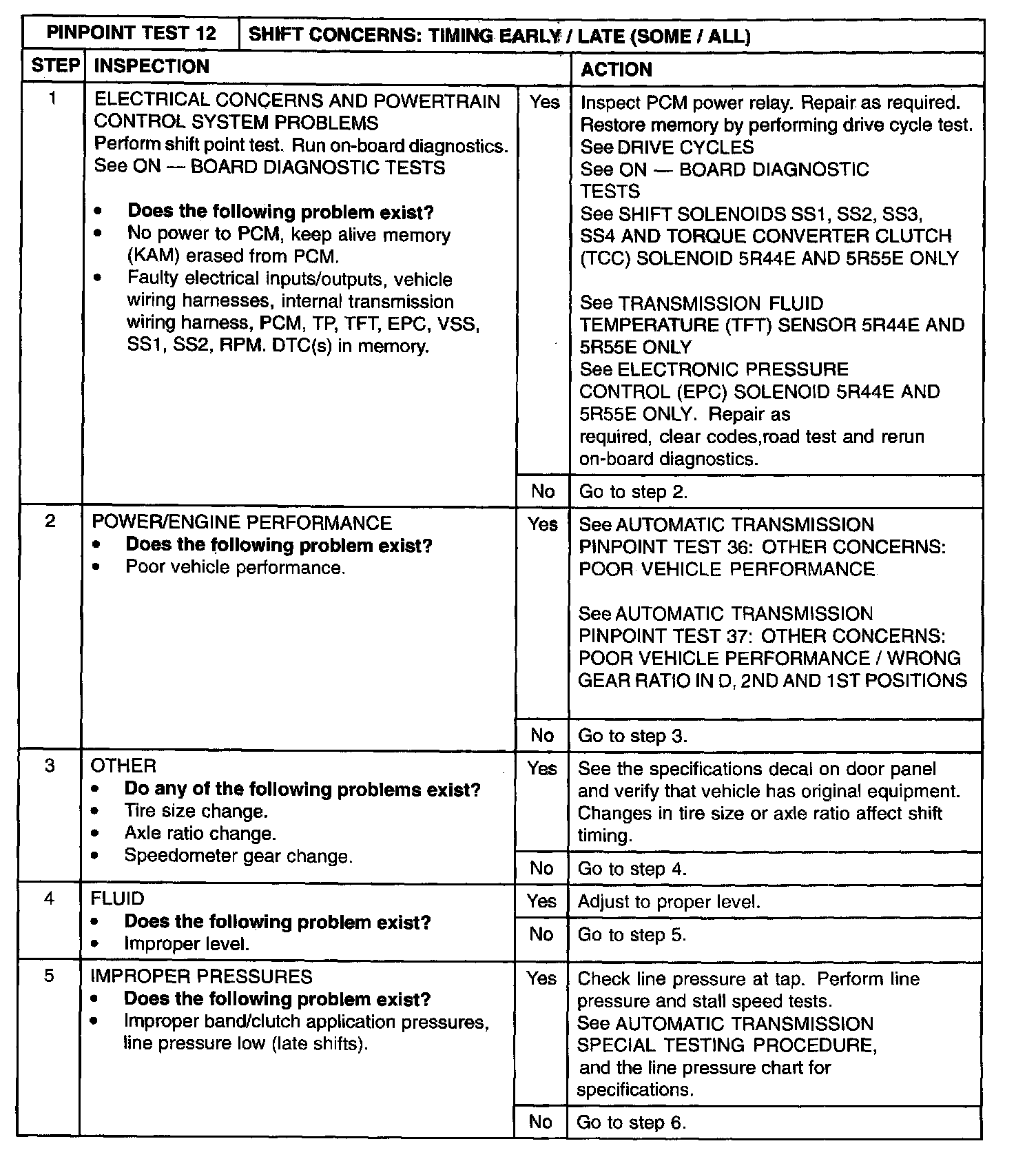

Step 1-Step 5:

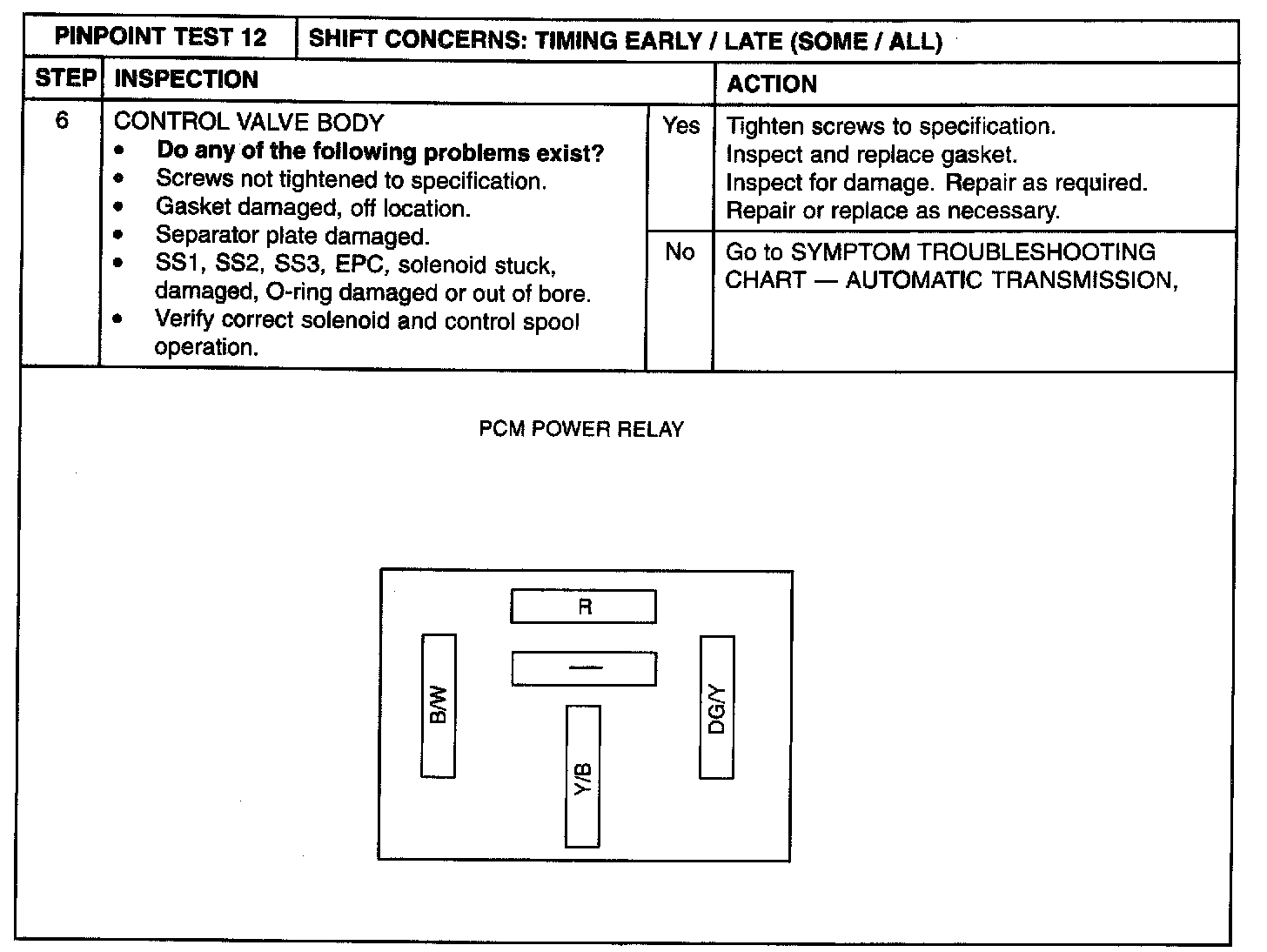

Step 6:
