Shift Solenoid Failure Mode Chart

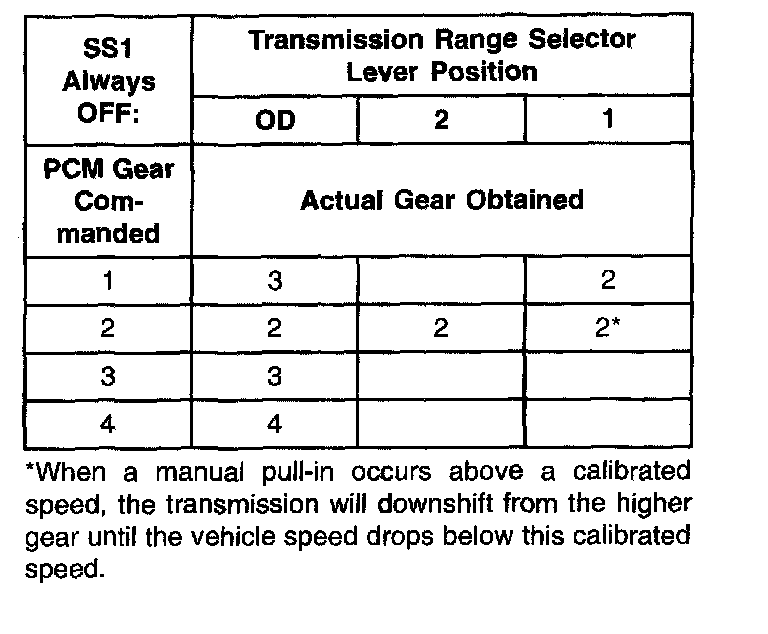

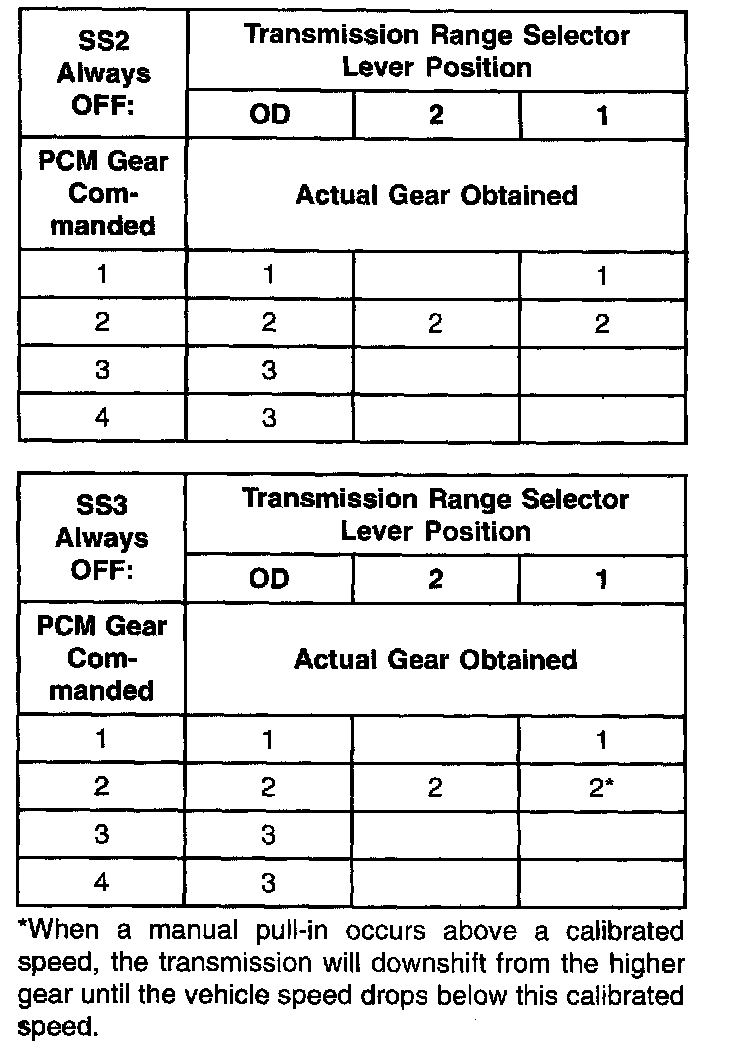

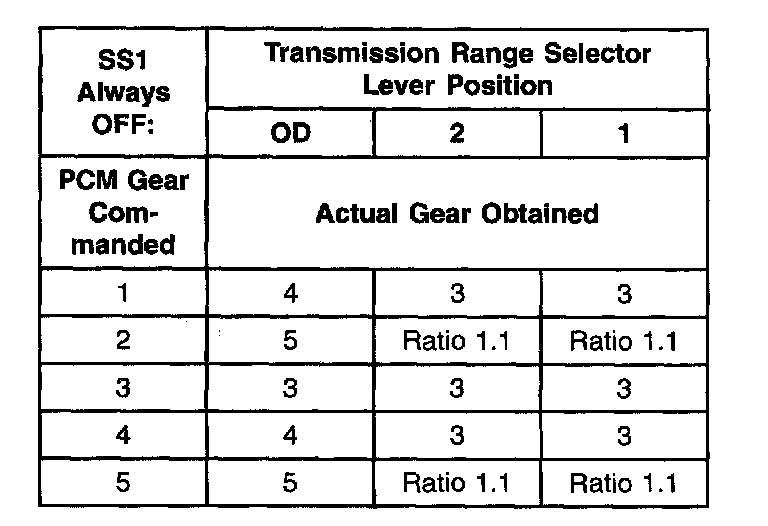

Shift Solenoid Failure Mode Chart Always Off

Failed ON due to PCM and/or vehicle wiring concerns, solenoid electrically, mechanically or hydraulically stuck OFF.

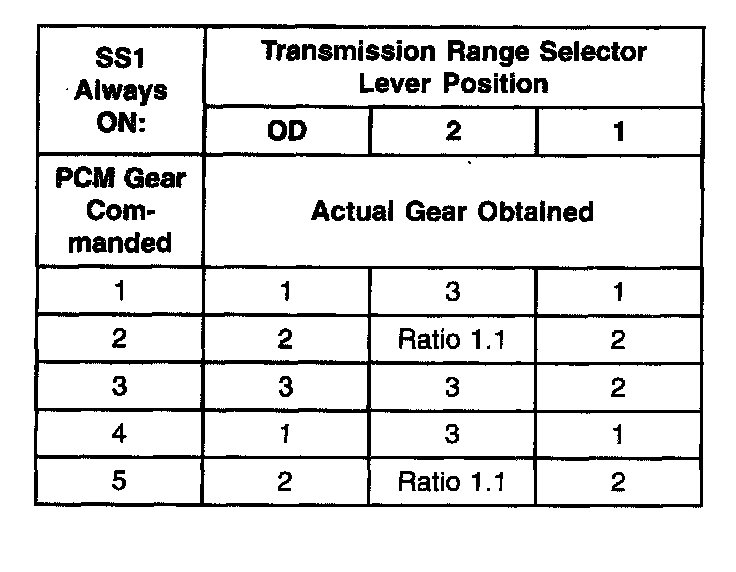

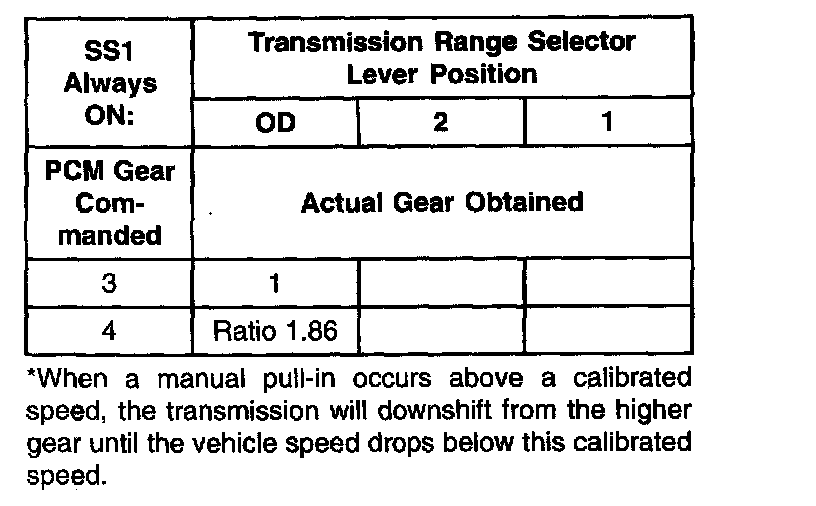

Shift Solenoid Failure Mode Chart Always On

Failed OFF due to PCM and/or vehicle wiring concerns, solenoid electrically, mechanically or hydraulically stuck ON.











Solenoid Application Chart

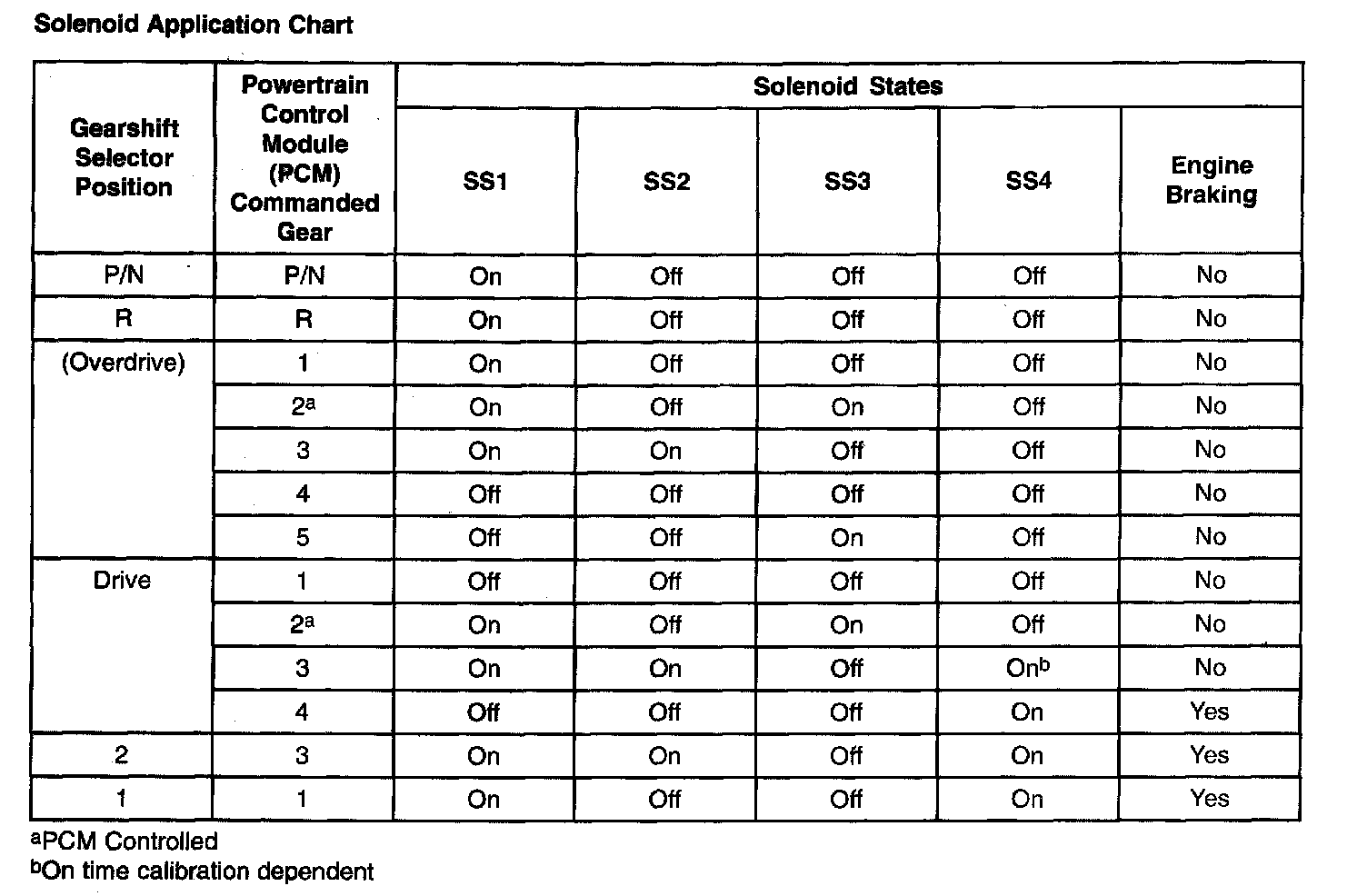

Solenoid Application Chart:

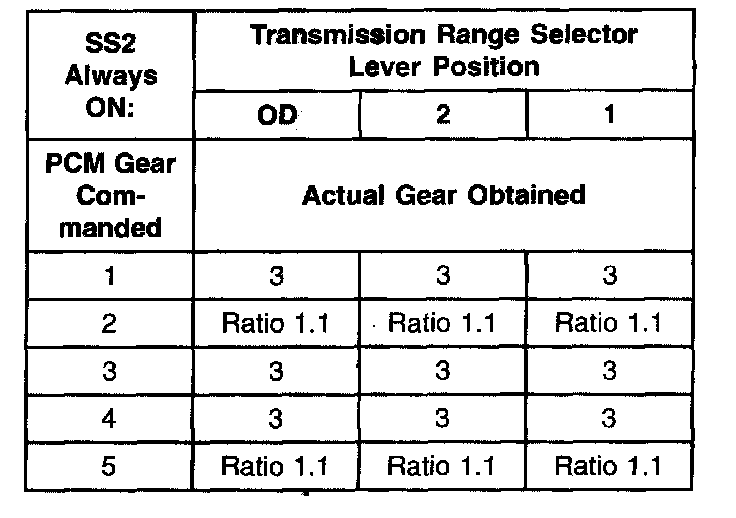

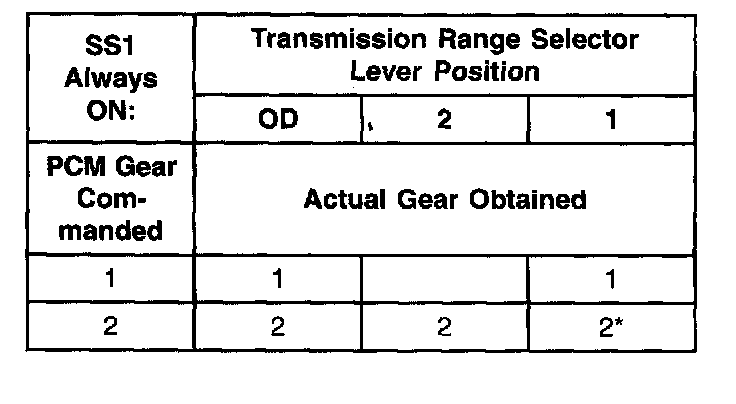

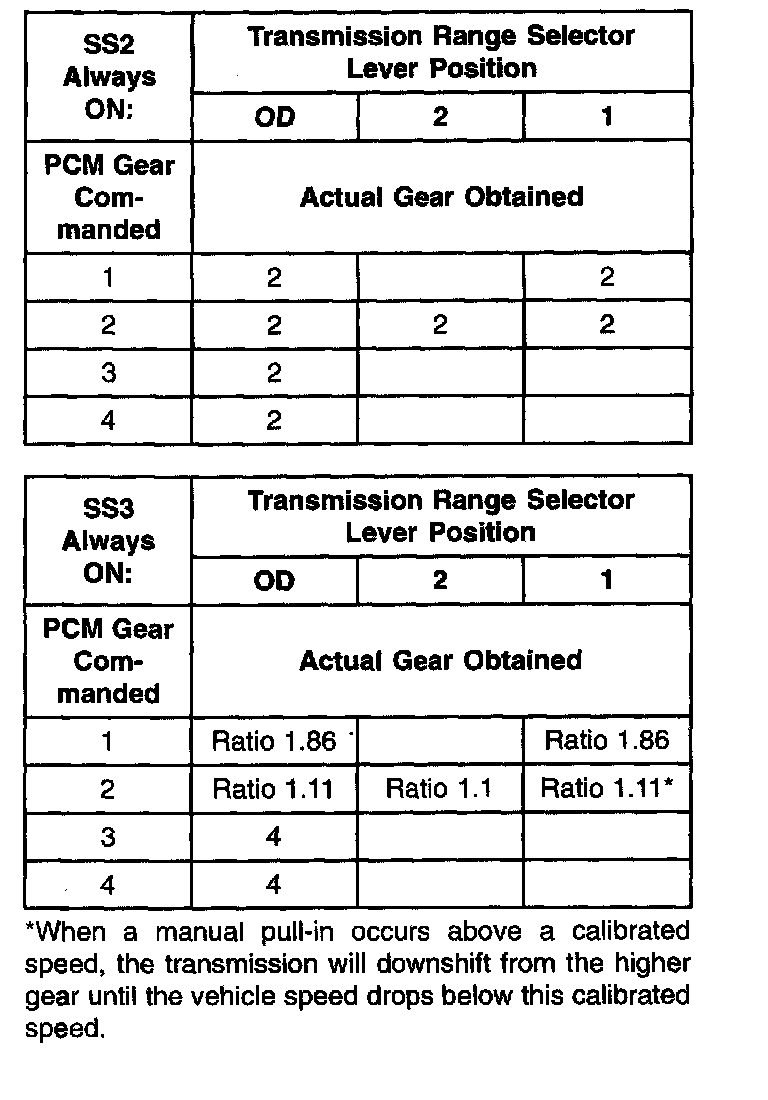

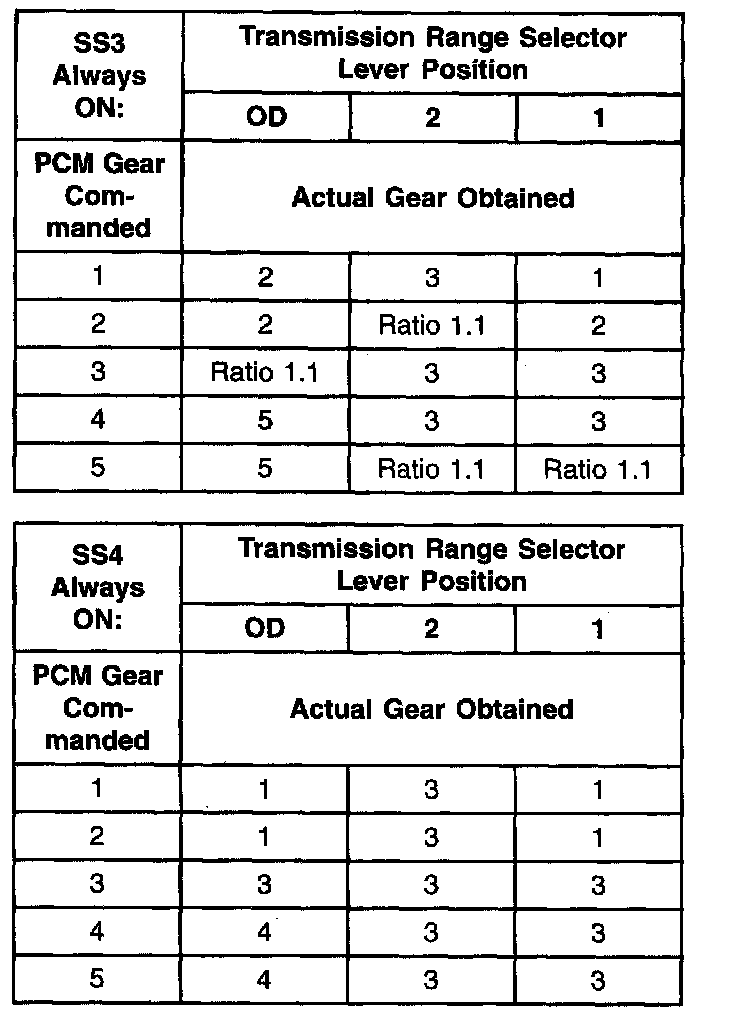

Shift Solenoid Failure Mode Chart Always On
Failed OFF due to PCM and/or vehicle wiring concerns, solenoid electrically, mechanically or hydraulically stuck ON.

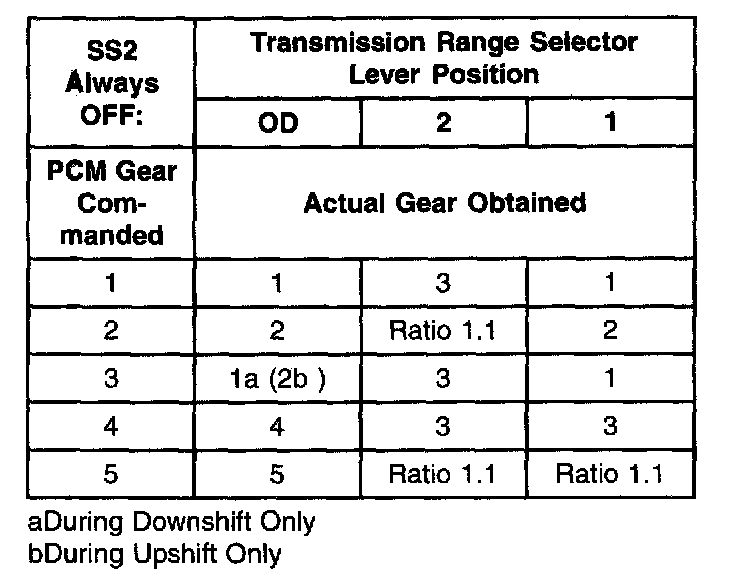

Shift Solenoid Failure Mode Chart Always Off
Failed ON due to PCM and/or vehicle wiring concerns, solenoid electrically, mechanically or hydraulically stuck OFF.
