Rear

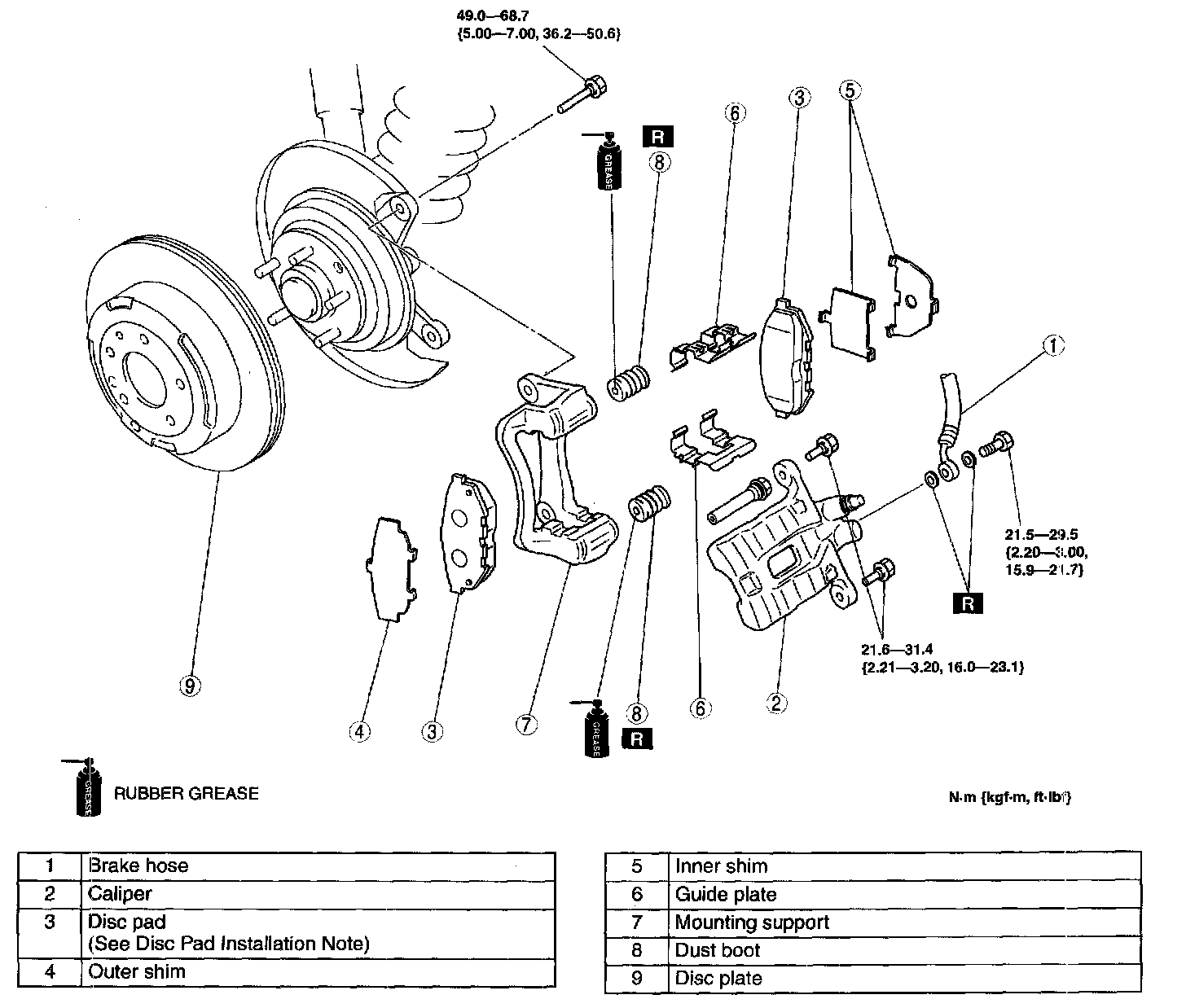

REAR BRAKE (DISC) REMOVAL/INSTALLATION

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, do the following.
1) Depress the brake pedal a few times. Then verify that the brakes do not drag.
2) Inspect the pedal-to-floor clearance.
3) Inspect the parking brake lever stroke.

Disc Pad Installation Note

1. Push the piston fully inward using the SST.
2. Install the disc pad.
