Immobilizer System (Advanced Keyless System)

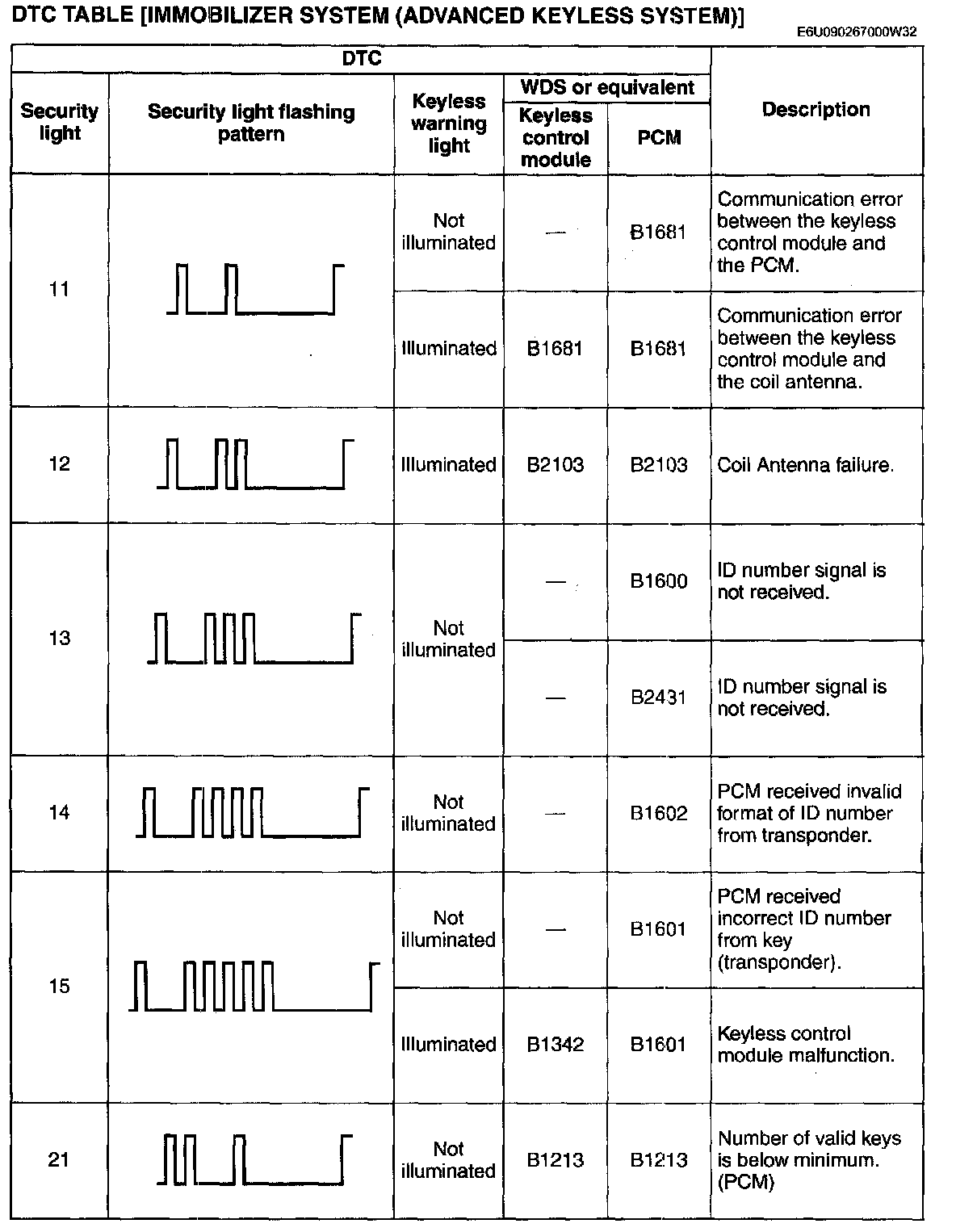

DTC TABLE [IMMOBILIZER SYSTEM (ADVANCED KEYLESS SYSTEM)]

DTC 11-21:

NOTE:
- Perform the following if the security light stays on:
- If engine stalls, go to symptom troubleshooting No. 11 "ENGINE STALLS/QUITS, ENGINE RUNS ROUGH, MISSES, BUCK/JERK, HESITATION/STUMBLE, SURGES" in Computers and Control System.
- If engine won't start, go to symptom troubleshooting No. 6 "CRANKS NORMALLY BUT WILL NOT START" in Computers and Control System.
