Positive Crankcase Ventilation: Service and Repair

POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM

Removal and Installation

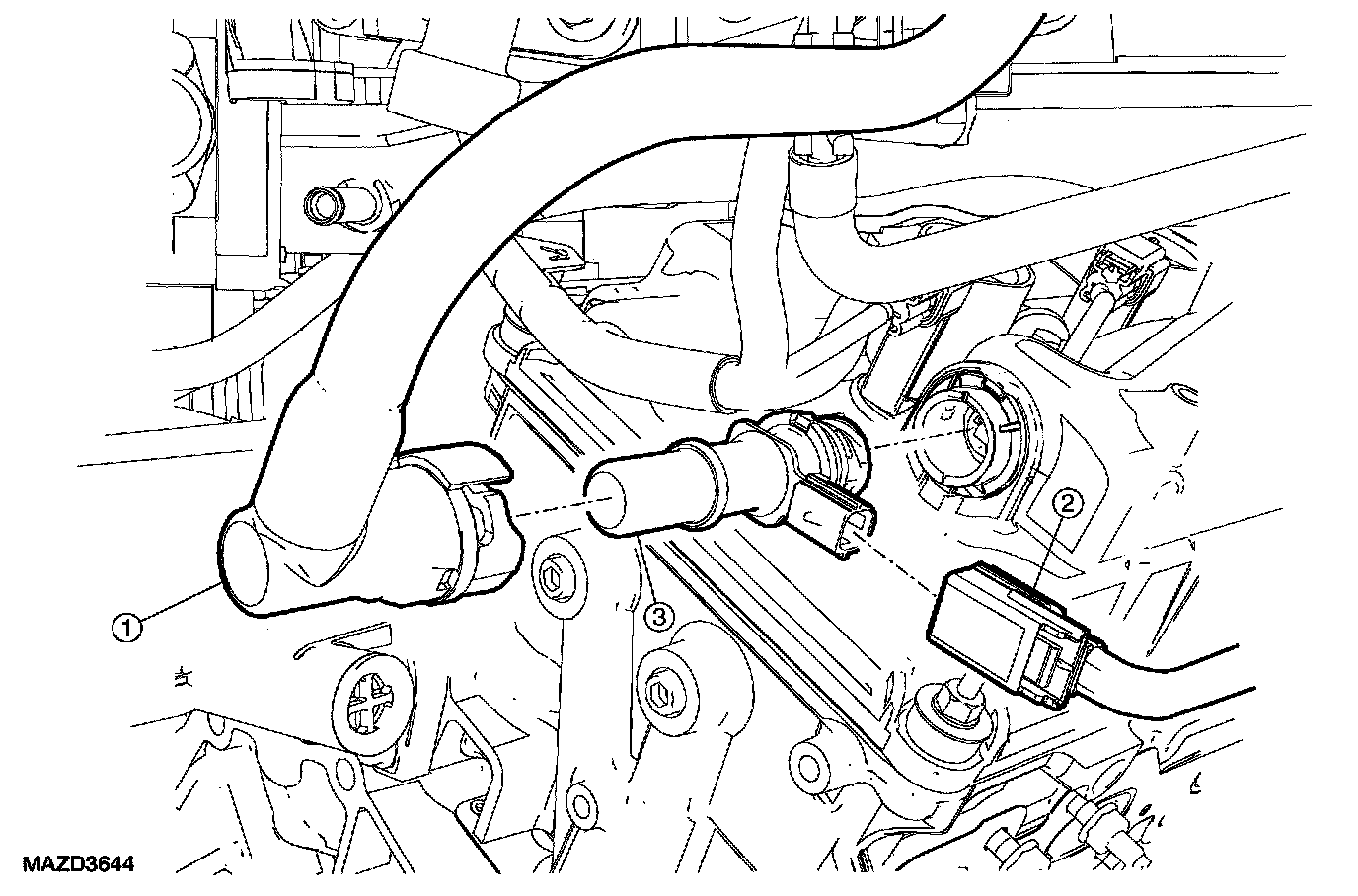

1. Remove the PCV valve.
1. Disconnect the positive crankcase ventilation (PCV) tube.
2. Disconnect the PCV valve electrical connector.

NOTE: Rotate the PCV valve counterclockwise to remove from the valve cover.

3. Remove the PCV valve.

2. To install, reverse the removal procedure.
