Antenna: Service and Repair

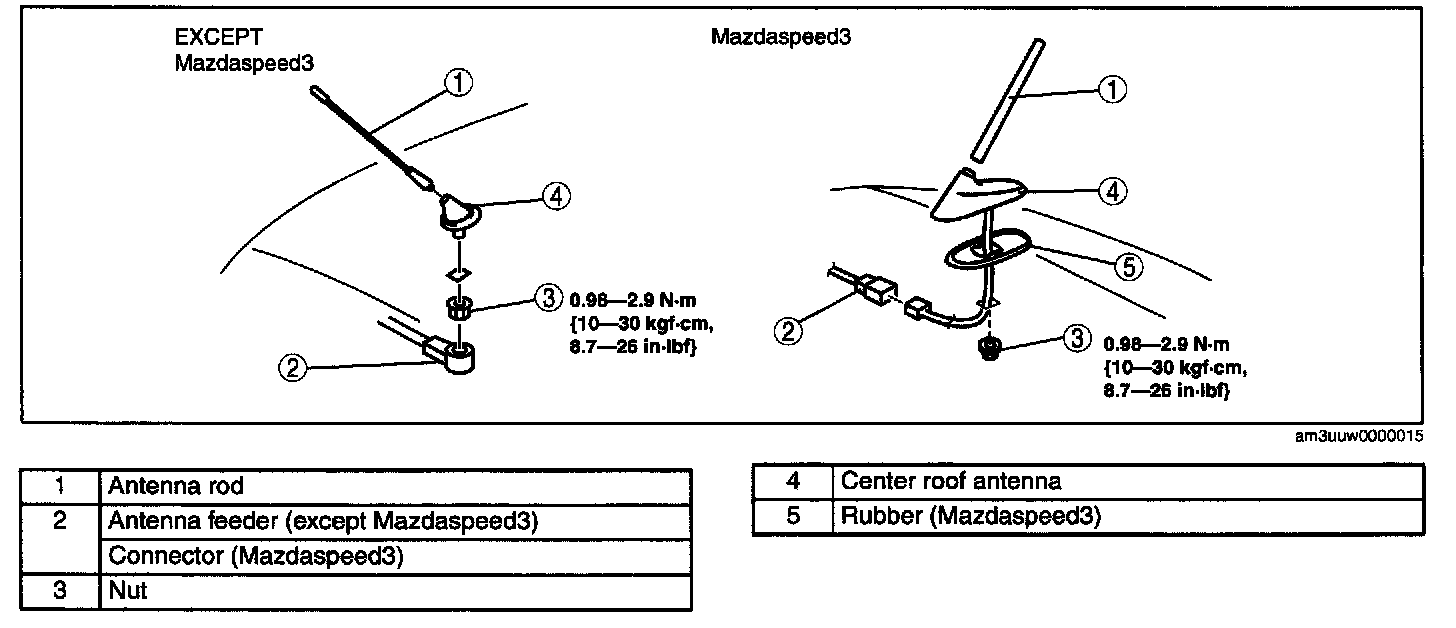

CENTER ROOF ANTENNA REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Sunroof seaming welt (Vehicles with sunroof)
2. Console (4 door)
3. A-pillar trim
4. Upper anchor of the front seat belt
5. Front scuff plate
6. Rear scuff plate inner
7. B-pillar lower trim
8. B-pillar upper trim
9. Rear seat
10. Tire house trim
11. Trunk side upper trim (5 door)
12. C-pillar trim
13. Map light
14. Sunvisor
15. Assist handle
16. Headliner

3. Partially peel back the headliner.




4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. After installation, verify that the rubber of the center roof antenna is installed to the roof panel with no space between them.
