Foreword

FOREWORD [FN4A-EL]

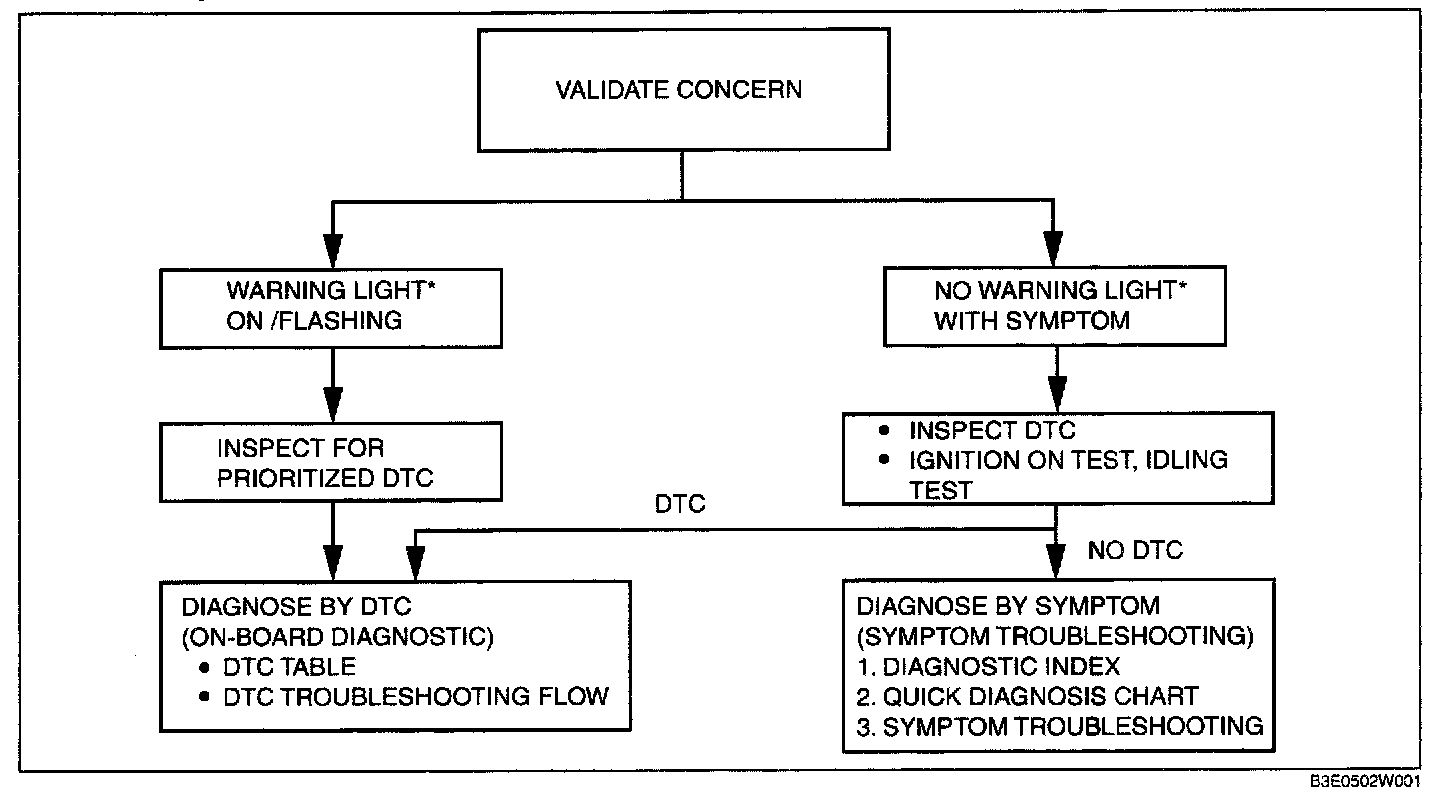

^ When the customer reports a vehicle malfunction, inspect the malfunction indicator lamp (MIL), AT warning light indication, and PCM memory for diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart.
- If a DTC exists, diagnose the applicable DTC. (See DTC TABLE [FN4A-EL].) Diagnostic Trouble Code Descriptions
- If no DTC exists, the MIL does not illuminate, and AT warning light does not illuminate. Diagnose the applicable symptom troubleshooting. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].) Symptom Troubleshooting Item Table





*: Malfunction indicator lamp (MIL), AT warning light
