Windshield Washer Hose

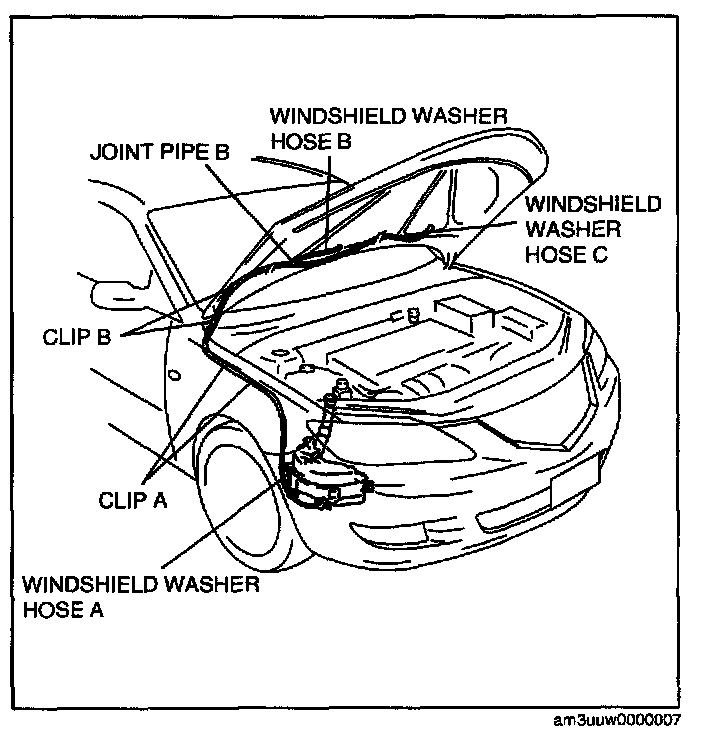

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATIONExcept Mazdaspeed3
1. Remove the hood insulator.
2. Slightly bend back the mudguard.
3. Disconnect joint pipe A.
4. Remove windshield washer hose A from clips A.
5. Remove clips B.
6. Disconnect windshield washer hose B from the washer nozzle.
7. Disconnect windshield washer hose C from the washer nozzle.
8. Disconnect joint pipe B, then remove windshield washer hose A, B and C.
9. Install in the reverse order removal.

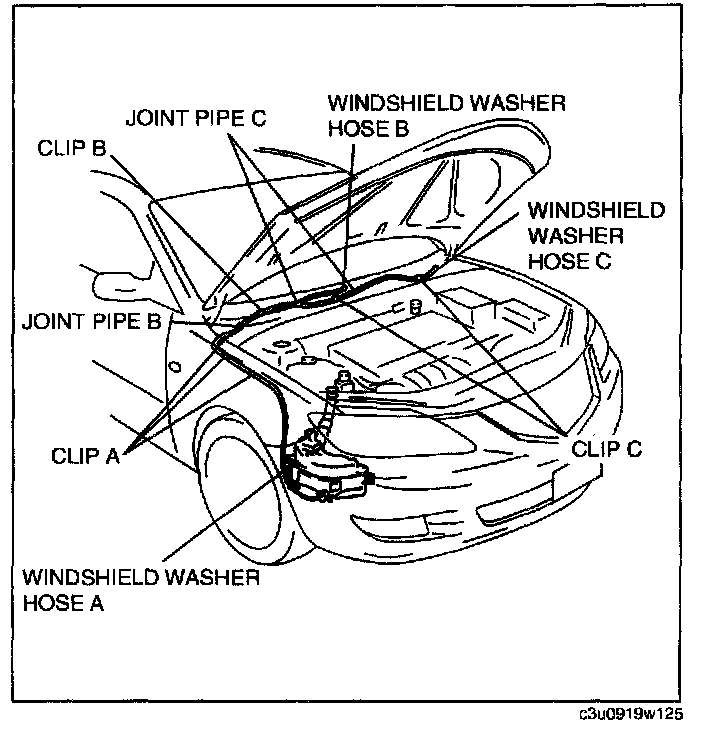

Mazdaspeed3
1. Remove the windshield wiper arm and blade
2. Remove the cowl grille
3. Disconnect windshield washer hose A from the washer tank.
4. Remove the windshield washer hose A from clips A.
5. Remove the joint pipe B.
6. Remove the clip B.
7. Remove the joint pipes C.
8. Remove the clips C.
9. Disconnect windshield washer hose B from the washer nozzle.
10. Disconnect windshield washer hose C from the washer nozzle.
11. Disconnect joint pipe B, then remove windshield washer hose A, B and C.
12. Install in the reverse order of removal.
