PID/Data Monitor Inspection

PID/DATA MONITOR INSPECTION [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)]

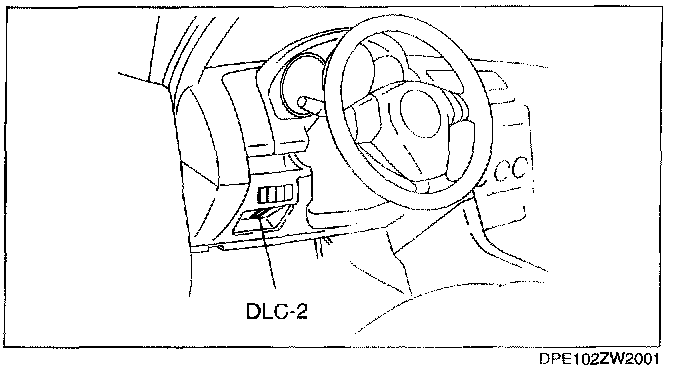

1. Connect the WDS or equivalent to the DLC-2.




2. Display the PID/data monitor items.
- Verify a displayed item according to the PID/data monitor table.

3. Disconnect the WDS or equivalent.
