Global Positioning System Antenna: Service and Repair

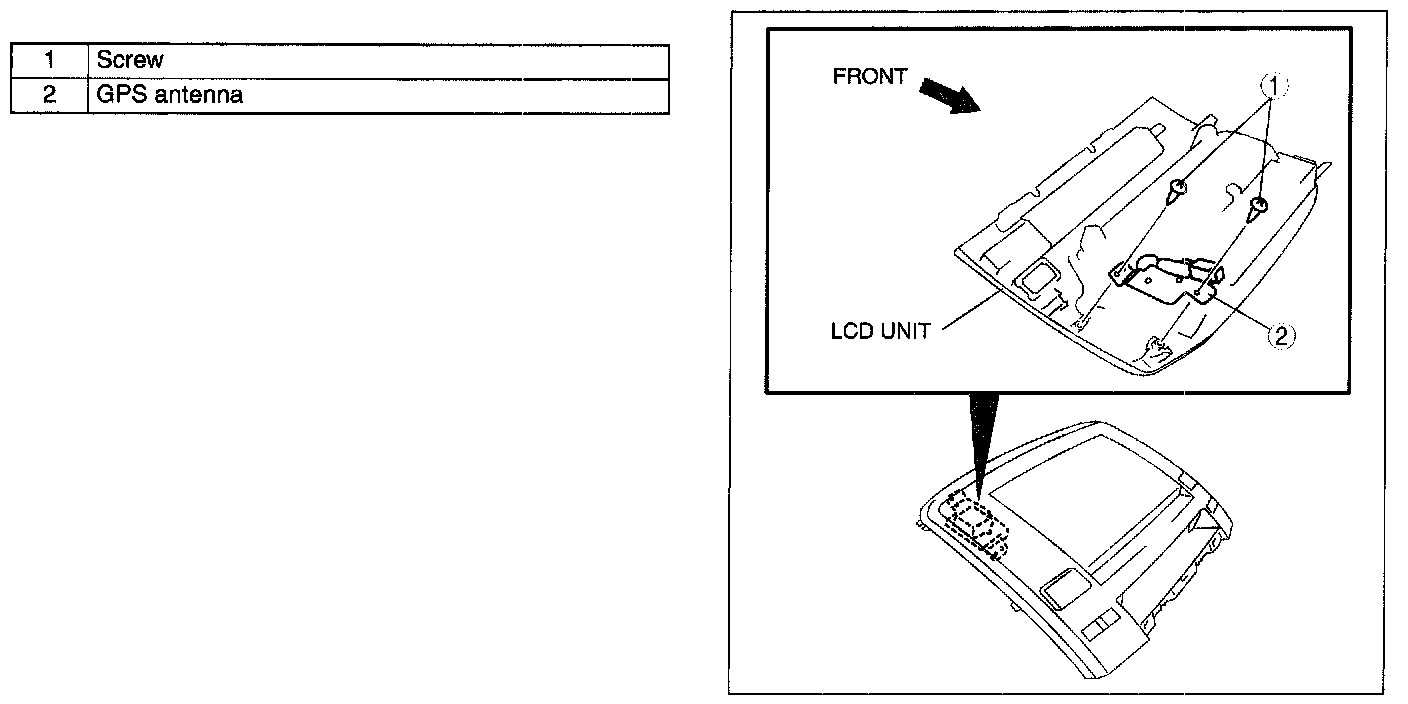

GPS ANTENNA REMOVAL/INSTALLATION 1.
Remove the battery cover.
2.
Disconnect the negative battery cable.
3.
Remove the side wall.
4.
Remove the front console.
5.
Remove the center panel unit.
6.
Remove the LCD unit.
7.
Remove in the order indicated in the above table.
8.
Install in the reverse order of removal.
